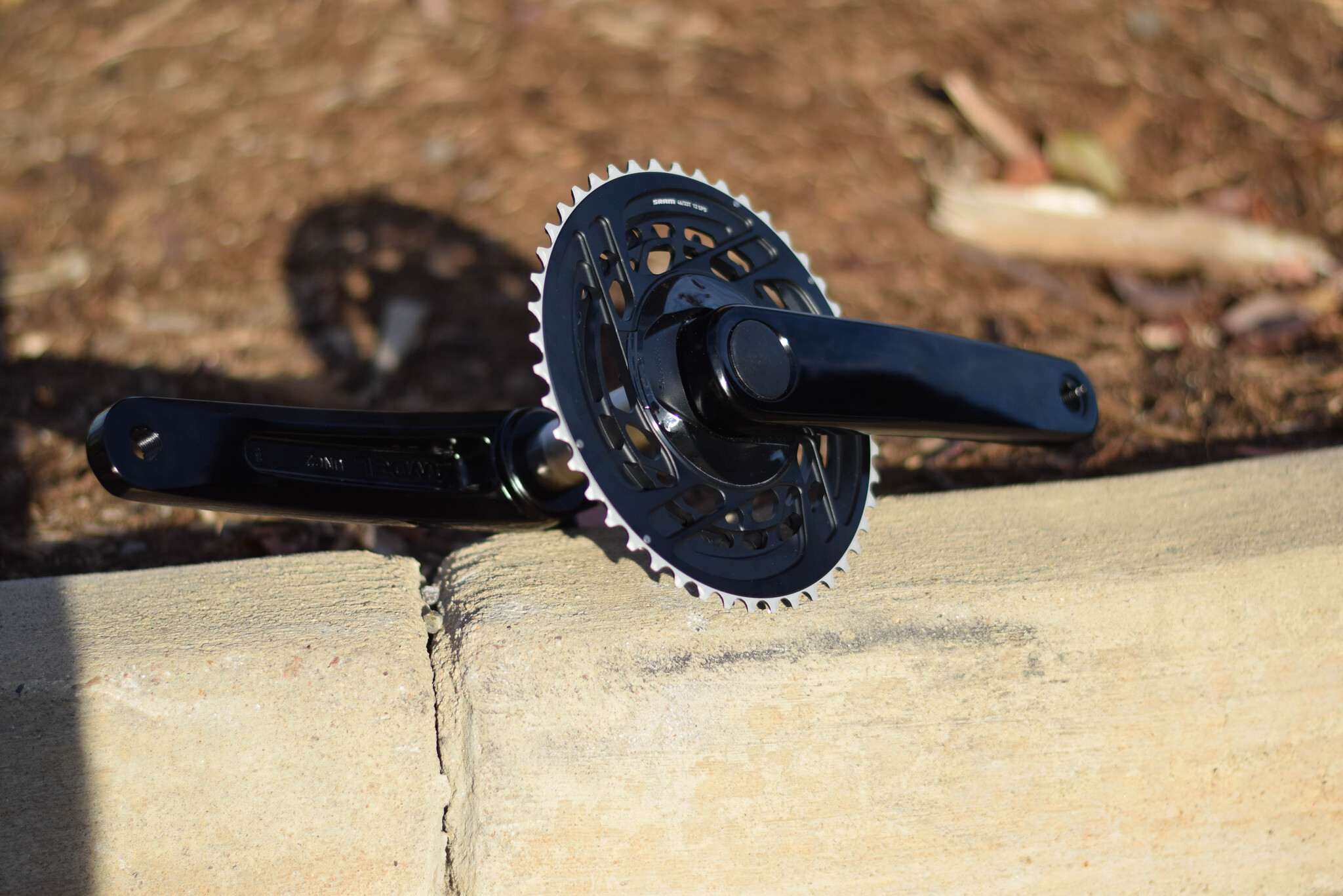

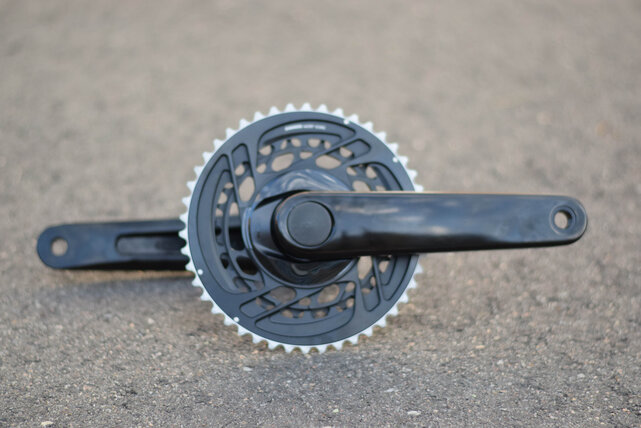

The Clydesdale Road Bike cranks are the best option for a road or gravel bike crank for a shorter rider. These cranks are super versatile and cross compatible with all drivetrains. They feature a sleak glossy black finish and DUB spindle with SRAM 8-bolt direct mount system. Superior stiffness means excellent power transfer and durability.
Specs:
- 29mm spindle (DUB) *bottom bracket not included
- 8-bolt direct mount
- Chainstay clearance: 131mm
- Q-factor: 159mm
- Chainline: 43.5mm
Compatibility
- Sram 12 speed using Sram Force and Red Chainring kits. Not compatible with Sram Rival Spiders. Only the Sram Force and Sram Red complete Chainring kits and power meters are compatible.
- Shimano 12 speed using the optional 110bcd 5-bolt spider and Praxis Buzz Chainrings
- Shimano 9,10, or 11 speed using the optional 110bcd 5-bolt spider and any 110bcd 5-bolt chainrings
- Sram 10 or 11 speed using the optional 110bcd 5-bolt spider and any 110bcd 5-bolt chainrings
- Campagnolo 10,11,or 12 speed using the optional 110bcd 5-bolt spider and Praxis Buzz Chainrings
- Single chainring using Wolf tooth or Sram 8-bolt direct mount chainrings
- Sram DUB bottom brackets that fit your bike *bottom bracket not included. Shop bottom brackets here.
- Spider mounting bolts not included with crank arms. Spider Mounting bolts are included when adding a spider or chainring to the order.
Power Meters
- Compatible with Sram or QUARQ power meters
Lengths
- 140mm crank length
- 155mm crank length
