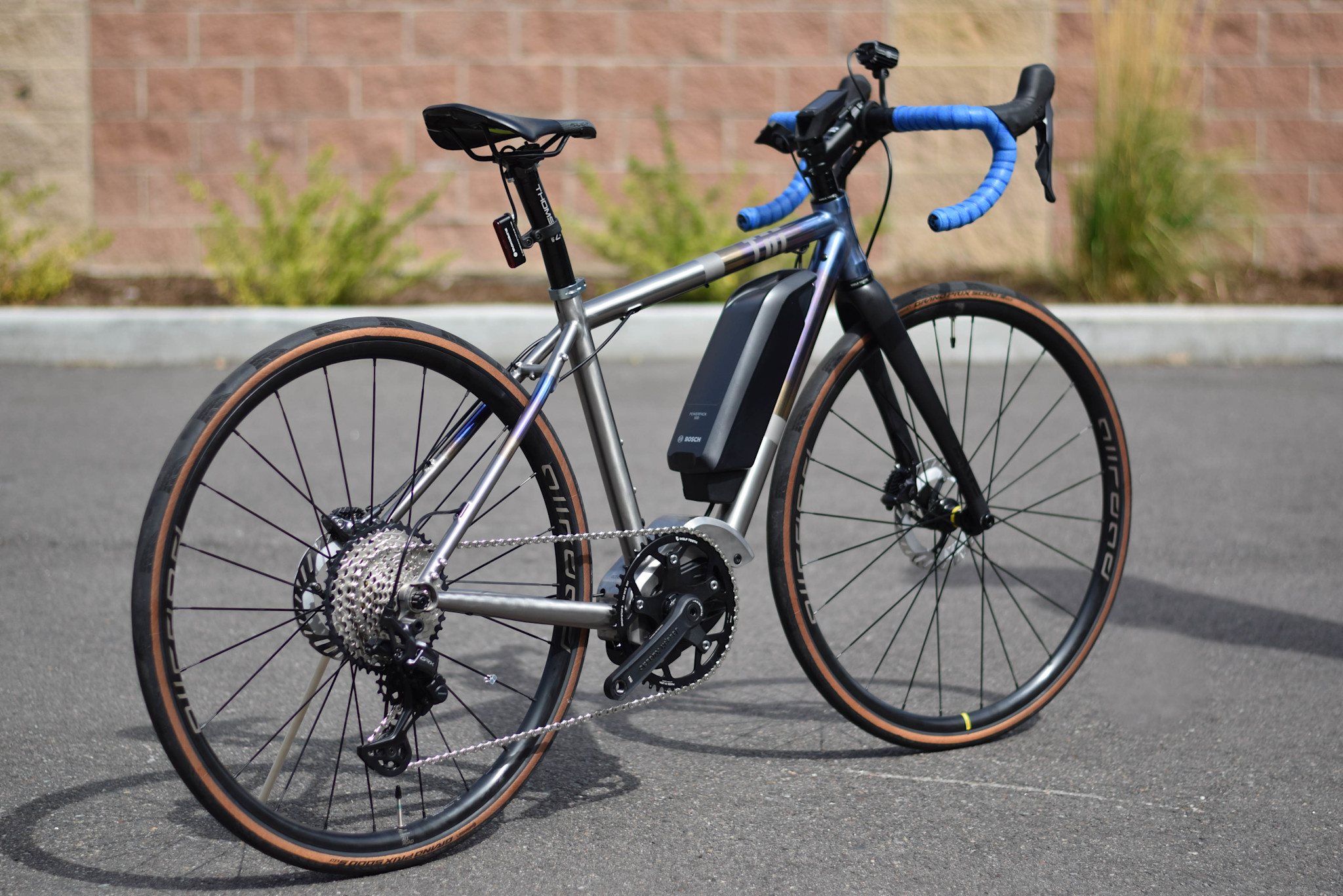

Tui G1e XS E-bike - Titanium Gravel E-bike - Shimano EP6 Motor
- In Stock Items Will ship in 2-3 business days
- Special Order Items will be ordered for you and shipped when available
- More information? Contact us about this product
- Add to comparison list
The Tui G1e XS performance gravel E-bikes are light weight and comfortable to ride. We customize the fit to your measurements so you will have a great comfortable upright riding position. Fits riders from 4'10" to 5'2". This electric road bike is optimized for smaller riders, with low standover height, 160mm cranks, no toe overlap, and 650b wheels. You can order this titanium e-bike with road or gravel tires up to 44mm wide. The bike is designed to fit 650x44b gravel tires, and it also works great with 650x32b road tires or even 700x28c road tires.
When other bike manufacturers make an ebike for short people, they simply scale a bigger frame down by shortening the top tube, seat tube, and head tube. This is not enough to truly design an ebike for small riders. Making a high-performing, comfortable bike for a small rider involves making everything on the bike proportional, not just the frame. All Tui Titanium bikes are fully proportional for smaller riders including the frame, cranks, wheels, handlebars, stem, and saddle.
| Available Sizes | XS - 46cm |
| Rider Weight Limit | 250lbs |
| Frame Material | Titanium (Ti-3Al-2.5V) |
| E-bike Motor | Shimano EP6 |
| E-bike Display | Shimano SC-EM800 E-bike Cycle Computer |
| Max Power | 600watts |
| Max Torque | 85nm |
| Max Speed | 20mph - Or 28mph upon request |
| Front Axle Spec | 15x100mm |
| Rear Axle Spec | 12x142mm |
| Tire Clearance | 650b x 44mm or 700x30mm w/o fenders |
| Fork | ENVE All Road Disc |
| Drivetrain | Sram Apex 1x11 speed mechanical |
| Cassette and Chainrings | |
| Handlebar Type | Riser Bar - custom rise per rider size |
| Wheel size | 29 inch |
| Tires | |
| Wheels | |
| Crank Length | custom |
| Stem Length | custom |
| Bottle Cage Mounts | 3 |
| Fender Mounts | Front and Rear |
| Rack mounts | Front and Rear |
