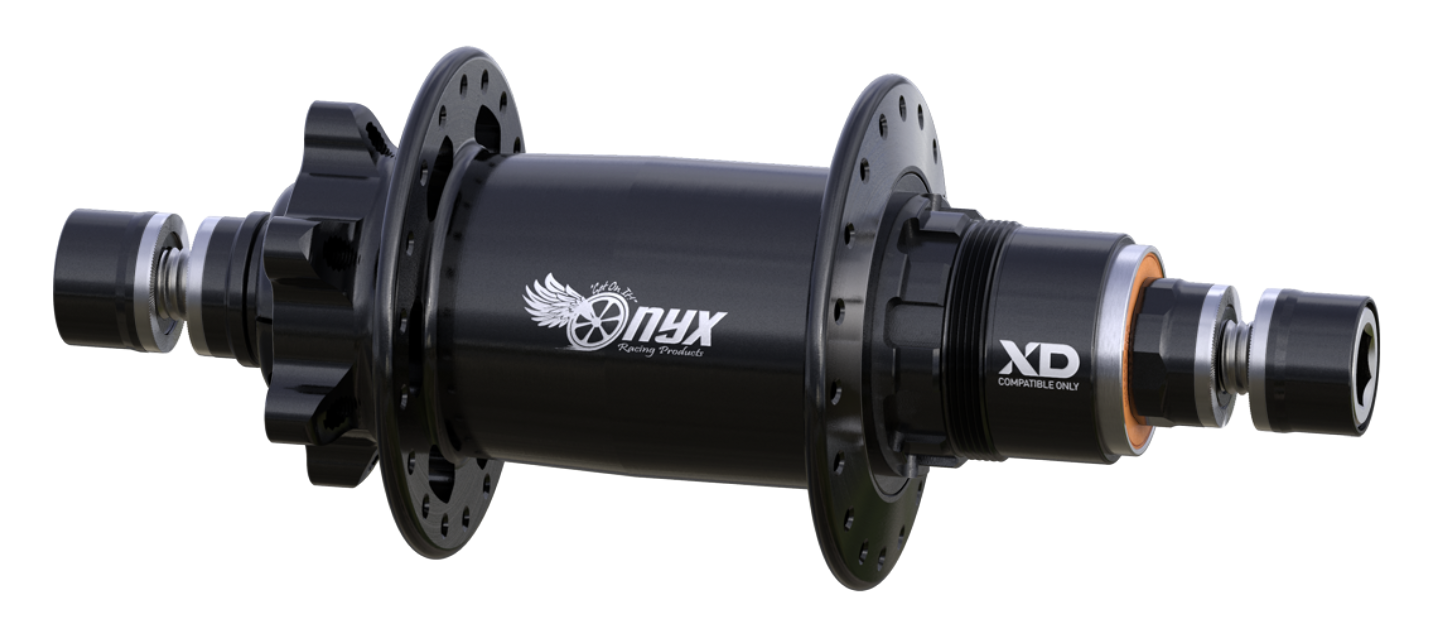

Onyx MTB BOOST ISO XD-141/10mm Bolt-on Rear Hub
$525.00 USD
Onyx
Onyx MTB BOOST ISO XD-141/10mm Bolt-on Rear Hub
$525.00
Excl. tax
A - Hub Center To Flange Center, Non-Drive Side (mm): 35.7
B - Hub Center To Flange Center, Drive Side (mm): 22.9
C - Axle Width (mm): 141
Spoke Hole Circle Diameter, Drive Side (mm): 60.0
Spoke Hole Circle Diameter, Non-Drive Side (mm): 60.0
- In Stock Items Will ship in 2-3 business days
- Special Order Items will be ordered for you and shipped when available
- More information? Contact us about this product
- Add to comparison list
Product description
A - Hub Center To Flange Center, Non-Drive Side (mm): 35.7
B - Hub Center To Flange Center, Drive Side (mm): 22.9
C - Axle Width (mm): 141
Spoke Hole Circle Diameter, Drive Side (mm): 60.0
Spoke Hole Circle Diameter, Non-Drive Side (mm): 60.0
Spoke Hole Counts Available: 28/32/36
Specs
Weight: 19.0 oz / 539 g
Dimensions - Approximate for Shipping: 9.5 × 4.5 × 4 in
Hub Type: Rear
Hub Spacing: Boost
Axle Width - mm: 141
Axle Diameter - mm: 10
Spoke Count: 28, 32, 36
Attach Style: Bolt-on
Hub Shell Style: Solid
Bolts: Titanium
Disc Brake Rotor Mount: ISO 6-Bolt Flange

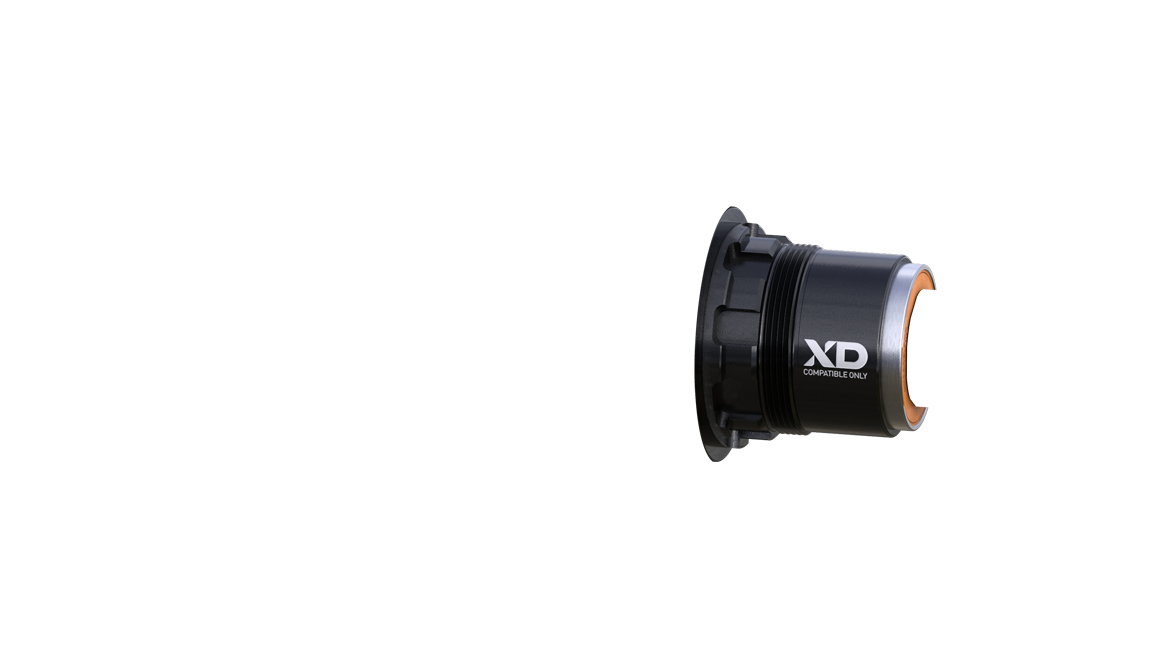

Driver Style: SRAM XD
Spoke Tension - Max kgf: 120
Product Line: Classic
Product information
| Brand | Onyx |
| Article code | 5395 |
| SKU | 98502 |
