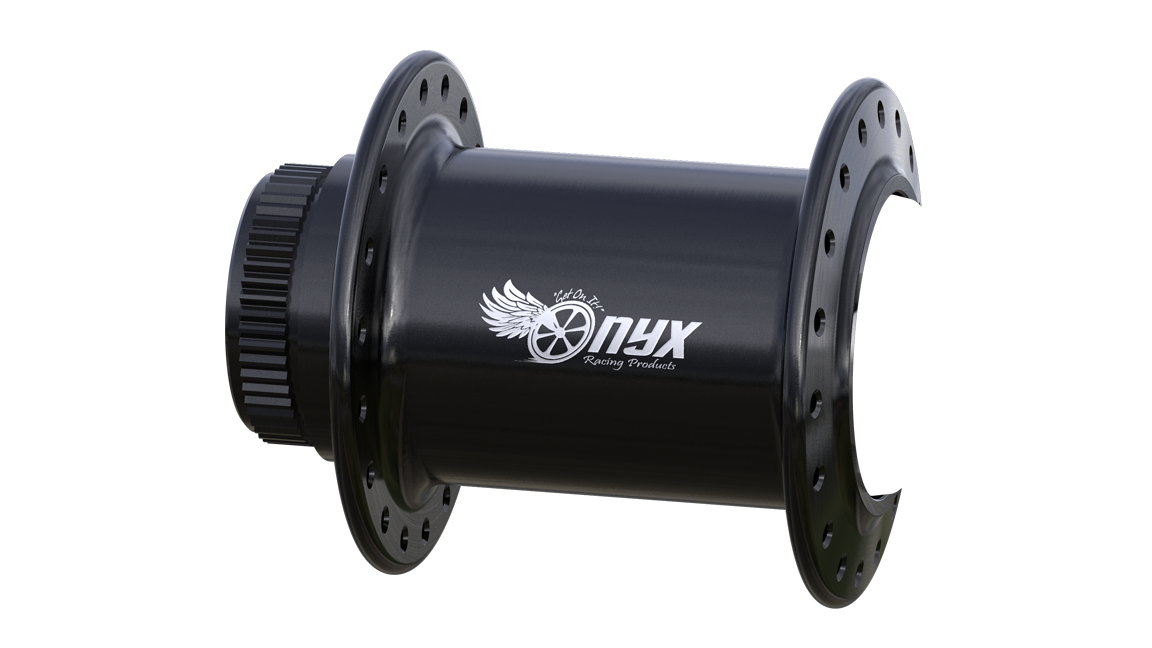

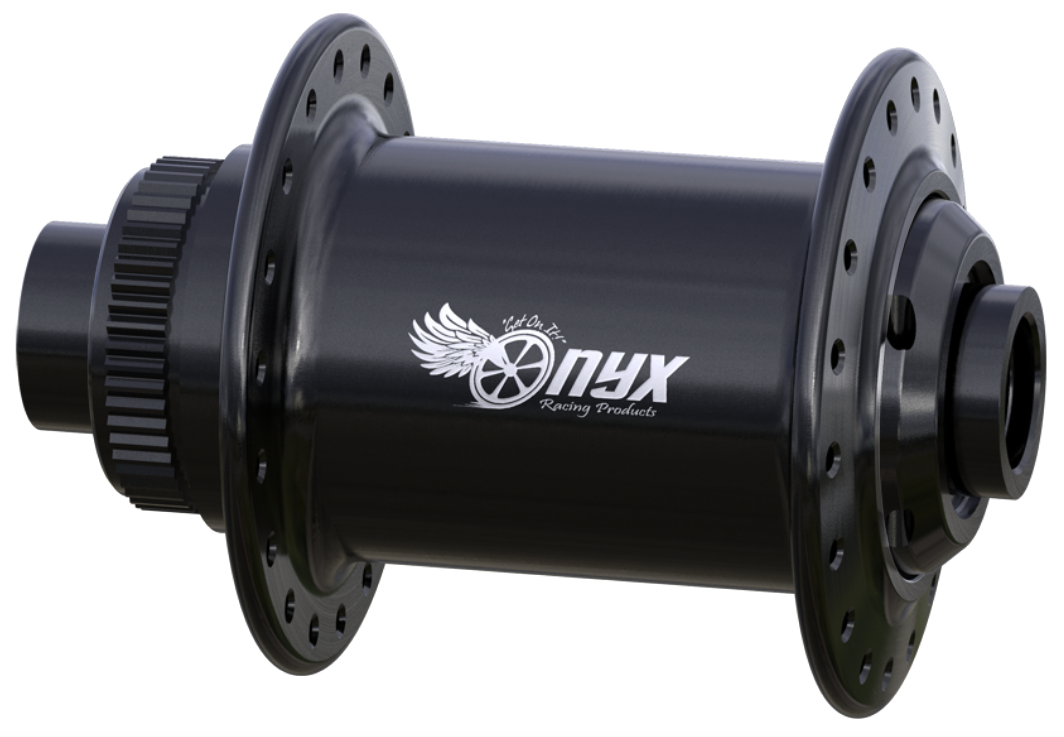

Onyx MTB CL-100/15mm Thru-bolt Front Hub, 28
$230.00 USD
Onyx
Onyx MTB CL-100/15mm Thru-bolt Front Hub, 28
$230.00
Excl. tax
A - Hub Center To Flange Center, Non-Drive Side (mm): 21.2
B - Hub Center To Flange Center, Drive Side (mm): 35.6
C - Axle Width (mm): 100
Spoke Hole Circle Diameter, Drive Side (mm): 57
Spoke Hole Circle Diameter, Non-Drive Side (mm): 57
- In Stock Items Will ship in 2-3 business days
- Special Order Items will be ordered for you and shipped when available
- More information? Contact us about this product
- Add to comparison list
Product description
SKU: 086716
A - Hub Center To Flange Center, Non-Drive Side (mm): 21.2
B - Hub Center To Flange Center, Drive Side (mm): 35.6
C - Axle Width (mm): 100
Spoke Hole Circle Diameter, Drive Side (mm): 57
Spoke Hole Circle Diameter, Non-Drive Side (mm): 57
Spoke Hole Counts Available: 28
Specs
Weight: 7.6 oz / 215 g
Dimensions - Approximate for Shipping: 9.5 × 4.5 × 4 in
Hub Type: Front
Axle Width - mm: 100
Axle Diameter - mm: 15
Spoke Count: 28
Attach Style: Thru-bolt
Hub Shell Style: Solid
Disc Brake Rotor Mount: Shimano Center Lock
Spoke Tension - Max kgf: 120
Product Line: Classic
Product information
| Brand | Onyx |
| Article code | 5761 |
| SKU | 086716-28 |
