![SKU: 090742](https://onyxrp.com/wp-content/uploads/090742-ABC-dwg-1.jpg)

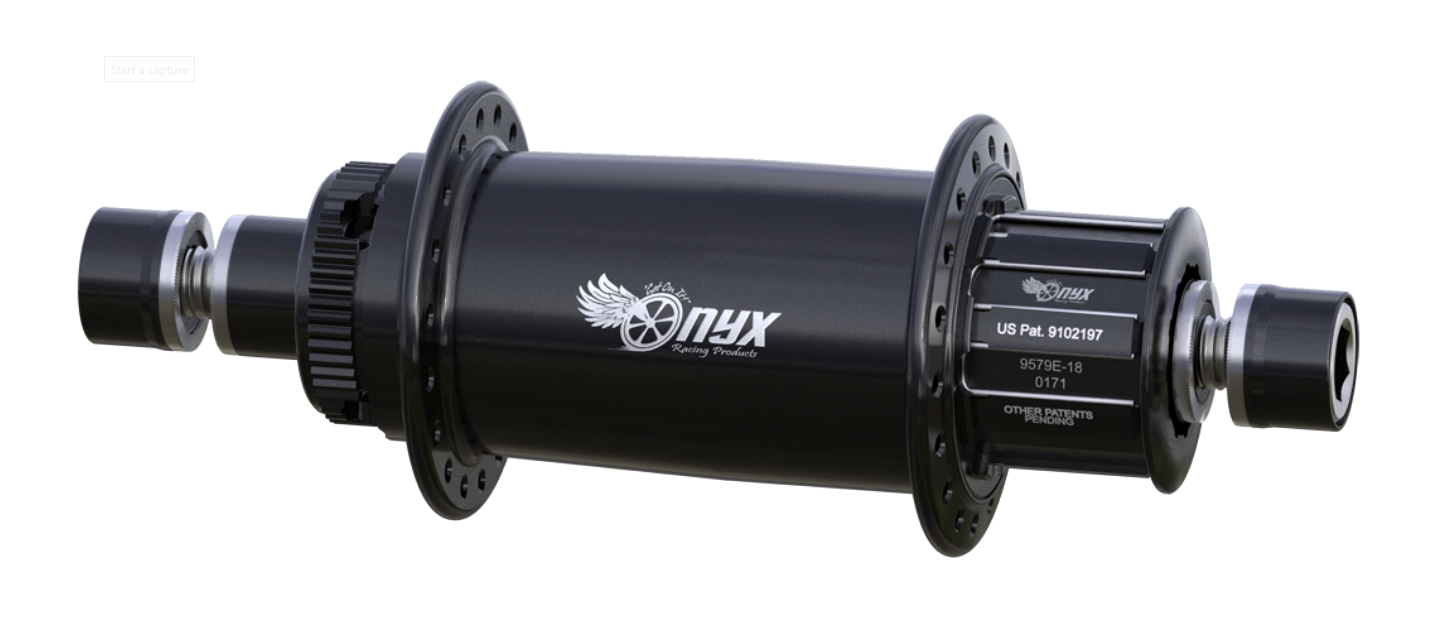

SKU: 090742
A - Hub Center To Flange Center, Non-Drive Side (mm): 33.9
B - Hub Center To Flange Center, Drive Side (mm): 34.92
C - Axle Width (mm): 135
Spoke Hole Circle Diameter, Drive Side (mm): 50
Spoke Hole Circle Diameter, Non-Drive Side (mm): 50
Spoke Hole Counts Available: 36
Specs
Weight: 18.3 oz / 519 g
Dimensions - Approximate for Shipping: 9.5 × 4.5 × 4 in
Hub Type: Rear
Axle Width - mm: 135
Axle Diameter - mm: 10
Spoke Count: 36
Attach Style: Bolt-on
Hub Shell Style: Solid
Bolts: Titanium
Disc Brake Rotor Mount: Shimano Center Lock
Driver Style: Shimano Hyperglide Single Speed
Spoke Tension - Max kgf: 120
Product Line: Classic
