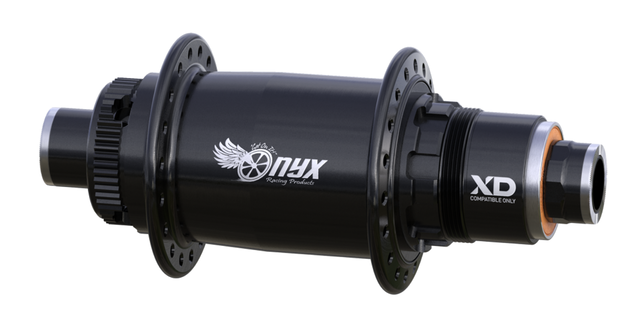

Onyx MTB CL XD-135/12mm Thru-bolt Rear Hub
$500.00 USD
Onyx
Onyx MTB CL XD-135/12mm Thru-bolt Rear Hub
$500.00
Excl. tax
A - Hub Center To Flange Center, Non-Drive Side (mm): 33.9
B - Hub Center To Flange Center, Drive Side (mm): 19.92
C - Axle Width (mm): 135
Spoke Hole Circle Diameter, Drive Side (mm): 50
Spoke Hole Circle Diameter, Non-Drive Side (mm): 50
- In Stock Items Will ship in 2-3 business days
- Special Order Items will be ordered for you and shipped when available
- More information? Contact us about this product
- Add to comparison list
Product description
SKU: 086733
A - Hub Center To Flange Center, Non-Drive Side (mm): 33.9
B - Hub Center To Flange Center, Drive Side (mm): 19.92
C - Axle Width (mm): 135
Spoke Hole Circle Diameter, Drive Side (mm): 50
Spoke Hole Circle Diameter, Non-Drive Side (mm): 50
Spoke Hole Counts Available: 24/28/32/36
Specs
Weight: 15.6 oz / 442 g
Dimensions - Approximate for Shipping: 9.5 × 4.5 × 4 in
Hub Type: Rear
Axle Width - mm: 135
Axle Diameter - mm: 12
Spoke Count: 24, 28, 32, 36
Attach Style: Thru-bolt
Hub Shell Style: Solid
Disc Brake Rotor Mount: Shimano Center Lock

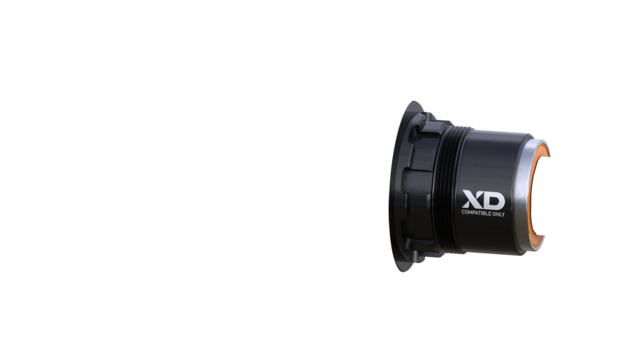

Driver Style: SRAM XD
Spoke Tension - Max kgf: 120
Product Line: Classic
Product information
| Brand | Onyx |
| Article code | 5349 |
| SKU | 86733 |
