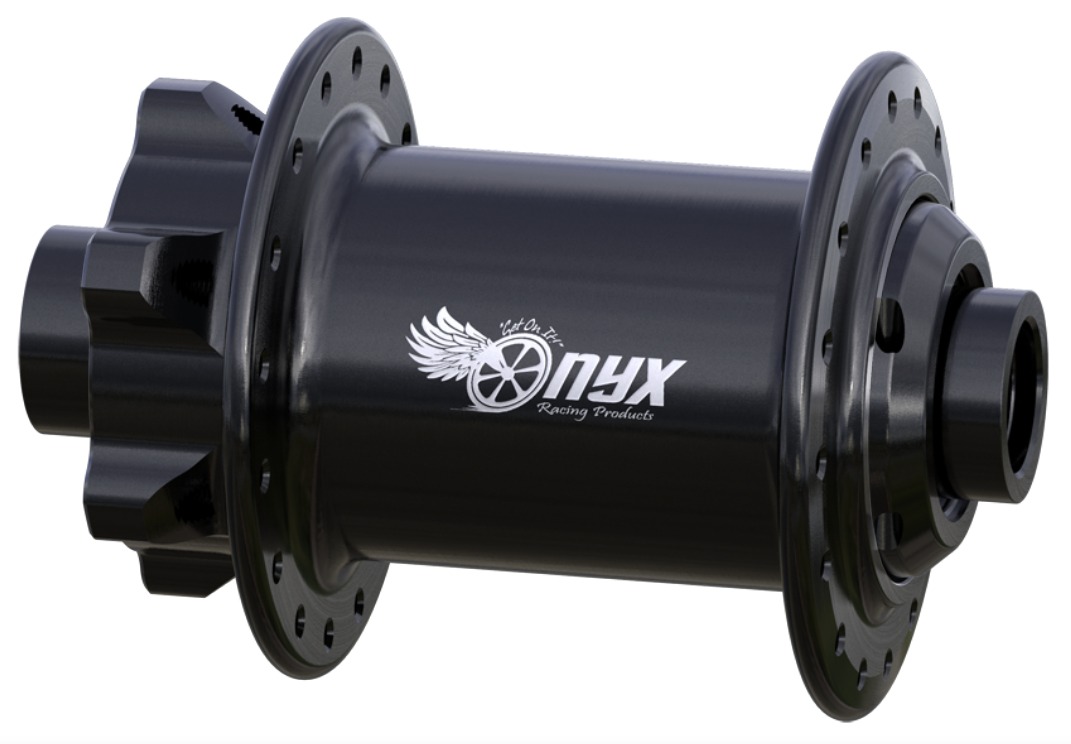

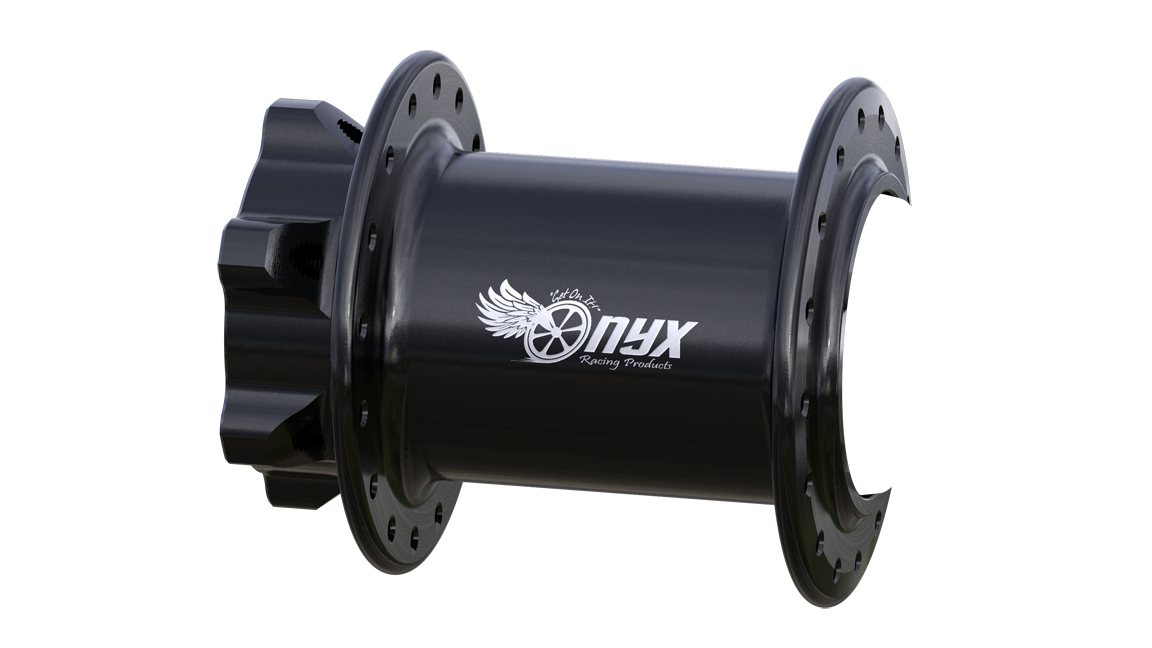

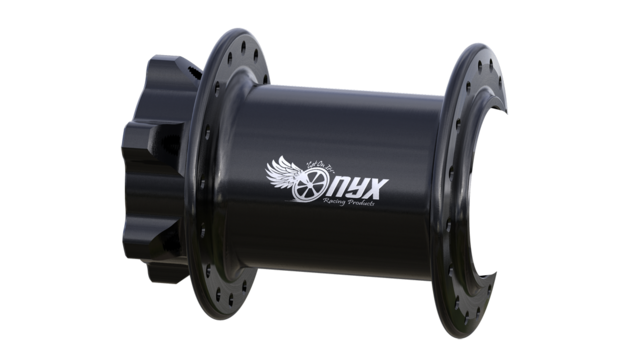

Onyx MTB ISO-100/15mm Thru-bolt Front Hub
$230.00 USD
Onyx
Onyx MTB ISO-100/15mm Thru-bolt Front Hub
$230.00
Excl. tax
A - Hub Center To Flange Center, Non-Drive Side (mm): 21
B - Hub Center To Flange Center, Drive Side (mm): 34.3
C - Axle Width (mm): 100
Spoke Hole Circle Diameter, Drive Side (mm): 57
Spoke Hole Circle Diameter, Non-Drive Side (mm): 57
- In Stock Items Will ship in 2-3 business days
- Special Order Items will be ordered for you and shipped when available
- More information? Contact us about this product
- Add to comparison list
Product description
SKU: 041517
A - Hub Center To Flange Center, Non-Drive Side (mm): 21
B - Hub Center To Flange Center, Drive Side (mm): 34.3
C - Axle Width (mm): 100
Spoke Hole Circle Diameter, Drive Side (mm): 57
Spoke Hole Circle Diameter, Non-Drive Side (mm): 57
Spoke Hole Counts Available: 20/24/28/32/36
Specs
Weight: 7.5 oz / 213 g
Dimensions - Approximate for Shipping: 9.5 × 4.5 × 4 in
Hub Type: Front
Axle Width - mm: 100
Axle Diameter - mm: 15
Spoke Count: 28, 32, 36
Attach Style: Thru-bolt
Hub Shell Style: Solid
Disc Brake Rotor Mount: ISO 6-Bolt Flange
Spoke Tension - Max kgf: 120
Product Line: Classic
Product information
| Brand | Onyx |
| Article code | 5190 |
| SKU | 41517 |
