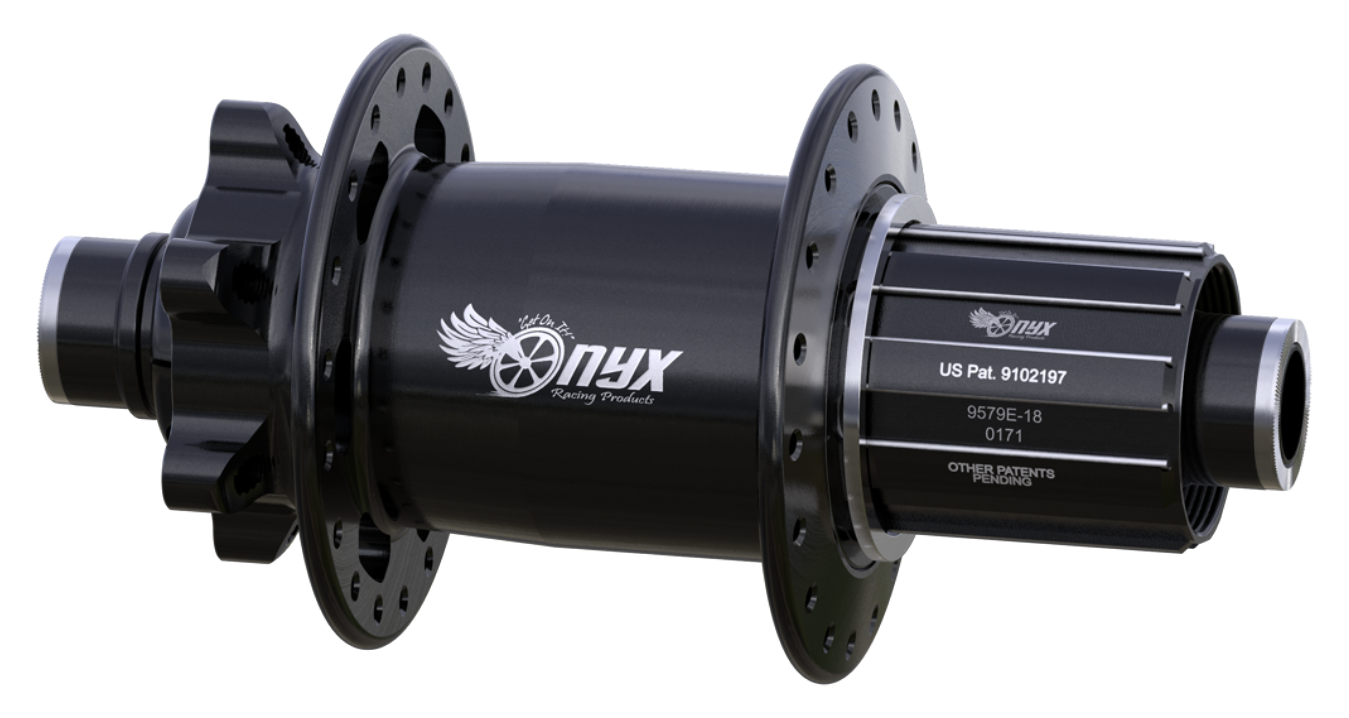

Onyx MTB ISO HG-142/12mm Thru-bolt Rear Hub ,28
$500.00 USD
Onyx
Onyx MTB ISO HG-142/12mm Thru-bolt Rear Hub ,28
$500.00
Excl. tax
A - Hub Center To Flange Center, Non-Drive Side (mm): 32.7
B - Hub Center To Flange Center, Drive Side (mm): 19.92
C - Axle Width (mm): 142
Spoke Hole Circle Diameter, Drive Side (mm): 60
Spoke Hole Circle Diameter, Non-Drive Side (mm): 60
- In Stock Items Will ship in 2-3 business days
- Special Order Items will be ordered for you and shipped when available
- More information? Contact us about this product
- Add to comparison list
Product description
SKU: 041134
A - Hub Center To Flange Center, Non-Drive Side (mm): 32.7
B - Hub Center To Flange Center, Drive Side (mm): 19.92
C - Axle Width (mm): 142
Spoke Hole Circle Diameter, Drive Side (mm): 60
Spoke Hole Circle Diameter, Non-Drive Side (mm): 60
Spoke Hole Counts Available: 28
Specs
Weight: 17.3 oz / 490 g
Dimensions - Approximate for Shipping: 9.5 × 4.5 × 4 in
Hub Type: Rear
Axle Width - mm: 142
Axle Diameter - mm: 12
Spoke Count: 28
Attach Style: Thru-bolt
Hub Shell Style: Solid
Disc Brake Rotor Mount: ISO 6-Bolt Flange

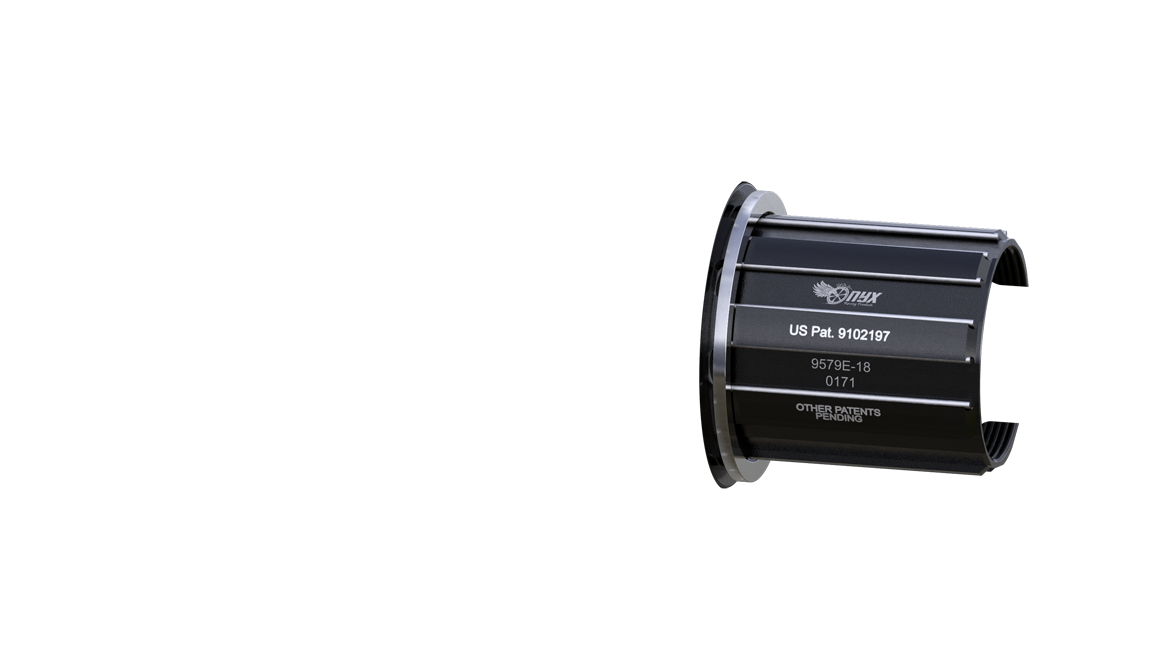

Driver Style: Shimano Hyperglide
Spoke Tension - Max kgf: 120
Product Line: Classic
Product information
| Brand | Onyx |
| Article code | 5416 |
| SKU | 041134-28 |
