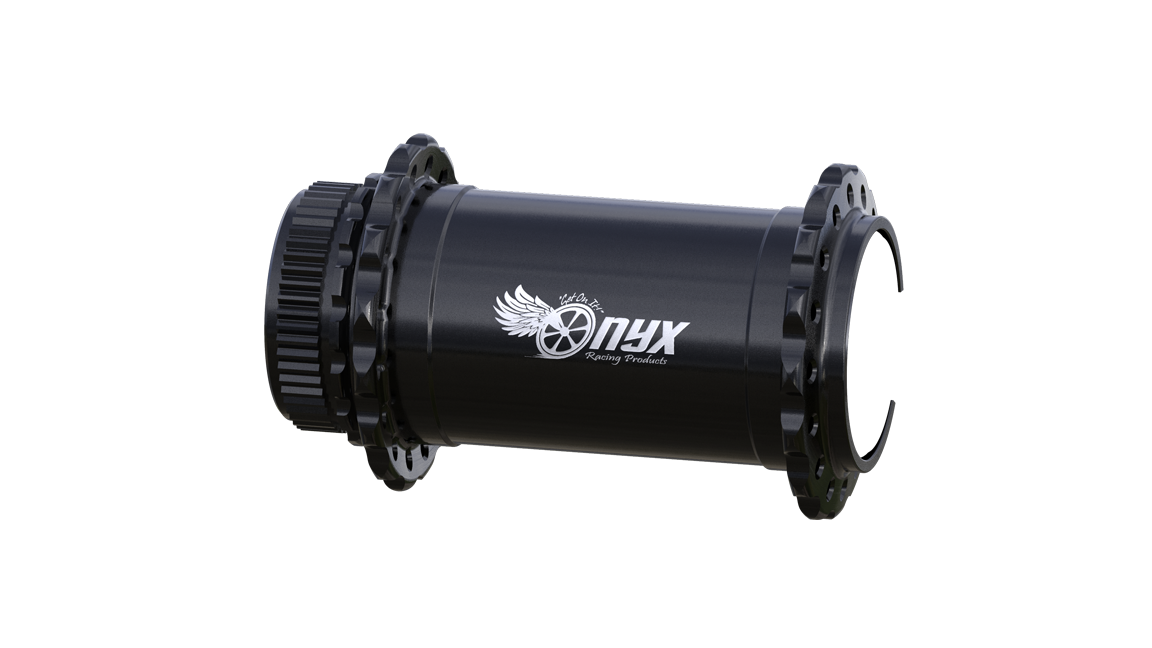

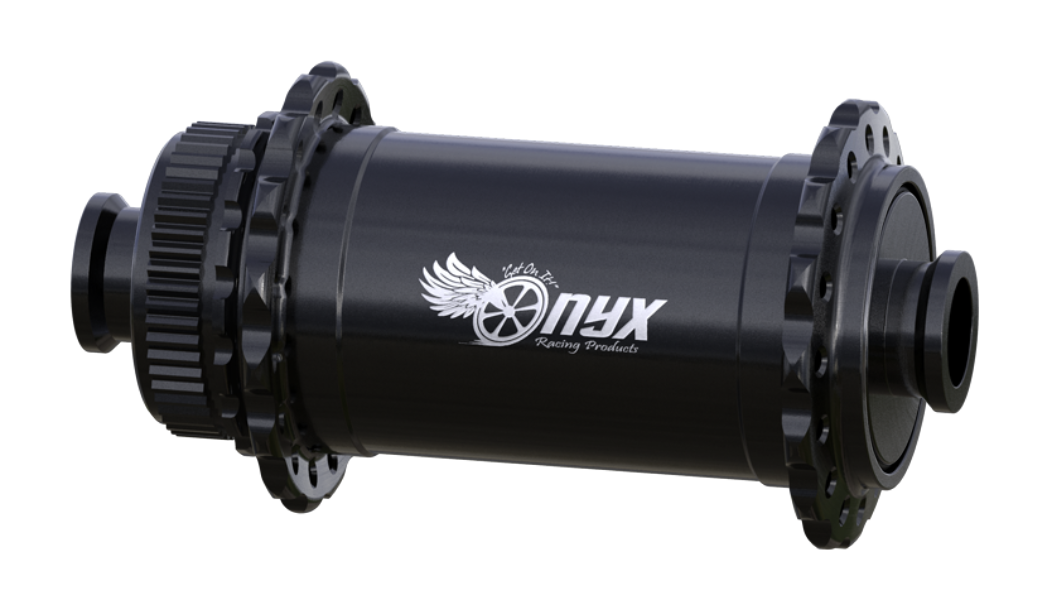

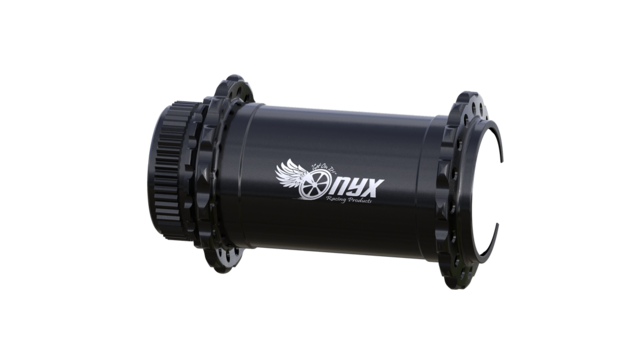

Onyx Vesper MTB CL 100/12 Thru-bolt Front Hub, 24
$225.00 USD
Onyx
Onyx Vesper MTB CL 100/12 Thru-bolt Front Hub, 24
$225.00
Excl. tax
A - Hub Center To Flange Center, Non-Drive Side (mm): 22.0
B - Hub Center To Flange Center, Drive Side (mm): 37.0
C - Axle Width (mm): 100
Spoke Hole Circle Diameter, Drive Side (mm): 41.6
Spoke Hole Circle Diameter, Non-Drive Side (mm): 41.6
- In Stock Items Will ship in 2-3 business days
- Special Order Items will be ordered for you and shipped when available
- More information? Contact us about this product
- Add to comparison list
Product description
Steel bearings standard. Hybrid ceramic bearing option available.
A - Hub Center To Flange Center, Non-Drive Side (mm): 22.0
B - Hub Center To Flange Center, Drive Side (mm): 37.0
C - Axle Width (mm): 100
Spoke Hole Circle Diameter, Drive Side (mm): 41.6
Spoke Hole Circle Diameter, Non-Drive Side (mm): 41.6
Spoke Hole Counts Available: 24
Specs
Weight: 5.5 oz / 156 g
Dimensions - Approximate for Shipping: 9.5 × 4.5 × 4 in
Hub Type: Front
Axle Width - mm: 100
Axle Diameter - mm: 12
Spoke Count: 24
Attach Style: Thru-bolt
Hub Shell Style: Solid
Disc Brake Rotor Mount: Shimano Center Lock
Spoke Tension - Max kgf: 120
Product Line: Vesper
Product information
| Brand | Onyx |
| Article code | 5483 |
| SKU | 102651-24 |
