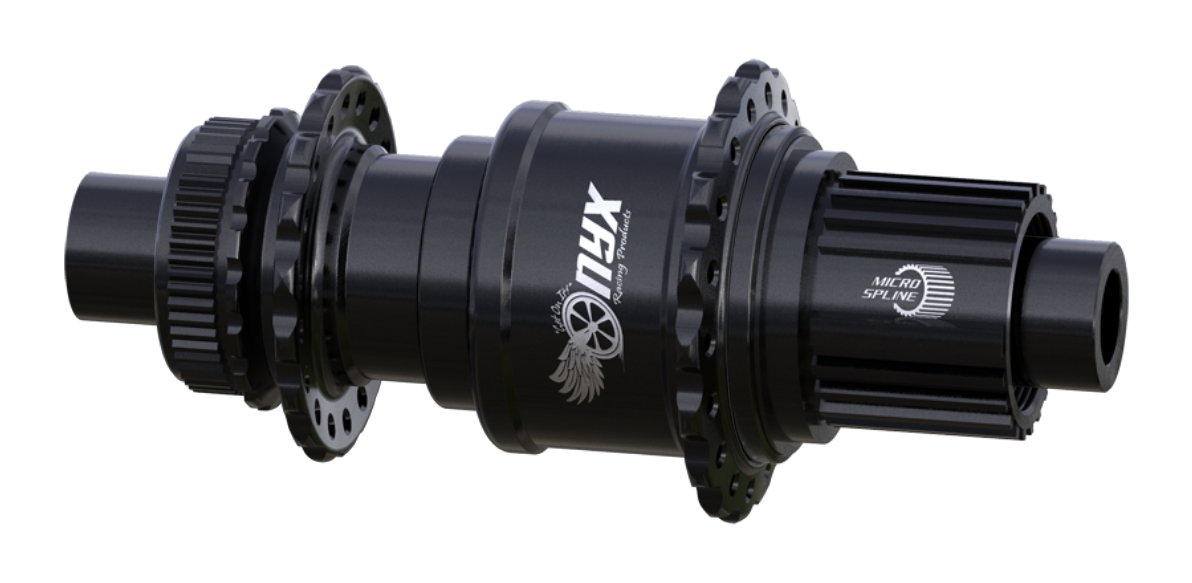

Onyx Vesper MTB CL MS 135/12 Thru-bolt Rear Hub, 28
$485.00 USD
Onyx
Onyx Vesper MTB CL MS 135/12 Thru-bolt Rear Hub, 28
$485.00
Excl. tax
A - Hub Center To Flange Center, Non-Drive Side (mm): 33.9
B - Hub Center To Flange Center, Drive Side (mm): 19.47
C - Axle Width (mm): 135
Spoke Hole Circle Diameter, Drive Side (mm): 50.0
Spoke Hole Circle Diameter, Non-Drive Side (mm): 42.0
- In Stock Items Will ship in 2-3 business days
- Special Order Items will be ordered for you and shipped when available
- More information? Contact us about this product
- Add to comparison list
Product description
A - Hub Center To Flange Center, Non-Drive Side (mm): 33.9
B - Hub Center To Flange Center, Drive Side (mm): 19.47
C - Axle Width (mm): 135
Spoke Hole Circle Diameter, Drive Side (mm): 50.0
Spoke Hole Circle Diameter, Non-Drive Side (mm): 42.0
Spoke Hole Counts Available: 28
Specs
Weight: 13.1 oz / 371 g
Dimensions - Approximate for Shipping: 9.5 × 4.5 × 4 in
Hub Type: Rear
Axle Width - mm: 135
Axle Diameter - mm: 12
Spoke Count: 28
Attach Style: Thru-bolt
Hub Shell Style: Solid
Disc Brake Rotor Mount: Shimano Center Lock
Driver Style: Shimano MICRO SPLINE
Spoke Tension - Max kgf: 120
Product Line: Vesper
Product information
| Brand | Onyx |
| Article code | 5607 |
| SKU | 102690-28 |
