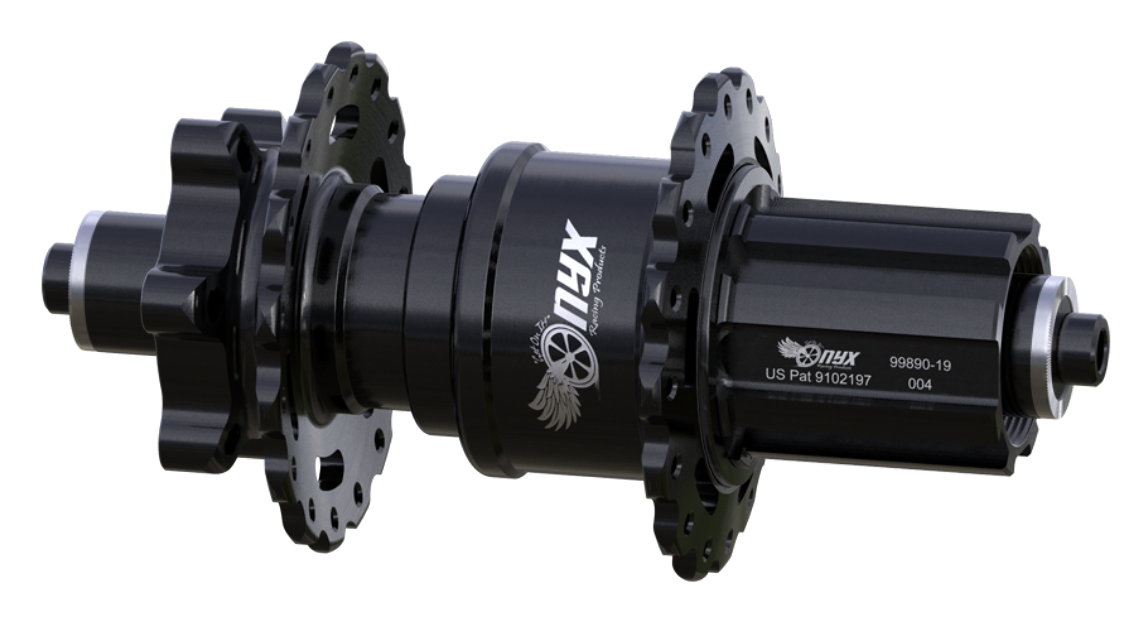

Onyx Vesper MTB ISO CAMPY 135/QR Rear Hub, 24
$485.00 USD
Onyx
Onyx Vesper MTB ISO CAMPY 135/QR Rear Hub, 24
$485.00
Excl. tax
Steel bearings standard. Hybrid ceramic bearing option
- In Stock Items Will ship in 2-3 business days
- Special Order Items will be ordered for you and shipped when available
- More information? Contact us about this product
- Add to comparison list
Product description
Steel bearings standard. Hybrid ceramic bearing option available.
Description and Drawings
| A - Hub Center To Flange Center, Non-Drive Side (mm) | 32.65 |
|---|---|
| B - Hub Center To Flange Center, Drive Side (mm) | 19.47 |
| C - Axle Width (mm) | 135 |
| Spoke Hole Circle Diameter, Drive Side (mm) | 60.0 |
| Spoke Hole Circle Diameter, Non-Drive Side (mm) | 60.0 |
| Spoke Hole Counts Available | 24/28/32 |
Specs
| Weight | 15.0 oz / 425 g |
|---|---|
| Dimensions - Approximate for Shipping | 9.5 × 4.5 × 4 in |
| Hub Type |
Rear |
| Axle Width - mm |
135 |
| Spoke Count |
24, 28, 32 |
| Attach Style |
Quick Release |
| Hub Shell Style |
Solid |
| Disc Brake Rotor Mount |
ISO 6-Bolt Flange |
| Driver Style |
Campagnolo Campy® |
| Spoke Tension - Max kgf |
120 |
| Product Line |
Vesper |
Onyx Vesper MTB ISO CAMPY 135/QR Rear Hub
Although we do our best to make sure these spoke length values are correct, it is always best to measure the hub and verify these values for yourself! Onyx Racing takes no responsibility for errors in these calculations.
Spoke length results for an ERD of 0 mm
Spoke length results for an ERD of 0 mm
| 24 Spoke Holes | Non-Drive Side (mm) |
Drive Side (mm) |
|---|---|---|
| 1-Cross | 0 | 0 |
| 2-Cross | 0 | 0 |
| 3-Cross | 0 | 0 |
| 4-Cross | 0 | 0 |
| 28 Spoke Holes | Non-Drive Side (mm) |
Drive Side (mm) |
| 1-Cross | 0 | 0 |
| 2-Cross | 0 | 0 |
| 3-Cross | 0 | 0 |
| 4-Cross | 0 | 0 |
| 32 Spoke Holes | Non-Drive Side (mm) |
Drive Side (mm) |
| 1-Cross | 0 | 0 |
| 2-Cross | 0 | 0 |
| 3-Cross | 0 | 0 |
| 4-Cross | 0 | 0 |
Product information
| Brand | Onyx |
| Article code | 5563 |
| SKU | 102673-24 |
