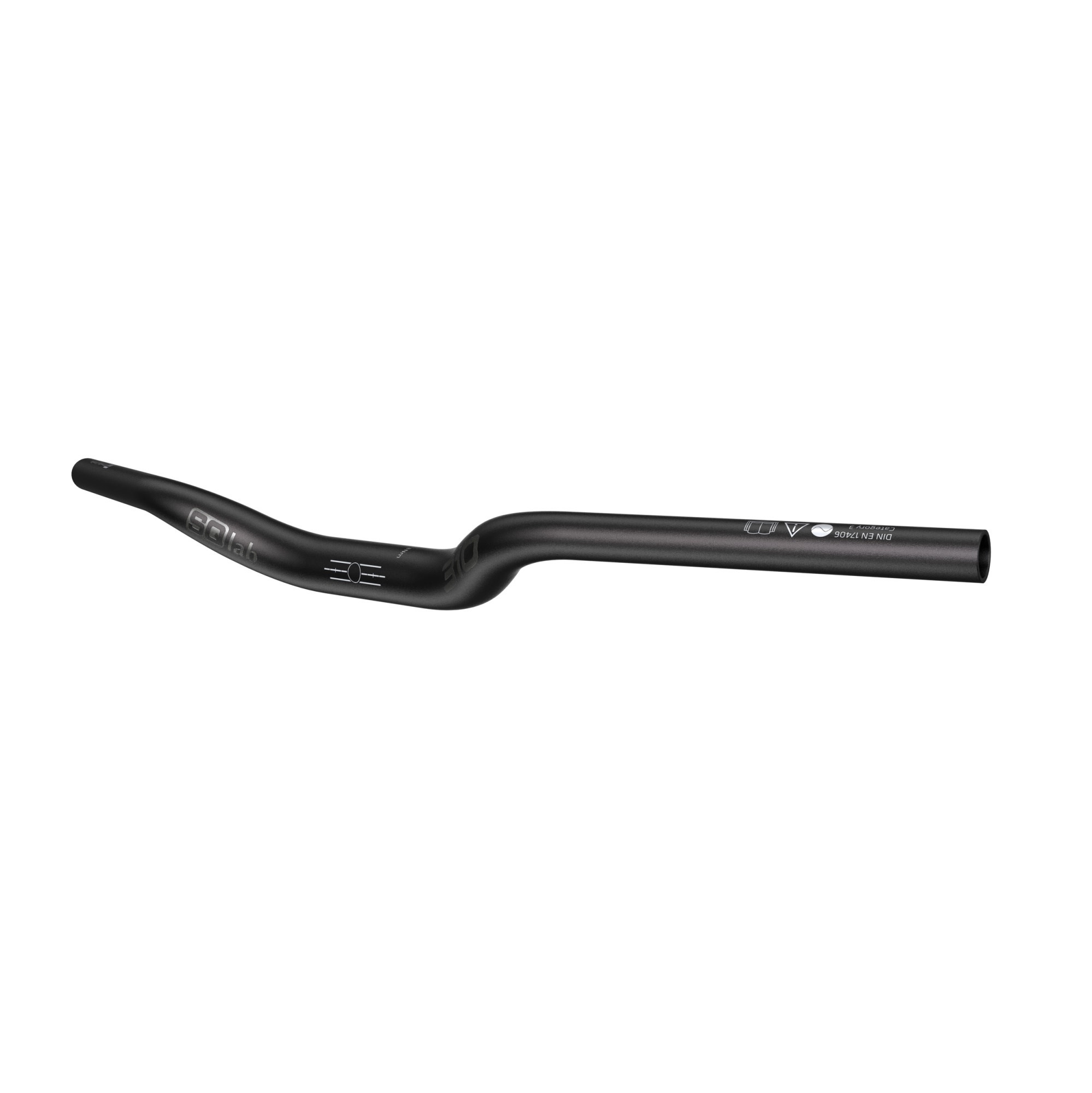

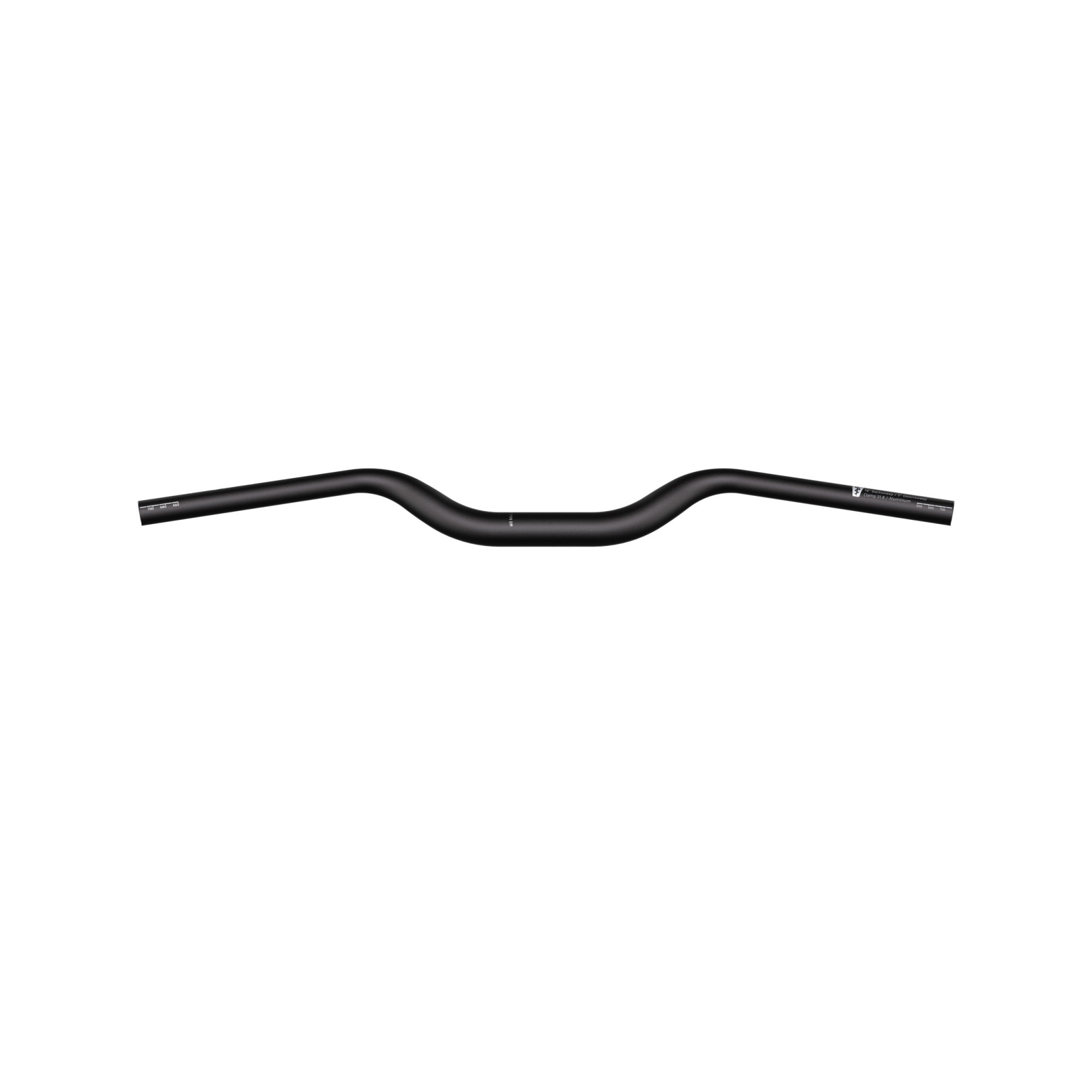

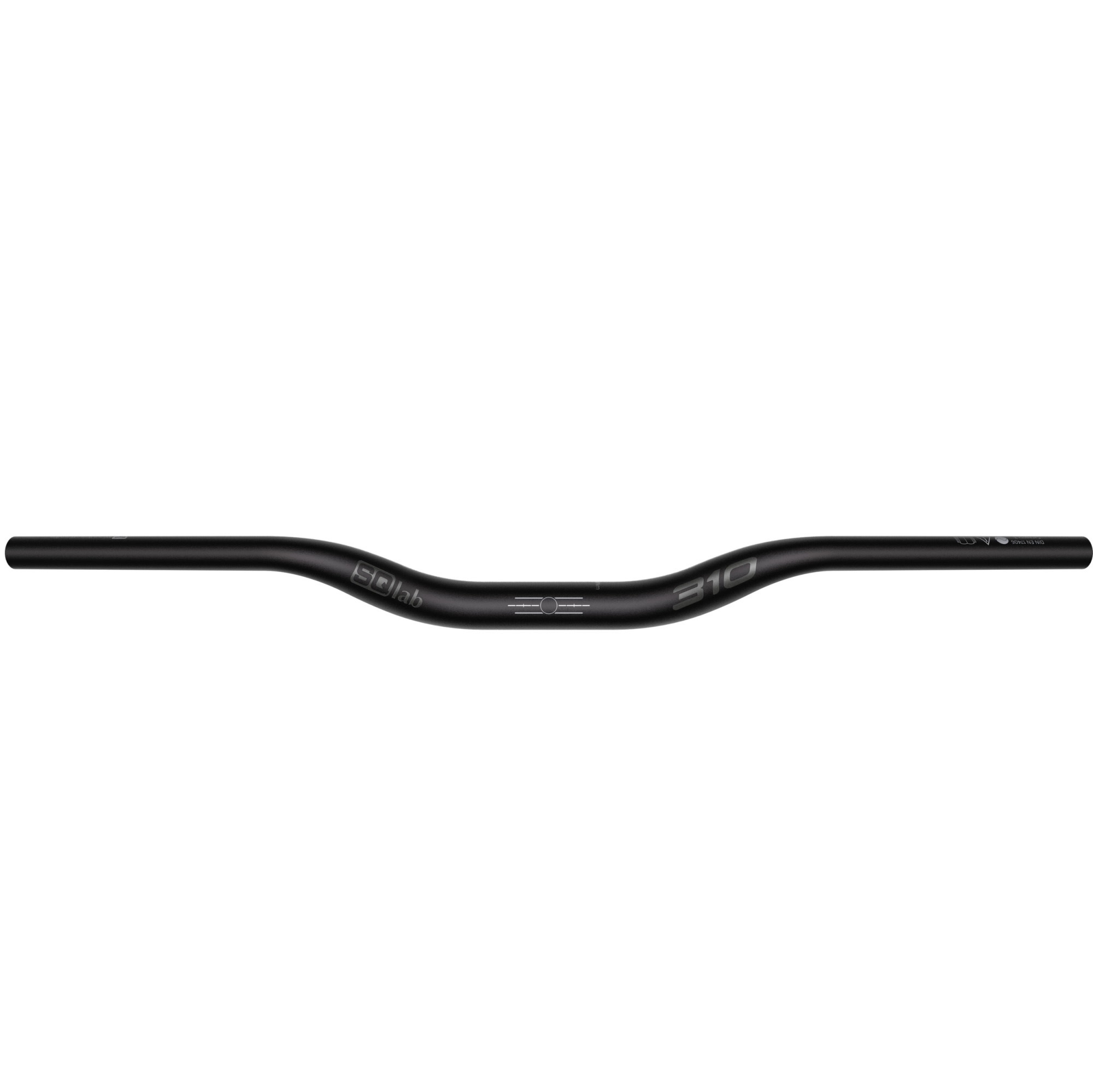

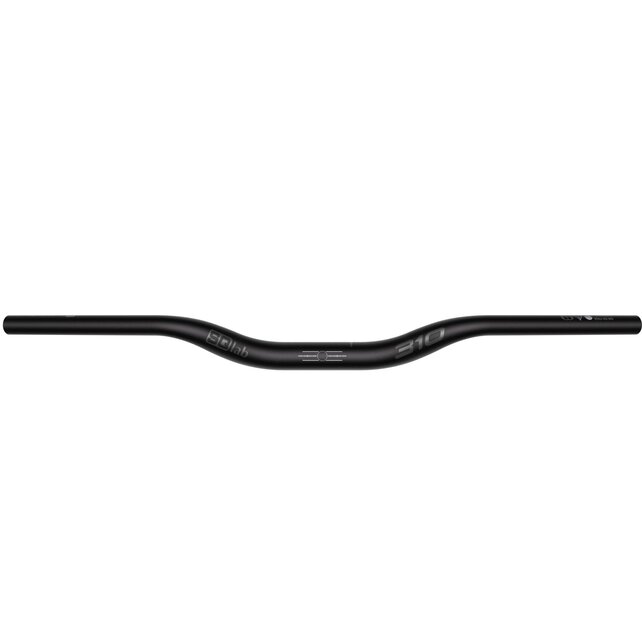

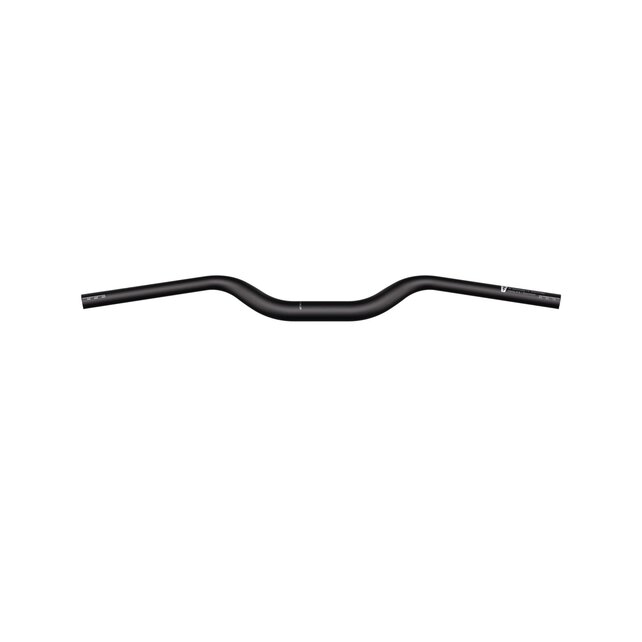

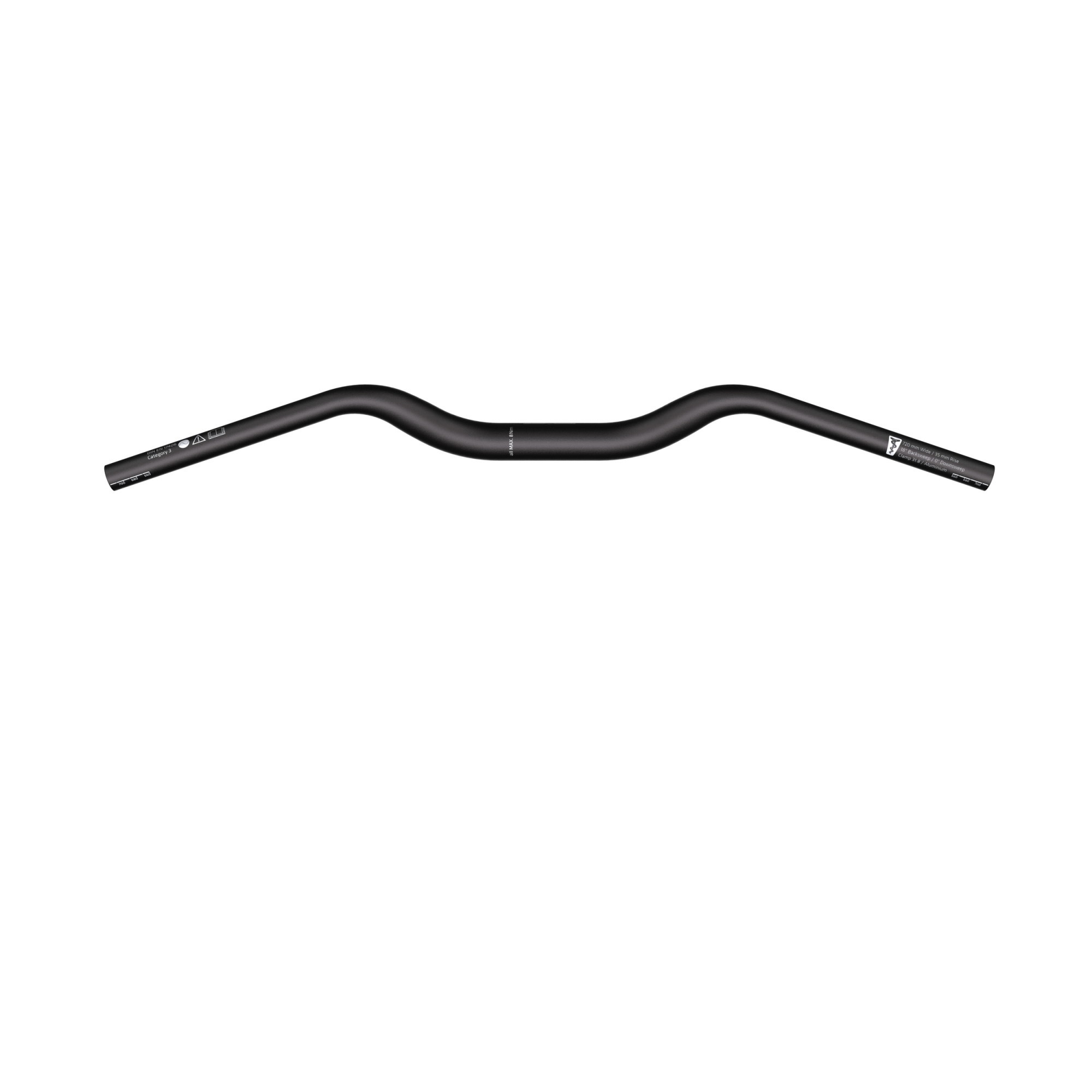

SQLab Handlebar 310 3.0 - 31.8
The 310 3.0 handlebar is made for the comfort-oriented mountain bike that is only used for touring and in light terrain, as well as for urban and fitness bikes. The goal was to create an ergonomically optimal handlebar that brings a new level of...
- In Stock Items Will ship in 2-3 business days
- Special Order Items will be ordered for you and shipped when available
- More information? Contact us about this product
- Add to comparison list
The 310 3.0 handlebar is made for the comfort-oriented mountain bike that is only used for touring and in light terrain, as well as for urban and fitness bikes. The goal was to create an ergonomically optimal handlebar that brings a new level of stability despite the strong bends. The simple formula is that the more upright the riding position, the more Backsweep and Downsweep is required. 18° Backsweep ensures a straight transition from forearm to hand, shoulders and neck are relieved.
+ Stability
+ Ergonomic posture
+ Back-friendly
+ E-bike ready
Safety and quality
The quality and durability are the highest, because SQlab has gone beyond the goal: All Comfort handlebars are manufactured to MTB standards and have passed the most demanding downhill test protocol of the German Zedler Institute.
Handlebar ergonomics
As the rise grows, so does the Backsweep and Downsweep. This always results in the optimal, ergonomic wrist position and maximum relaxation for neck and shoulders when a more upright sitting position is desired.
Rise: the handlebar height allows an individual adjustment of the sitting position.
Backsweep: ensures a straight transition from the forearm to the hand and reduces numbness in the fingers.
The maximum system weight - bike, rider and luggage - is 180kg
Technical specifications
ARTICLE NUMBER(S): 2543
AREA OF USE/BICYCLE TYPE: MTB TOUR & TRAVEL
WIEGHT(S) IN G: APPROX. 372
MATERIAL: ALUMINIUM 7050
WIDTH(S) IN MM: 720
MAXIMUM CUTTING WIDTH IN CM: 660
RISE IN MM: 35
BACKSWEEP IN °: 18
UPSWEEP IN °: 0
DOWNSWEEP IN °: 0
CLAMP DIAMETER IN MM: 31.8
STEM CLAMPING WIDTH IN MM: MIN. 40 - MAX. 58
MAXIMUM TORQUE IN NM: 8
MAXIMUM SYSTEM WEIGHT ALLOWED IN KG: 180
E-BIKE READY: YES
DIN / ASTM CATEGORIES: 3
310 3.0
The 310 3.0 handlebar is made for the comfort-oriented mountain bike that is only used for touring and in light terrain, as well as for urban and fitness bikes.
310 3.0 Handlebar ergonomics
The 310 3.0 handlebar is made for the comfort-oriented mountain bike that is only used for touring and in light terrain, as well as for urban and fitness bikes. The goal was to create an ergonomically optimal handlebar that brings a new level of stability despite the strong bends. The simple formula is that the more upright the riding position, the more Backsweep is required. 18° Backsweep ensures a straight transition from forearm to hand, shoulders and neck are relieved.
Backsweep
ensures a straight transition from the forearm to the hand and reduces numbness in the fingers.
Rise
the handlebar height allows an individual adjustment of the sitting position.
Numbness in hands and fingers while cycling?
The cause of numbness in the forefinger, middle finger or thumb is an overstretched lateral wrist, which can narrow the carpal tunnel. Similar to a kinked garden hose, through which no more water flows, the nerve information can no longer be transported through the narrowed carpal tunnel. This "bend" is usually caused by a too straight handlebar with too little bend to the rear (backsweep). Sports physicians recommend a stronger bend of the handlebar to the rear in order to achieve a straight transition from the forearm to the hand.
This “backsweep” creates a rearward curve so that the wrist is not over stretched and the carpal tunnel is no longer restricted, thus relieving the hand and improving its position. This minimizes the risk of numb fingers and discomfort in the thumb, index and middle finger.
| Brand | SQlab |
| Article code | 11783 |
| SKU | 2543 |
