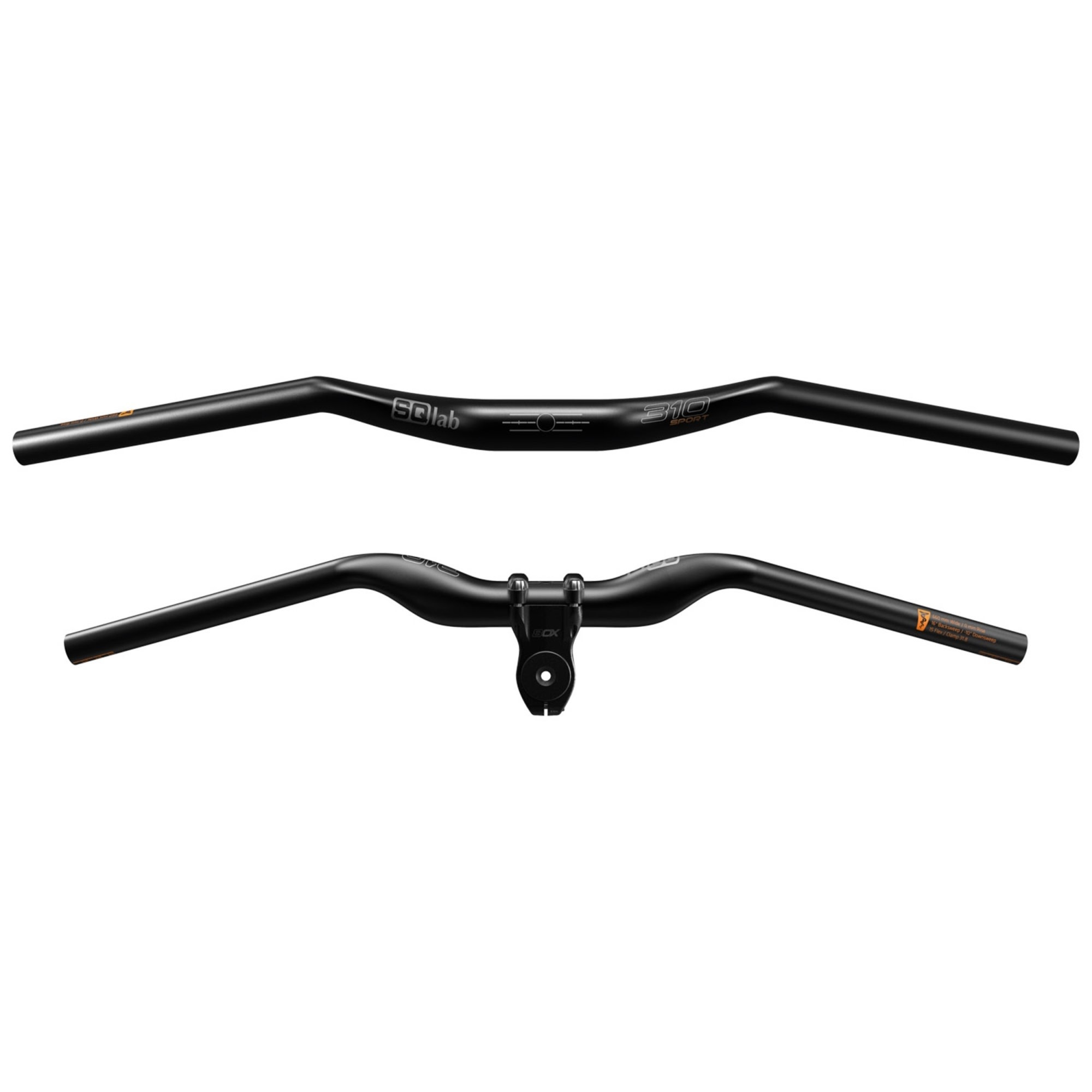

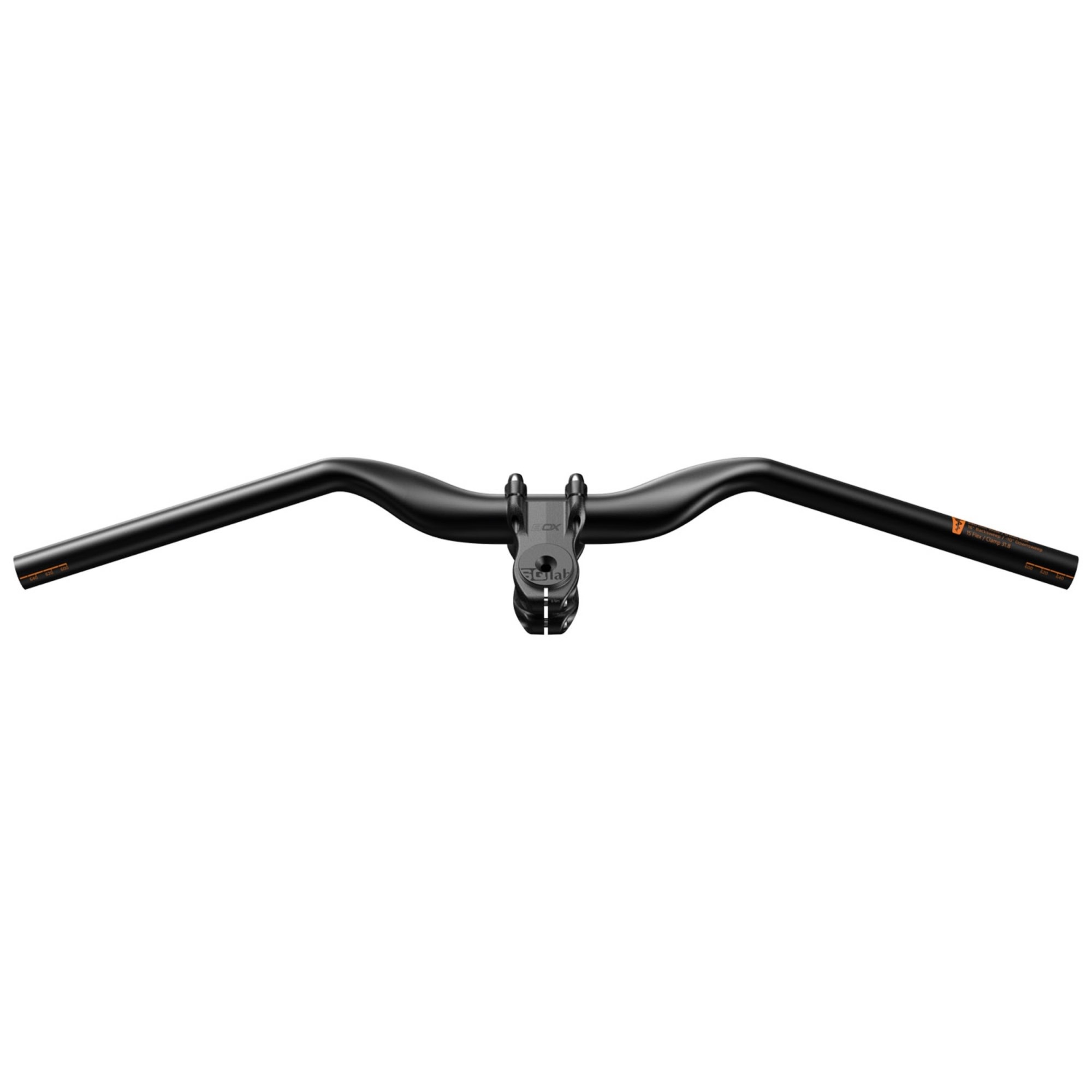

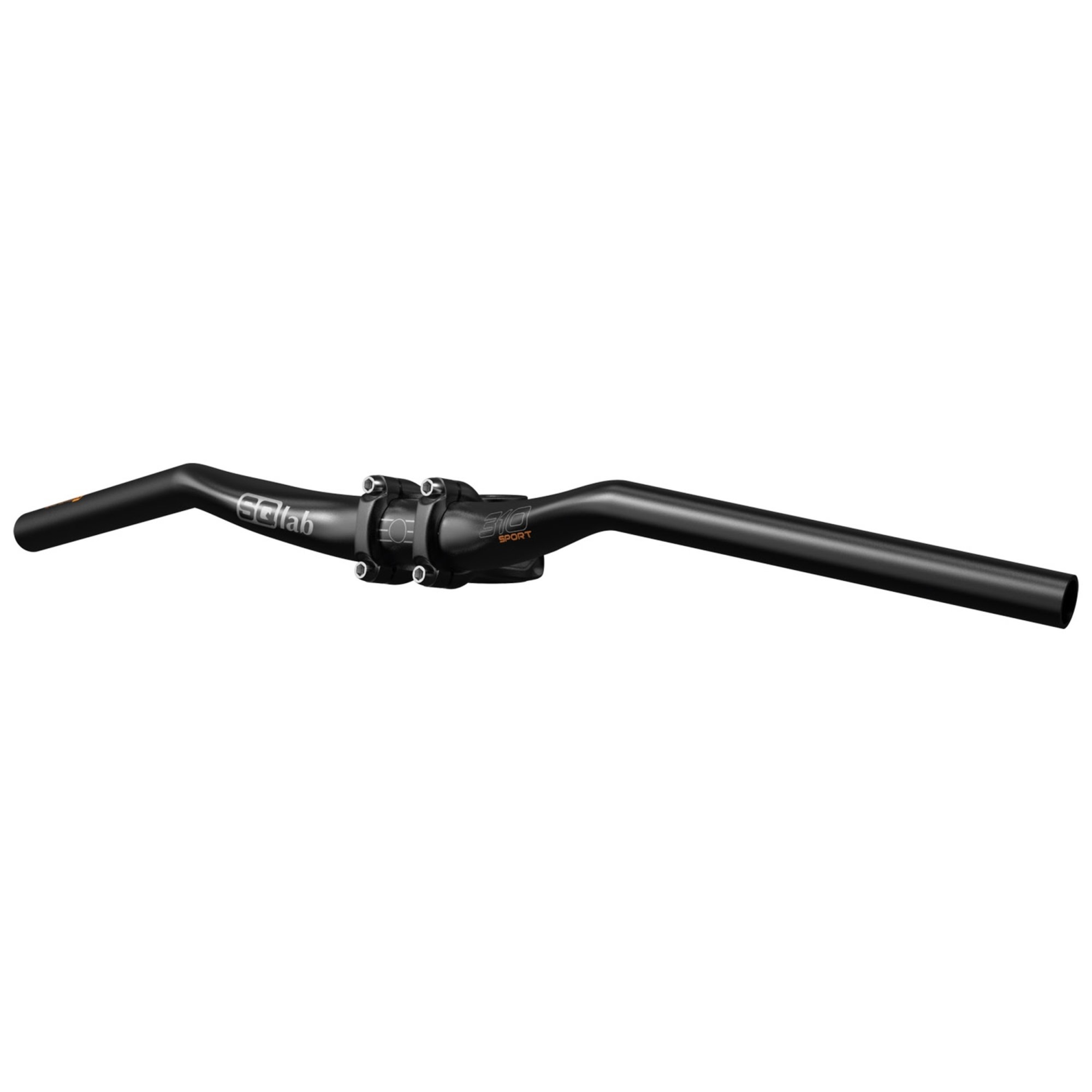

SQLab Handlebar 310 Sport 2.0 - 31.8 Alu

The 310 Sport is ideal for fitness, urban, speed bikes and fast trekking bikes with an moderate (+2) up to slightly bent forward (+3) riding position.

In comparison to conventional straight bars, the 310 has three noteworthy advantages: The 16° backsweep (traditional is 0° - 6°) straightens the wrist and ensures for a straight transition of lower arm to hand. Pain in the middle-, index finger and thumb are common complaints with too straight bars that cause an overstretching of the wrist. The 10° downsweep slightly tends towards a road dropbar hand position. The elbows are lowered into a more aerodynamic position and the shoulder is relieved. The ovalisation either side of the clamping area provides a low modulus of elasticity which increases the comfort on larger impacts while minimising the risk of failure.

The sportier version of the 310

The pictured stem is not included in the scope of delivery.

Technical specifications

ARTICLE NUMBER(S): 2210

AREA OF USE/BICYCLE TYPE: TREKKING

WIEGHT(S) IN G: APPROX. 269

MATERIAL: ALUMINIUM

WIDTH(S) IN MM: 660

MAXIMUM CUTTING WIDTH IN CM: 600

RISE IN MM: 0

BACKSWEEP IN °: 16

UPSWEEP IN °: -

DOWNSWEEP IN °: 10

CLAMP DIAMETER IN MM: 31.8

STEM CLAMPING WIDTH IN MM: 60

MAXIMUM TORQUE IN NM: 8

MAXIMUM SYSTEM WEIGHT ALLOWED IN KG: 120

E-BIKE READY: NO

DIN / ASTM CATEGORIES: 2
