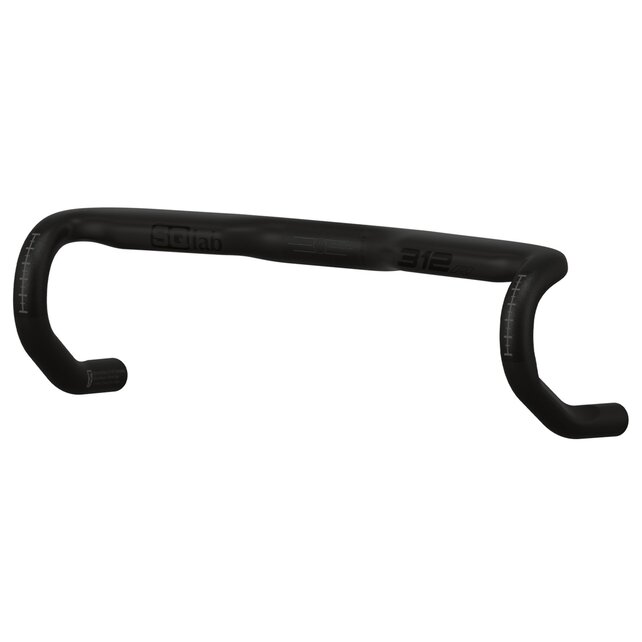

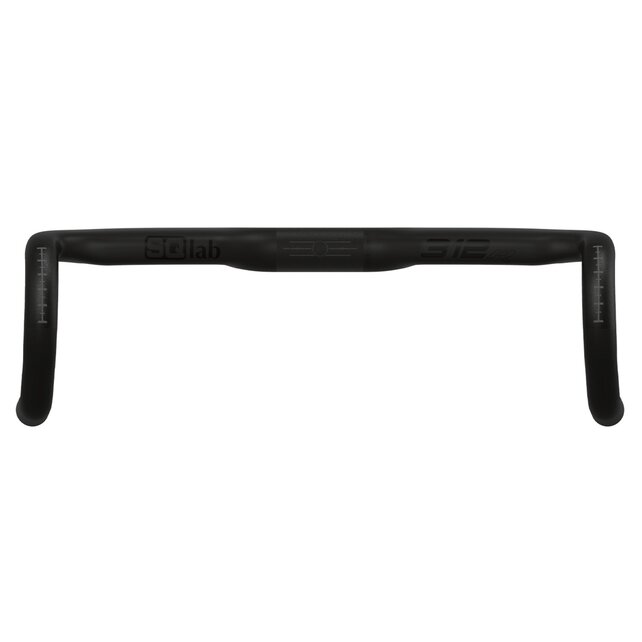

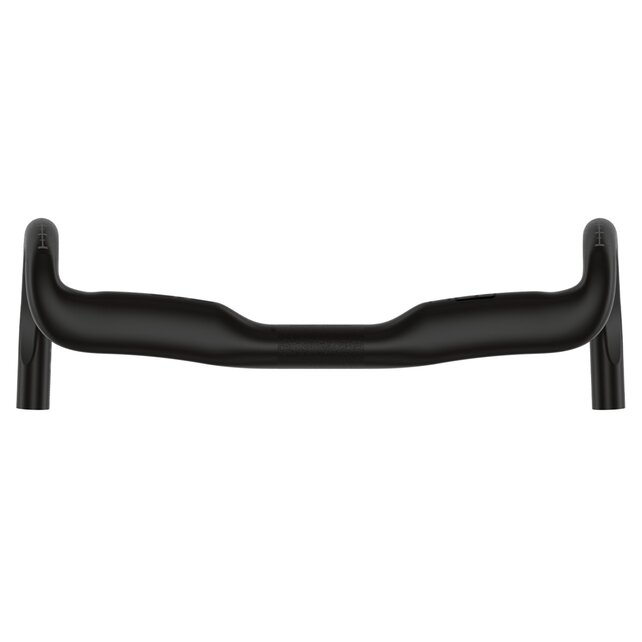

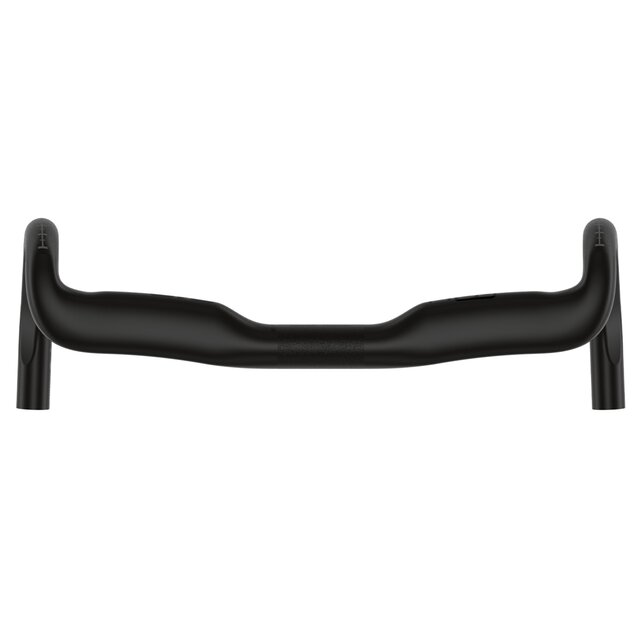

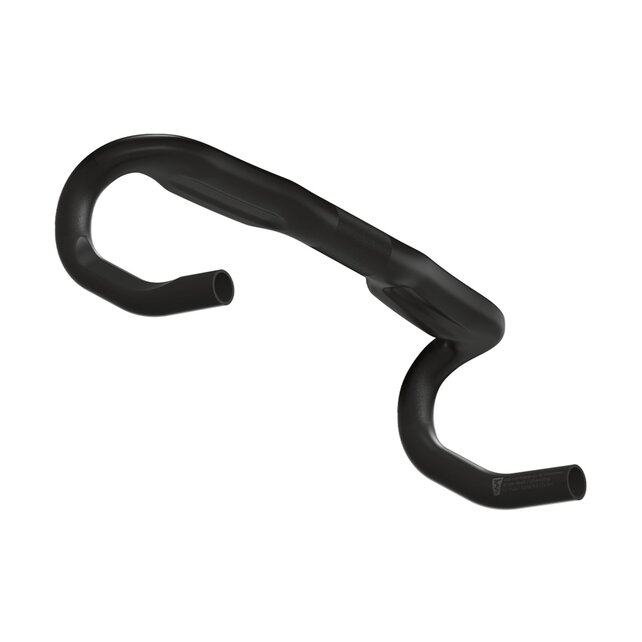

SQLab Handlebar 312 R Carbon

Ergonomic, lightweight and the first Road bike handlebar from SQlab. In terms of material processing, weight and durability, we have already been able to prove that we are amongst the world‘s best in the field of MTB handlebars. In contrast to our MTB handlebars a 10° frontsweep is used which decreases towards the end of the handlebar. All contact surfaces are optimized in every detail, such as the Ergobar at the bottom or the small cutout on the outside for the little fingers.

    • Ergobar: The Ergobar is an wave-shaped elevation on the underside. This results in a flat, slightly angular underside of the handlebar. Fits perfectly to the angled, bent fingers.

    • Maximum Surface: The area which is flattened at the top and extended far forward is maximally large. This allows the fingersto safely enclose the handlebar and at the same time provides grip.

    • Grip Security: The combination of contact surface and freedom of movement ensure the best possible pressure distribution.

    • Angular and Areal: Thanks to the flattened outer surface, the handlebar is also pleasant to grasp in the lower grip and at the same time provides a secure hold in various riding positions.

    • Di2 ready

Technical specifications

ARTICLE NUMBER(S): 2381 / 2382 / 2383 / 2480

AREA OF USE/BICYCLE TYPE: ROAD

WEIGHT(S) IN G: CA. 235 / 240 / 245 / 250

MATERIAL: T1K CARBON

WIDTH(S) IN MM: 380 / 400 / 420 / 440

RISE IN MM: 0

DROP IN MM: 120

REACH IN MM: 80

FRONTSWEEP IN °: 10 ZU 2

FLARE IN °: 1, 5

DOWNSWEEP IN °: 0

CLAMP DIAMETER IN MM: 31,8

STEM CLAMPING WIDTH IN MM: MIN. 40 - MAX. 58

MAXIMUM TORQUE IN NM: 8

MAXIMUM SYSTEM WEIGHT ALLOWED IN KG: 120

E-BIKE READY: YES

DIN/ASTM CATEGORIES: 2/6
