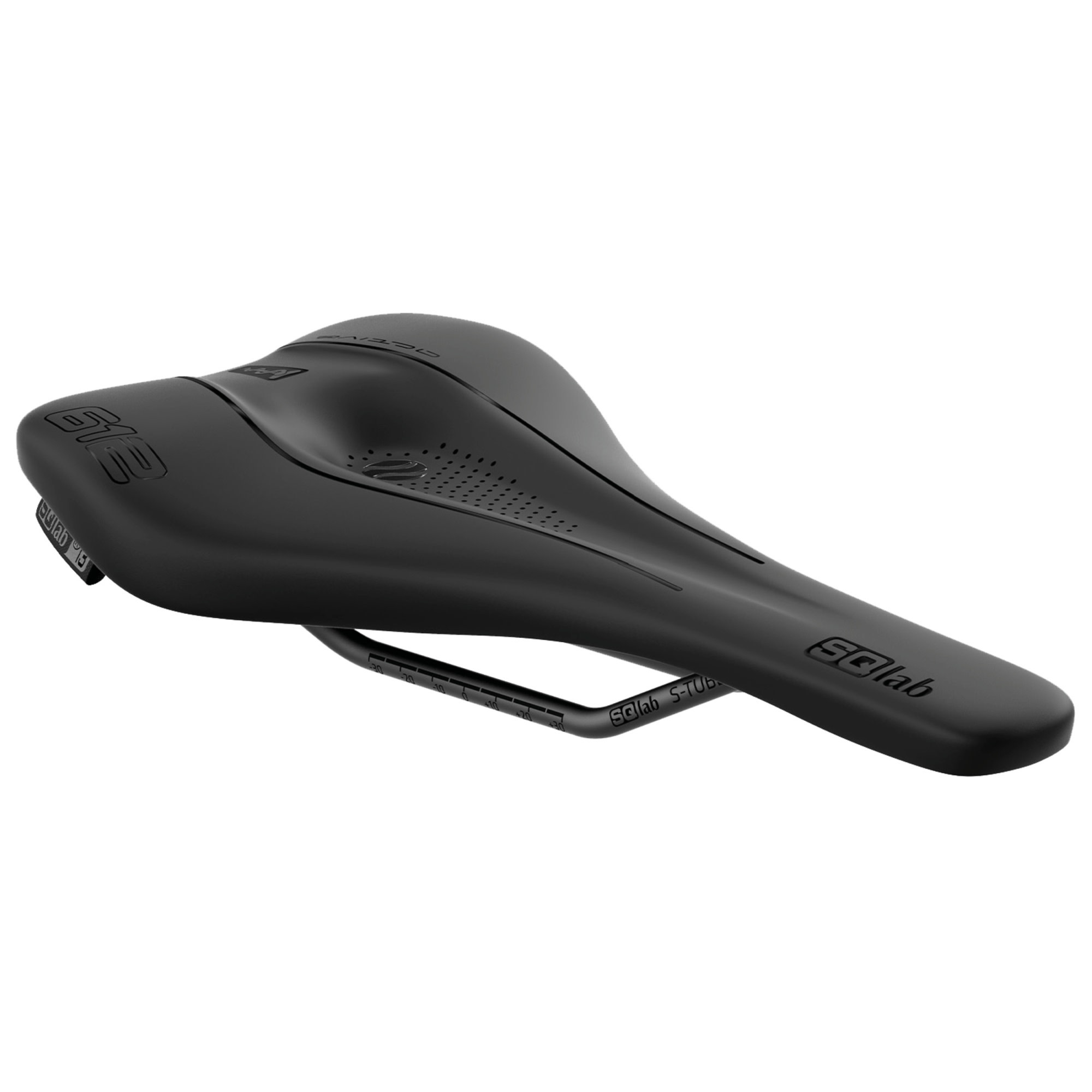

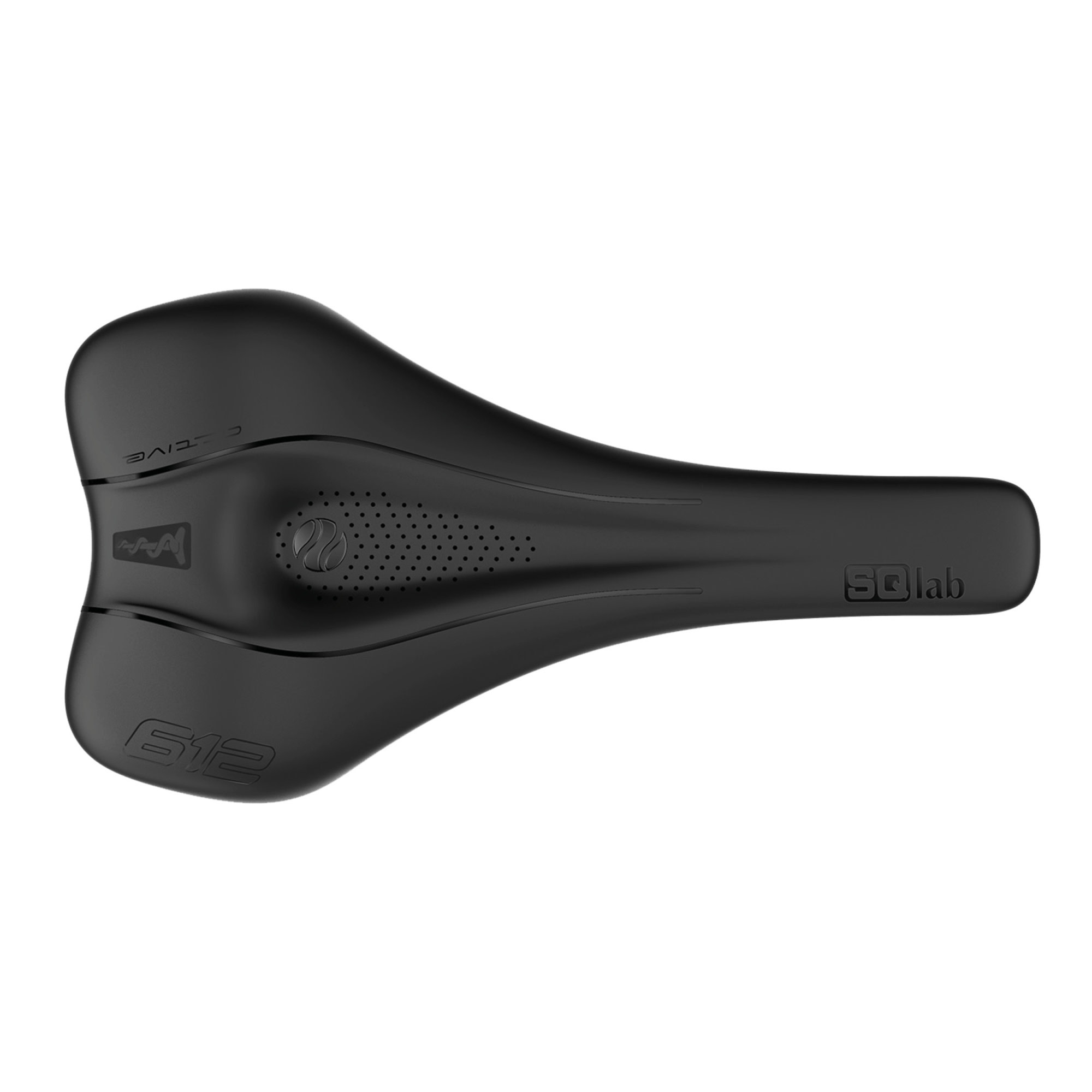

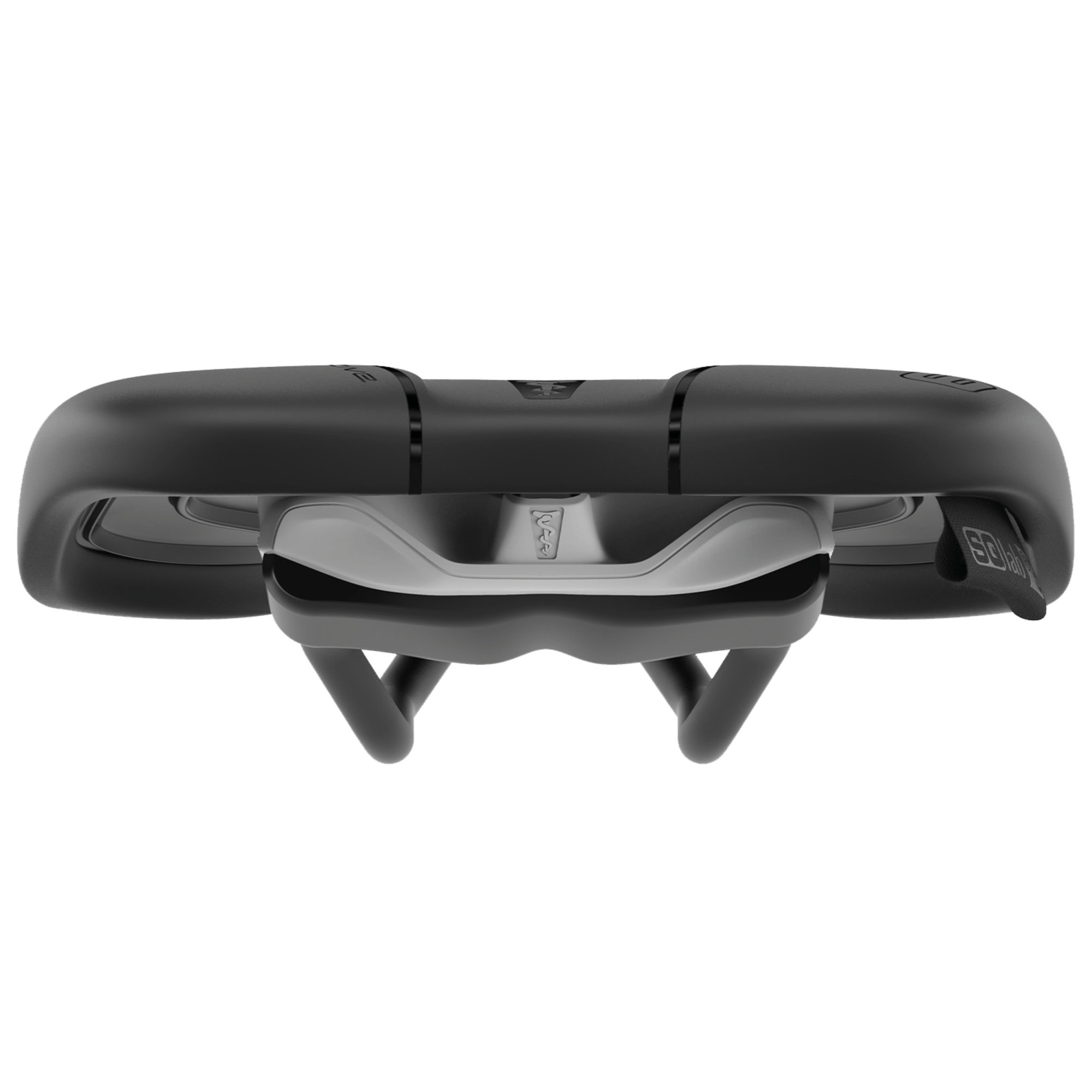

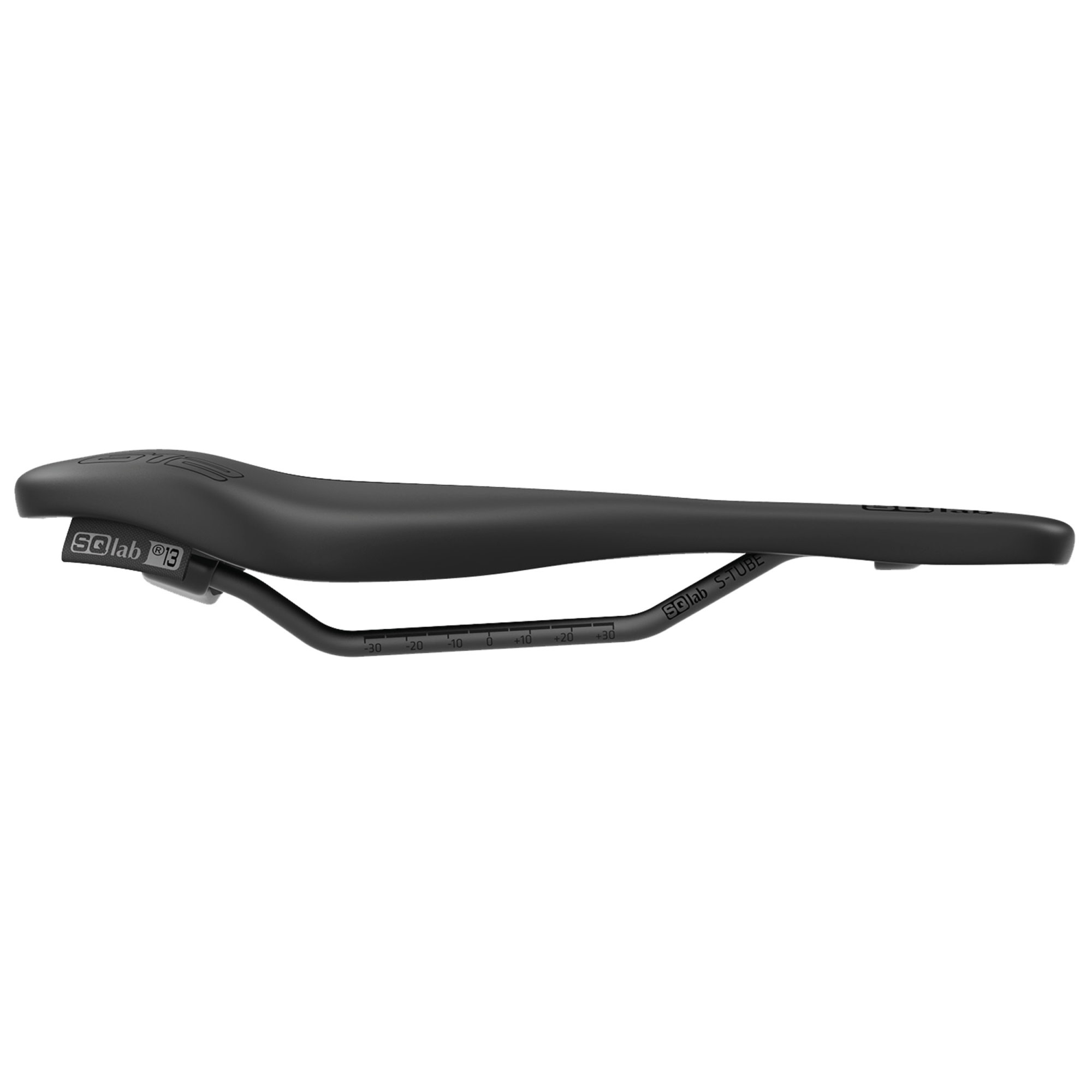

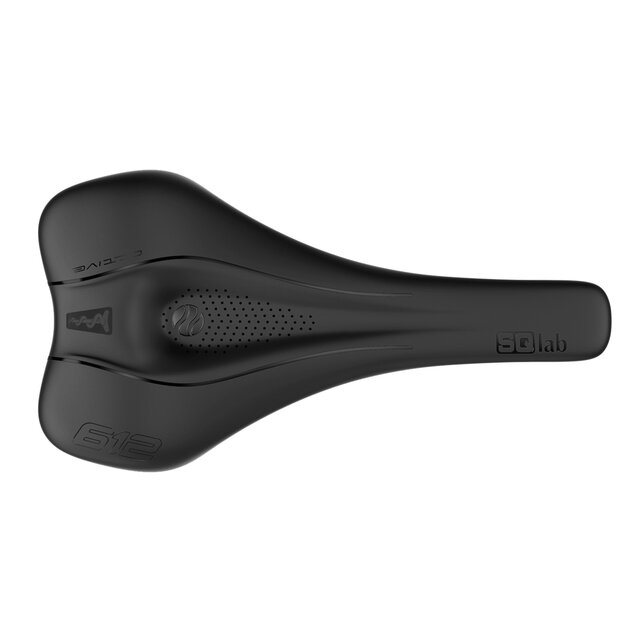

SQLab Saddle 612 Ergowave active 2.1 S-Tube

The 612 ERGOWAVE® active 2.1 is the sporty road bike and mountain bike race saddle. The wave-like shape and the raised tail of the saddle ensure perfect rear support and optimum pressure distribution down to the deep structures of the body, which significantly improves power transmission to the pedal.

The lowered nose in combination with the recess in the middle creates more space and clearance for the perineal area for women and men. Many small detail improvements in shape, technology and material raise the new 612 ERGOWAVE® active 2.1 to a new level.

The 612 ERGOWAVE® active 2.1 is equipped with the new active technology with a softer and lighter movement with less weight. The SQlab active saddle technology allows the saddle to follow the pedalling movement, which increases comfort, mobilises the intervertebral discs and minimises pressure on the sit bones.

TECHNICAL SPECIFICATIONS

ARTICLE NUMBER(S): 2398 / 2399 / 2400 / 2401 / 2402

AREA OF USE/BICYCLE TYPE: ROAD / MTB RACE

SITTING POSITION(S): STRETCHED (+1 CM) / MODERATE (+2 CM)

WIEGHT(S) IN G: APPROX. 225 / 226 / 215 / 243 / 248

ACTIVE TECHNOLOGY: YES - SPORT

MOUNTING HEIGHT IN MM: APPROX. 53

SIZE(S) IN CM (EFFECTIVE SADDLE WIDTH): 12 / 13 / 14 / 15 / 16

LENGTH IN MM: APPROX. 275

MATERIAL RAILS: S-TUBE (LIGHT METAL ALLOY - HOLLOW)

MATERIAL BASE: GLASS FIBRE REINFORCED POLYAMIDE COMPOUND (PA12 + GF)

MATERIAL PADDING: SUPERLIGHT FOAM

MATERIAL COVER: MICROFIBRE

HARDNESS IN SQ-SHORE: 60

RELIEF OF PERINEAL AREA IN %: 63

MAXIMUM LOAD IN KG: 100

MAXIMUM TORQUE IN NM: 18

E-BIKE READY: YES

DIN / ASTM CATEGORIES: 4, 6 / 4

GENDER: UNISEX
