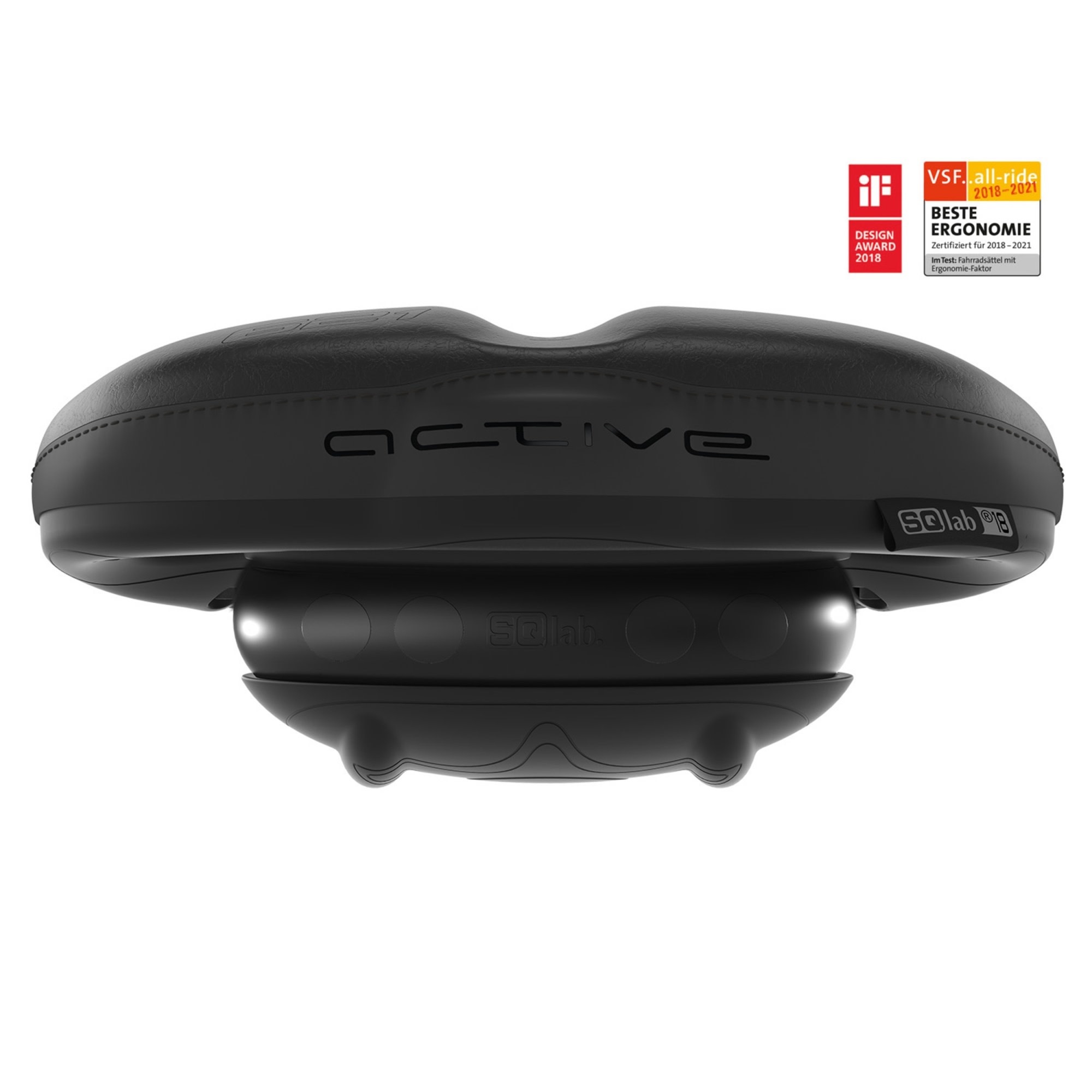

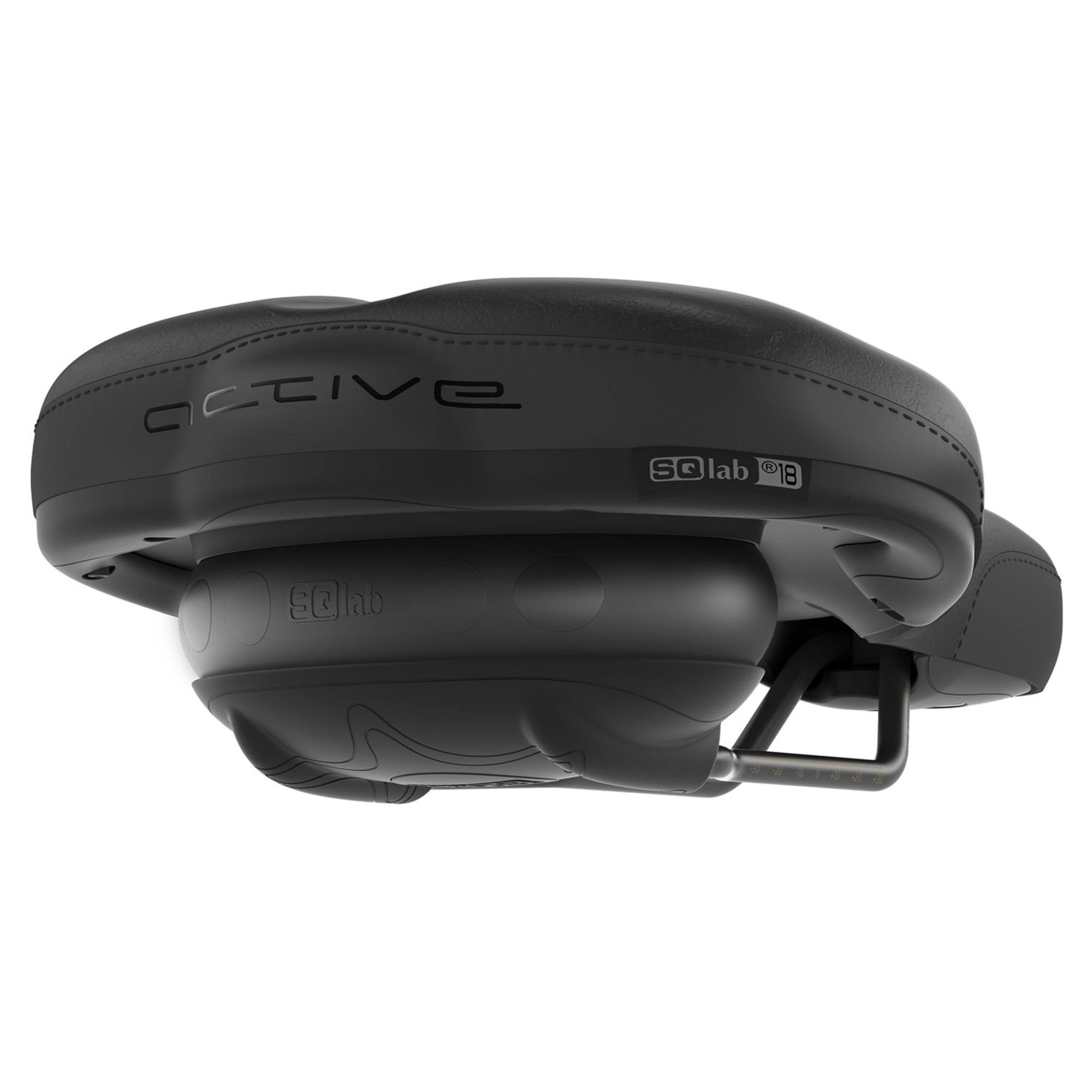

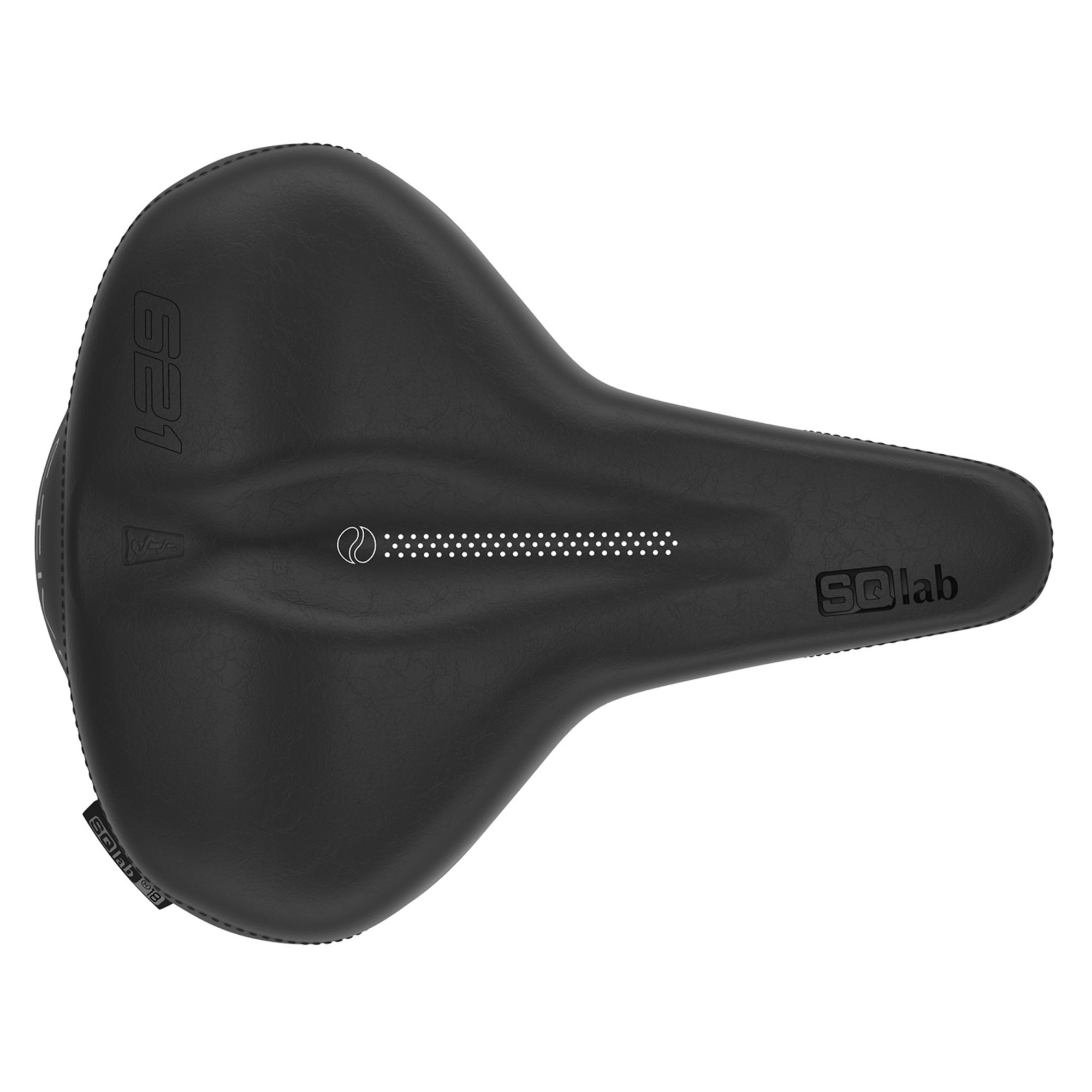

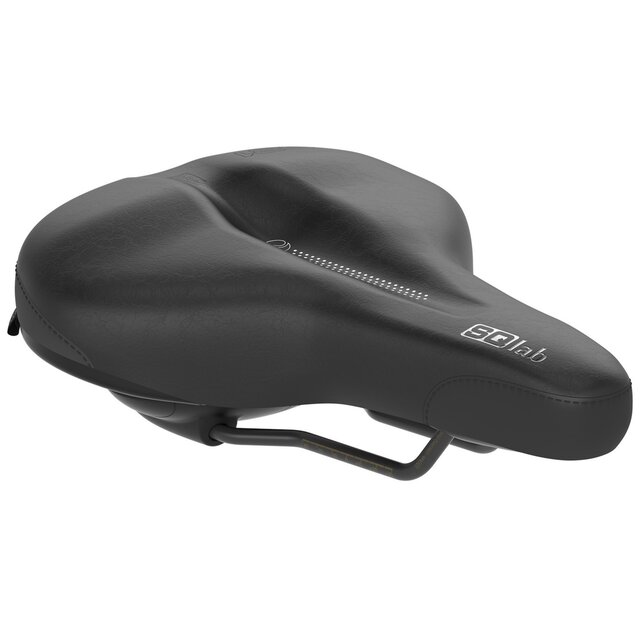

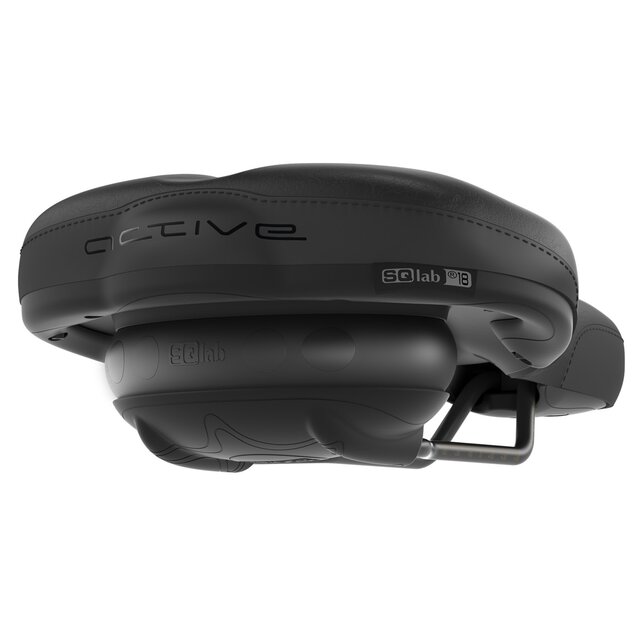

SQlab Saddle 621 Ergolux active 2.0

The 621 ERGOLUX® active 2.0, the proven City and Comfort saddle, will appear in 2019 in a new design. Compared to the firmer performance ERGOWAVE® models, the 621 ERGOLUX® active 2.0 offers greater padding volume which makes for softer feeling foam. The dual waves make the supporting surface significantly larger than before, keeping the sit bones from sinking less deeply into the seating area. As a result, the ERGOLUX® does not have the disadvantages that normally come with softer foam.

The first level accommodates the rear part of the sit bones offering perfect support for improved force transmission onto the pedal. The second level ideally accommodates the unburdened ischial rami, thereby ensuring the best-possible pressure distribution. Due to the saddle nose sitting lower, the perineal and front area of the pubic bone and pubic arch have more free space. Thanks to the proven SQlab active system which allows the saddle to follow the pedalling movements of the rider, comfort is increased, less strain is placed on the inter- vertebral discs and pressure on the sit bones is further reduced.

Thanks to the proven SQlab active system which allows the saddle to follow the pedaling movements of the rider, comfort is increased, less strain is placed on the inter- vertebral discs and pressure on the sitbones is further reduced. The flex and active movement can be adjusted to the body weight with the comfort sticks in the active dampener.

Exception 621 City/ Comfort Series

The following special regulations apply to saddles of the 621 Comfort model range:

Sit bone distance less than or equal to 12 cm >> Saddle width 18 cm

Sit bone distance greater than 12 cm >> Saddle width 21 / 24 cm

Available in saddle widths 18, 21 & 24 cm.

TECHNICAL SPECIFICATIONS

ARTICLE NUMBER(S): 2431 / 2432 / 2433

AREA OF USE/BICYCLE TYPE: CITY

WIEGHT(S) IN G: APPROX. 632 / 648 / 665

ACTIVE TECHNOLOGY: YES - COMFORT

MOUNTING HEIGHT IN MM: APPROX. 87

SIZE(S) IN CM (EFFECTIVE SADDLE WIDTH): 18 / 21 / 24

LENGTH(S) IN MM: APPROX. 277

MATERIAL RAILS: CRMO (SOLID)

MATERIAL BASE: POLYPROPYLENE COMPOUND (PP) GF)

MATERIAL PADDING: COMFORT FOAM

MATERIAL COVER: MICROFIBRE

HARDNESS IN SQ-SHORE: 45

RELIEF OF PERINEAL AREA IN %: 70

MAXIMUM LOAD IN KG: 130

MAXIMUM TORQUE IN NM: 18

E-BIKE READY: YES

DIN / ASTM CATEGORIES: 1

GENDER: UNISEX

621 ERGOLUX ACTIVE 2.0

Did you already measure your sitbones?

A prerequisite for maximum comfort and relief is the coordinated saddle width, so that it is guaranteed that your seat bones lie completely on the saddle. This is the only way to properly relieve the sensitive perineal area in men and the usually lower pubic arch in women.

Available widths: 18 / 21 / 24 cm

Perfect grip

The raised rear results in more grip toward the rear and provides more efficient force transfer.

Comfortable sitting position

 The dual waves make the supporting surface significantly larger than before, keeping the sit bones from sinking less deeply into the seating area. the 621 ERGOLUX® offers more volume in the upholstery, so the foam can become slightly softer.

Lower saddle nose

The lower-lying saddle nose accordingly presses less on sensitive positions. Equally so for both men and women.

active comfort

The SQlab technology relieves strain on intervertebral discs and sit bones. The active movement can be adjusted via four comfort sticks.
