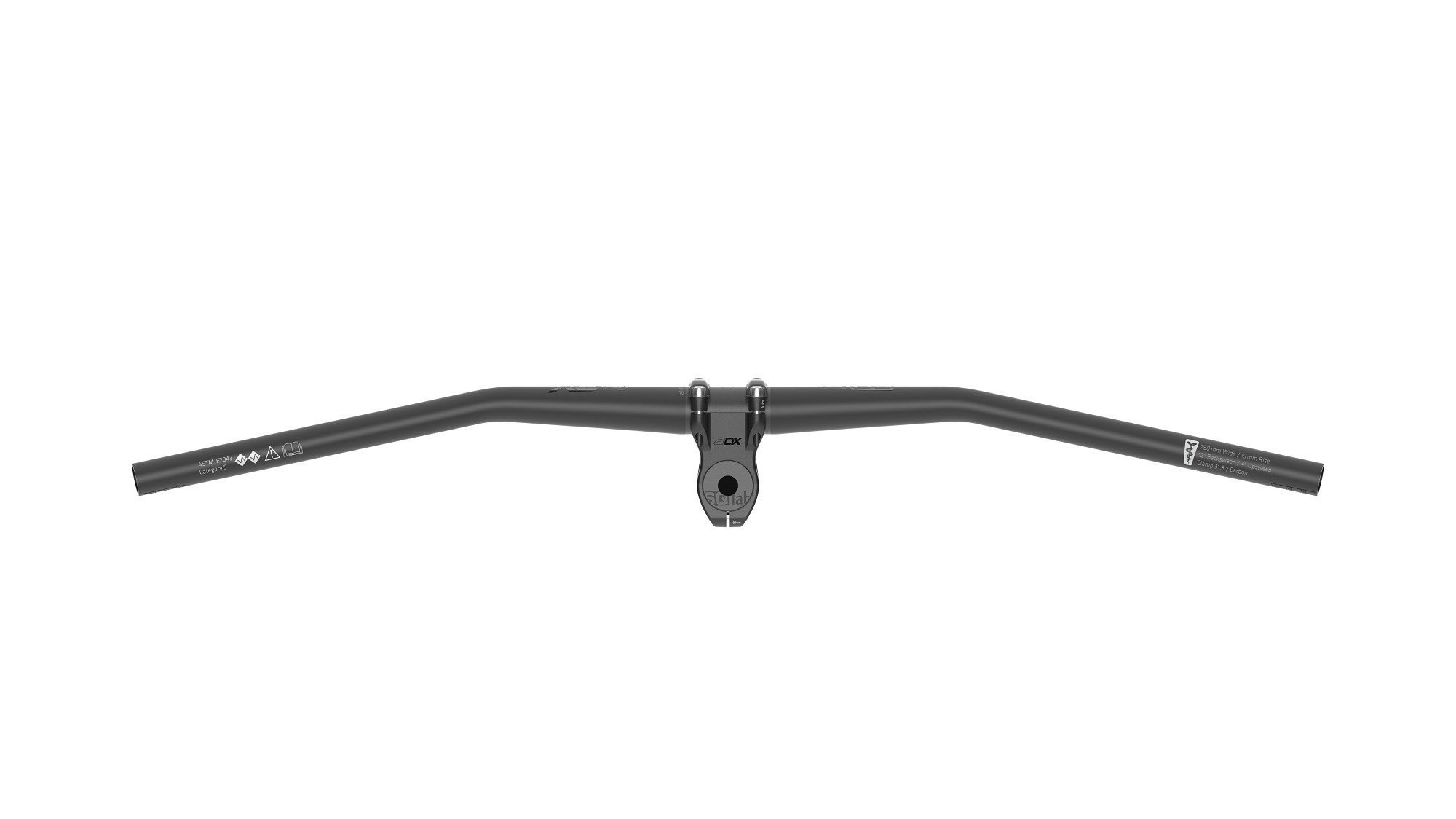

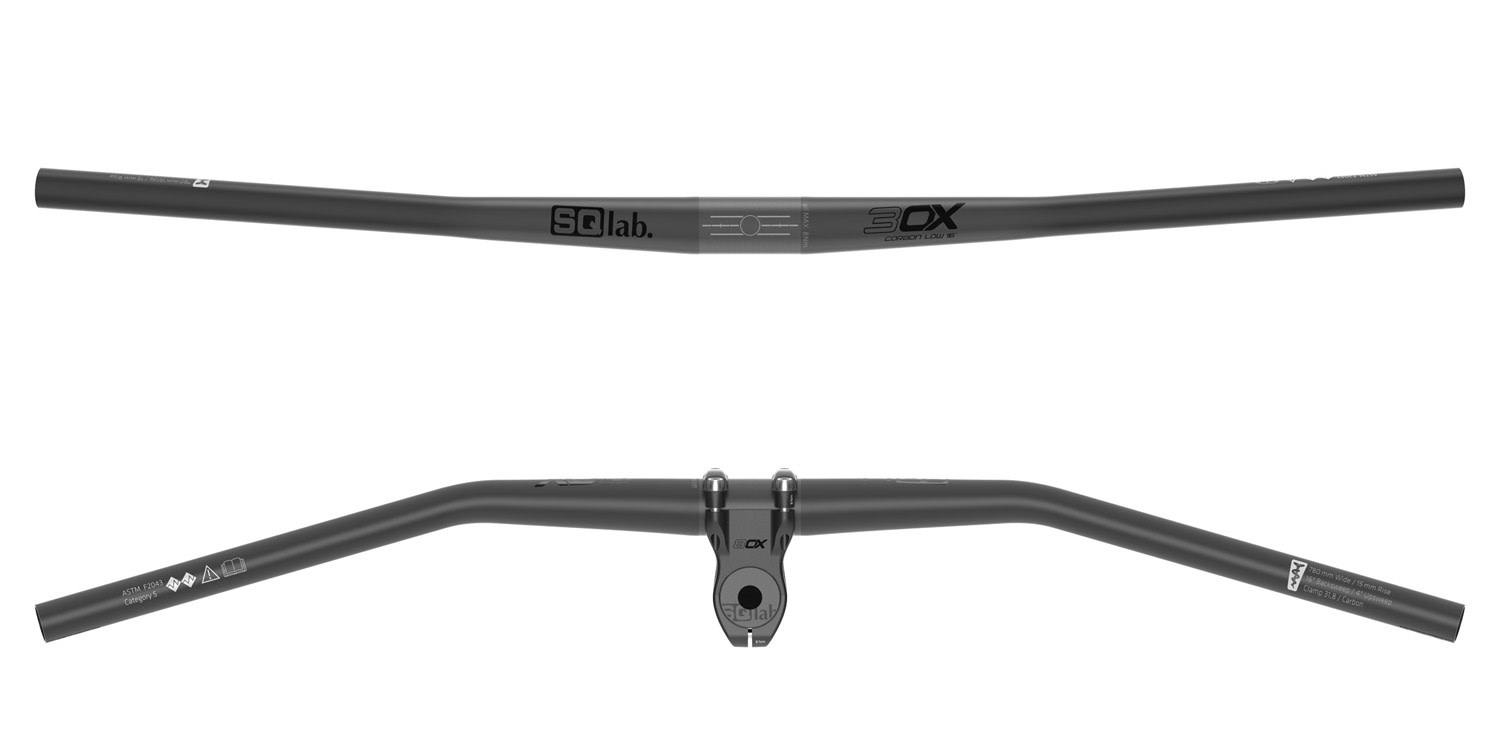

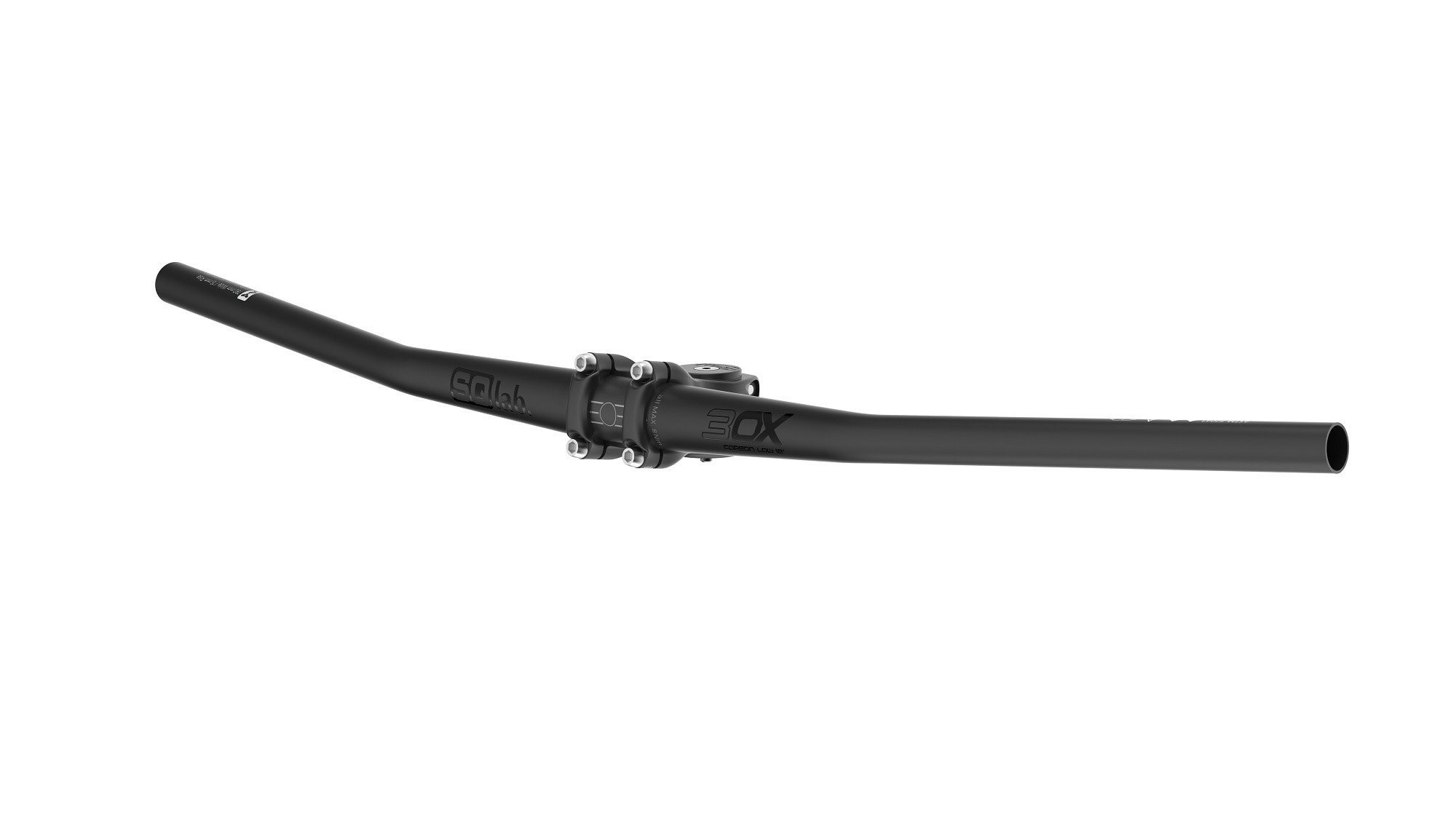

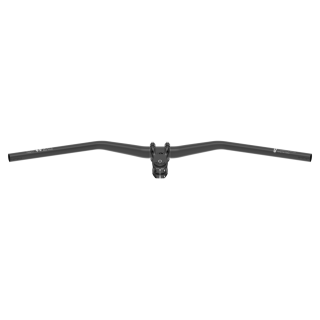

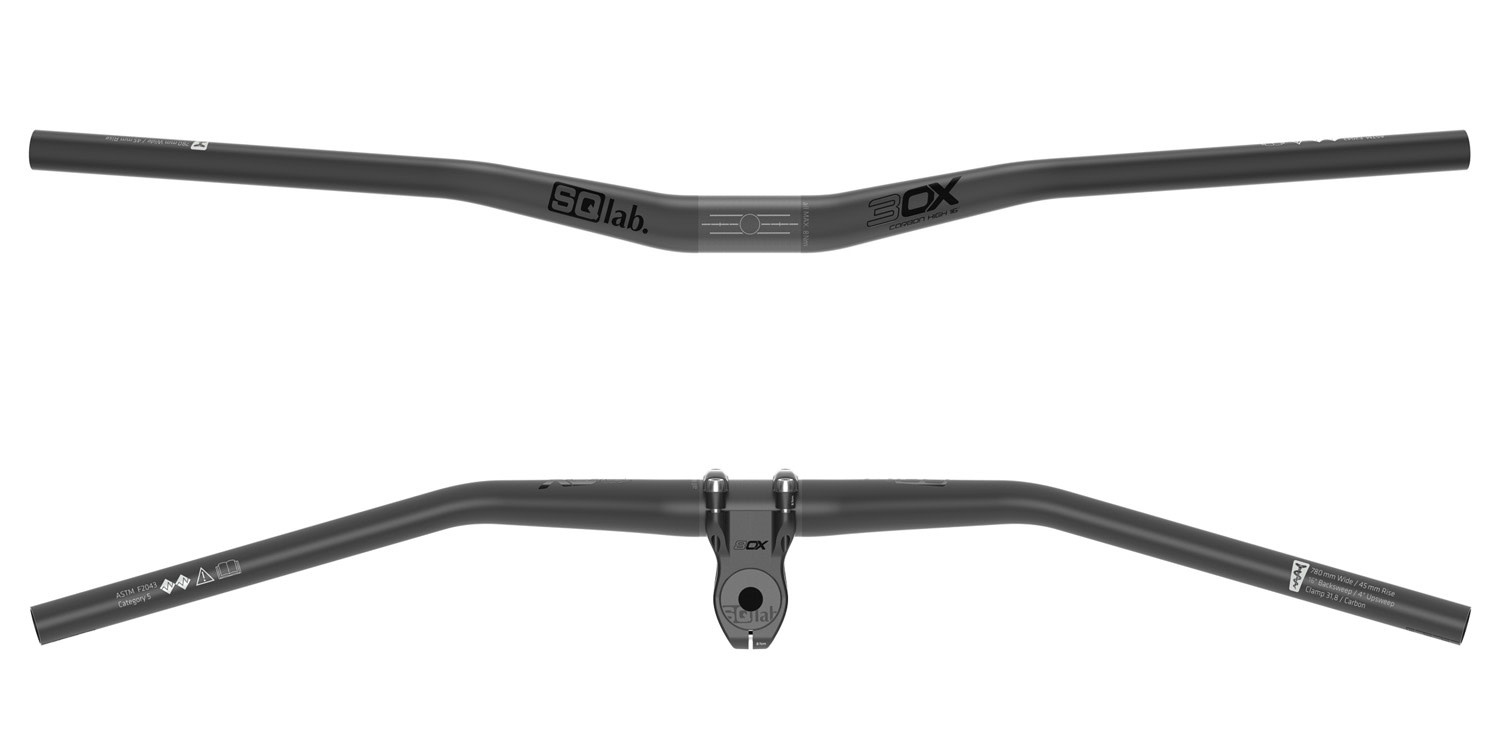

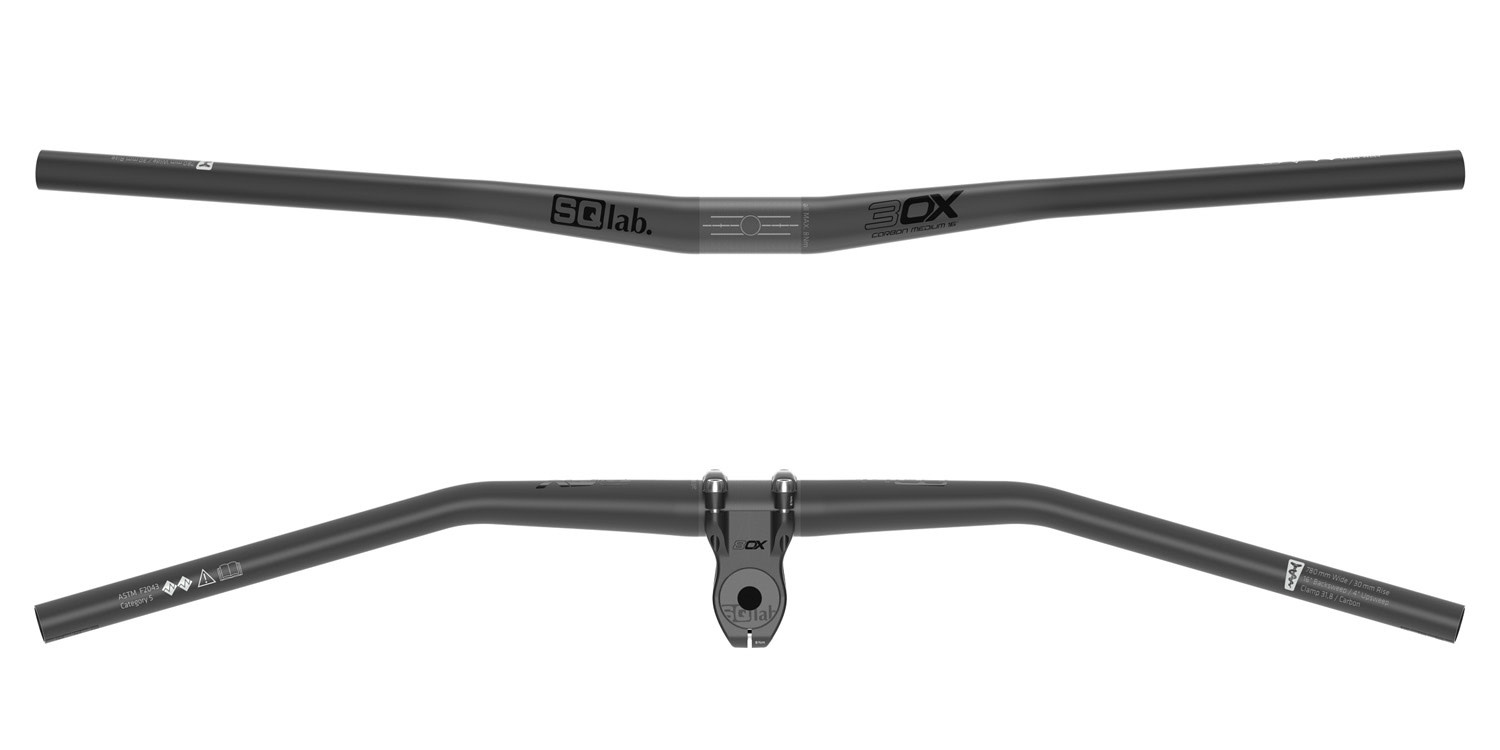

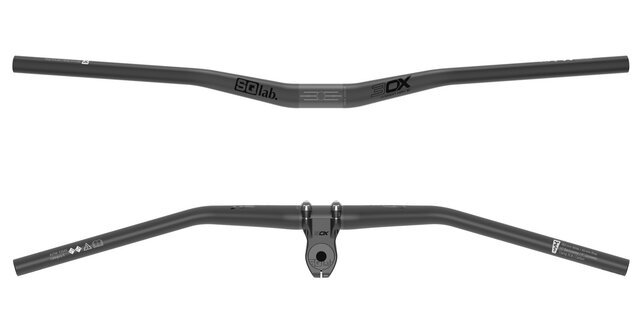

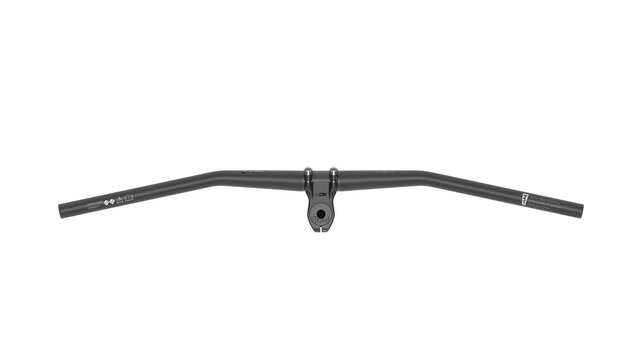

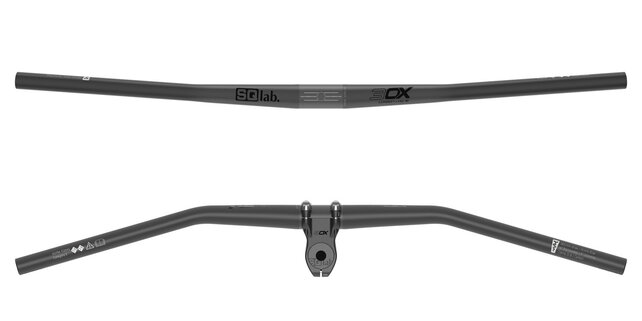

SQLab 3OX Bar 16° Carbon, 31.8, 4° upsweep

Description at a glance:

The 16° backsweep provides a natural transition from the lower arm to the hand when in a more stretched riding position. The 4° upsweep brings the elbows into a perfect position for a dynamic riding style. The 15mm, 30mm or 45mm rise allow individualized positions. 31,8mm clamp diameter. Passed the “Zedler End of Life” test with flying colors. The perfect combination of form, wall thickness and diameter with the corresponding anatomically optimized bend for various riding dynamics, currently make the new SQlab 30X handlebar series the most stable as well as the lightest bar in its field.

Technical specifications at a glance:

ARTICLE NUMBER(S): 2054 / 2055 / 2056
AREA OF USE/BICYCLE TYPE: MTB GRAVITY & E-PERFORMANCE
WEIGHT(S) IN G: APPROX. 235/ 240 / 245
MATERIAL: T1K CARBON
WIDTH(S) IN MM: 780
MAXIMUM CUTTING WIDTH IN MM: 720

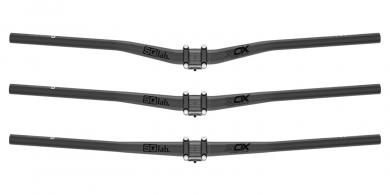

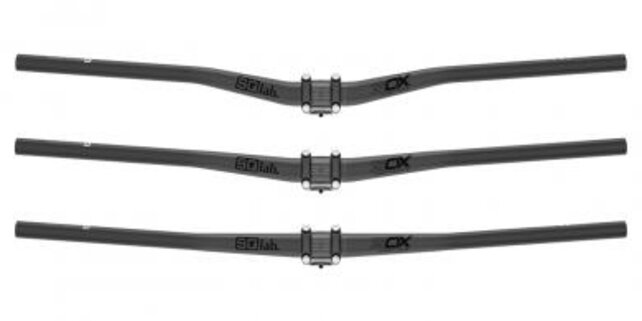

RISE IN MM: 15 / 30 /45
BACKSWEEP IN °: 16
UPSWEEP IN °: 4
DOWNSWEEP IN °: 0
CLAMP DIAMETER IN MM: 31,8
STEM CLAMPING WIDTH IN MM: MIN. 46 - MAX. 58
MAXIMUM TORQUE IN NM: 8
MAXIMUM SYSTEM WEIGHT ALLOWED IN KG: 120
E-BIKE READY: YES
DIN/ASTM CATEGORIES: 5
