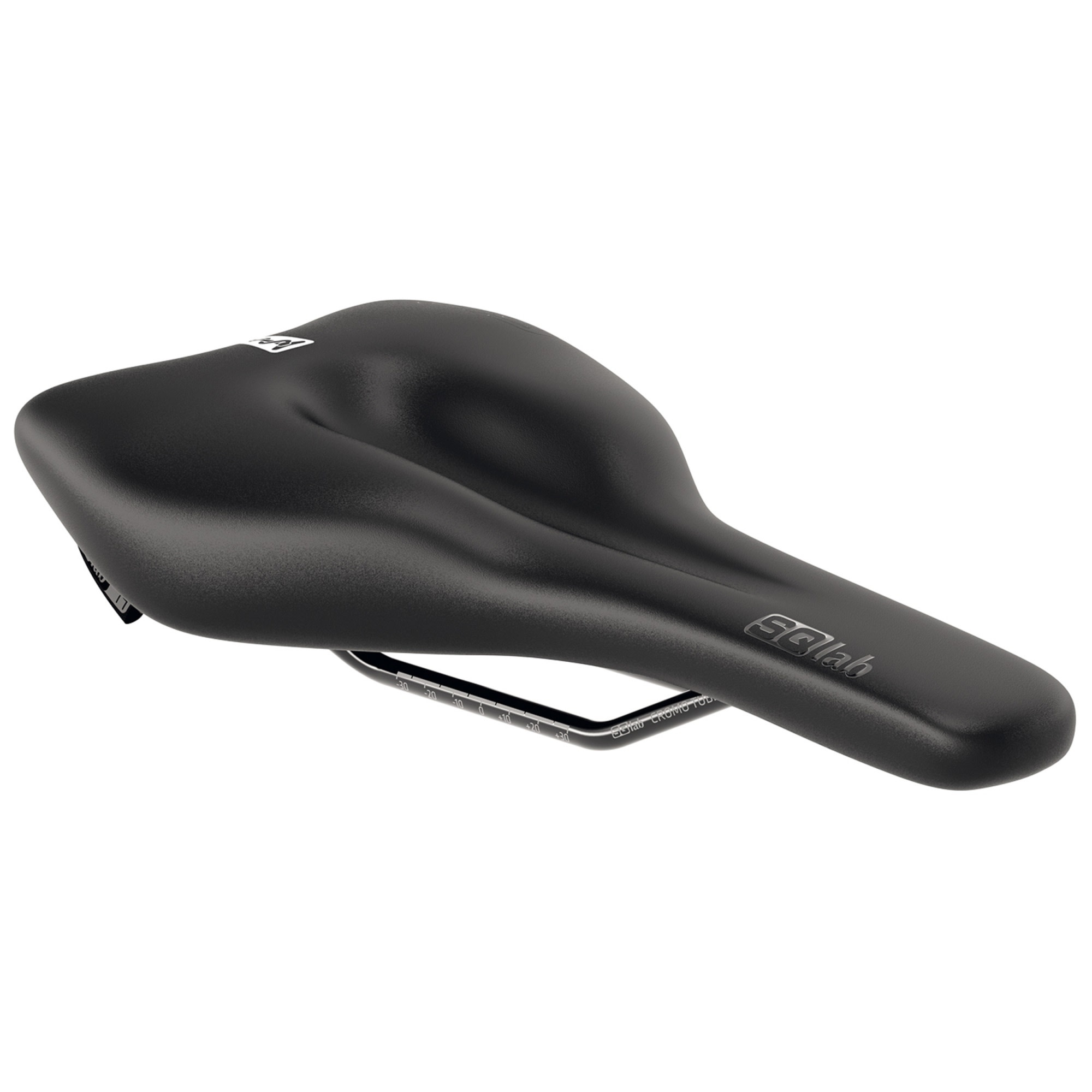

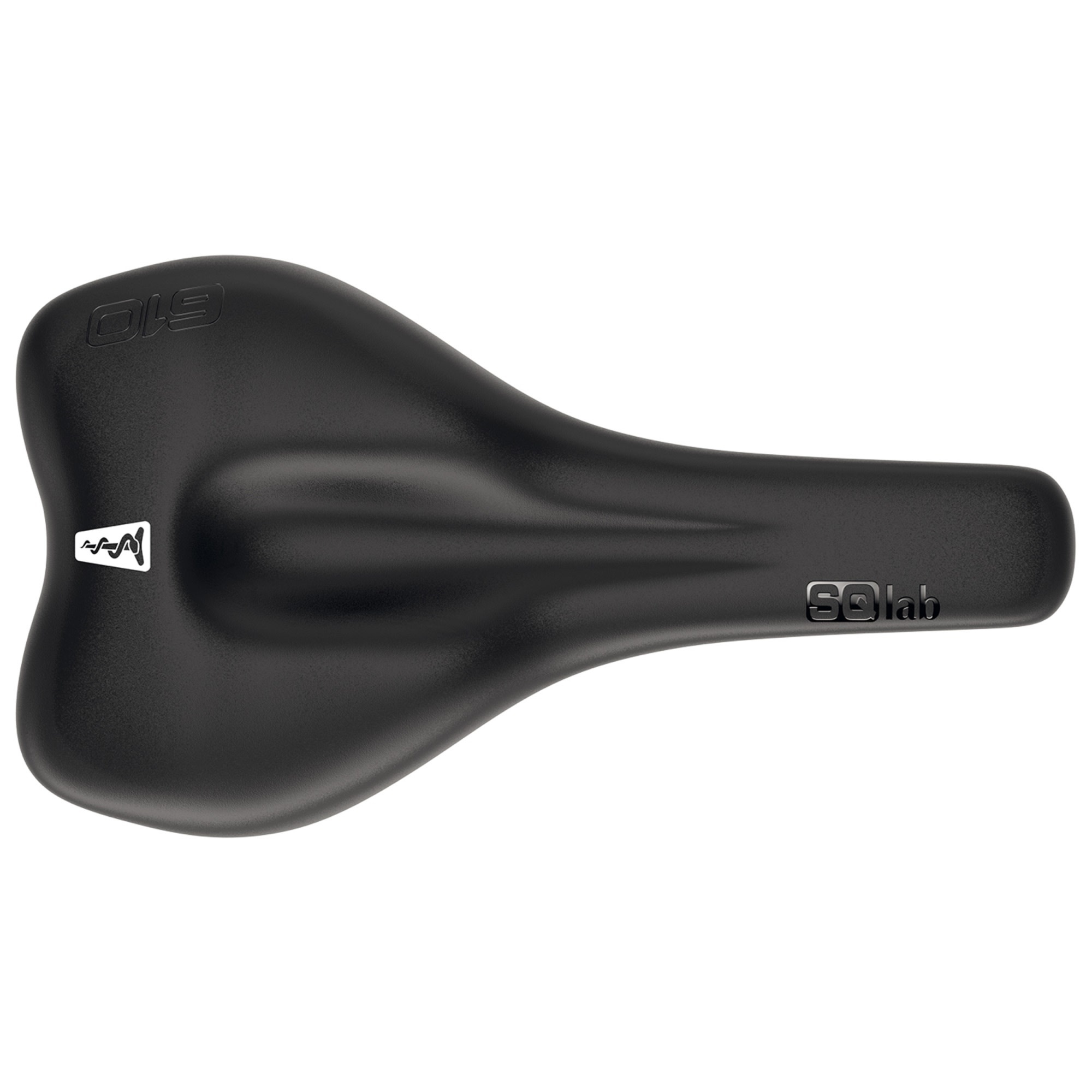

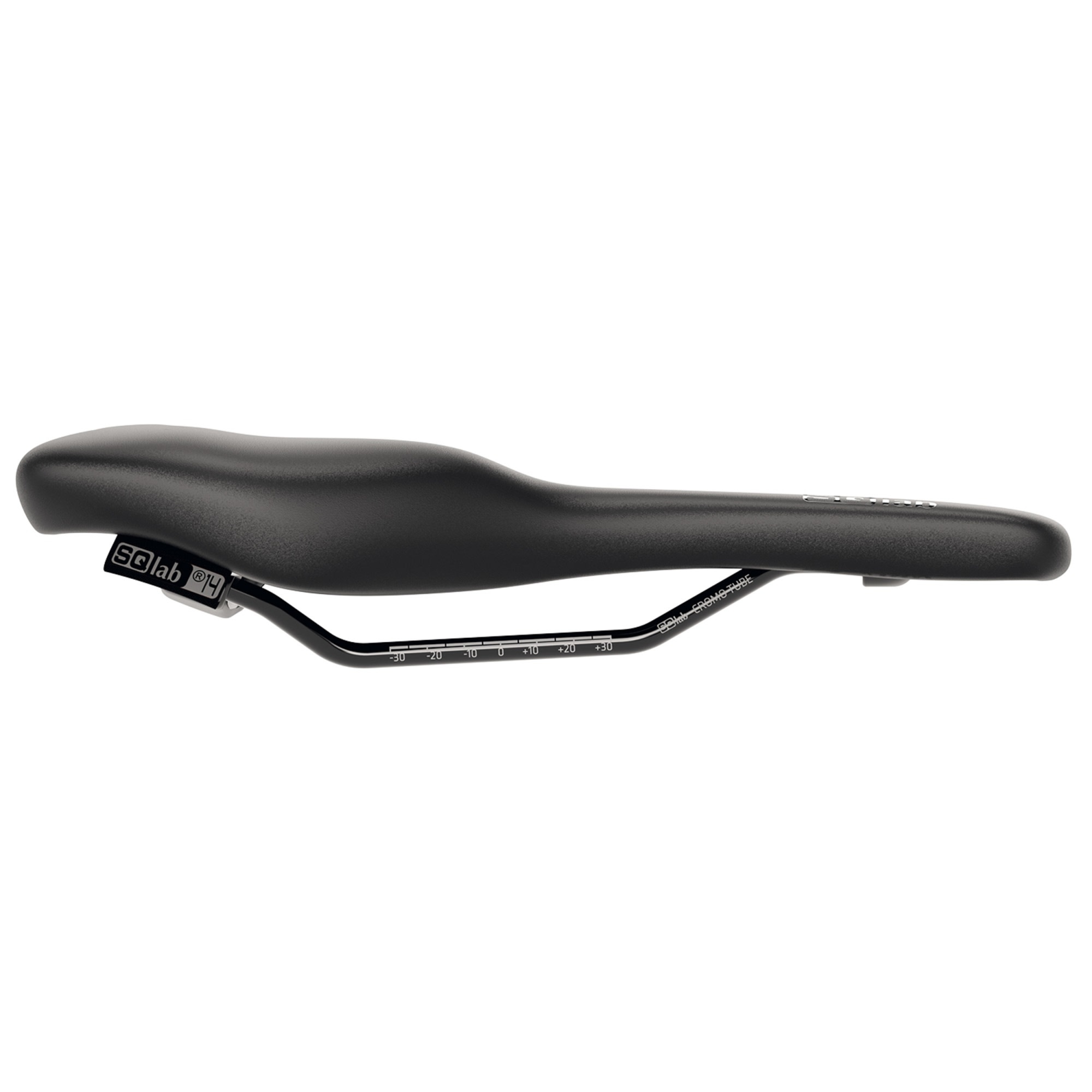

SQLab Saddle 610 M-D active

SKU: 2390
$159.99
Excl. tax

The M-D Line represents a maximum of relief. The M-D Line was developed for maximum relief of sensitive areas. Pressure distribution according to medical criteria. M-D provides maximum dip and, in combination with the high classic step shape, distributes.

The rating of this product is 0 out of 5

(0)
On backorder

M-D Line stands for maximum relief.

The 610 M-D active is suitable for the comfortoriented mountain biker and the sporty trekking rider. The M-D Line was developed for maximum relief of sensitive areas. Pressure distribution according to medical criteria.




WEIGHT

Numerous findings from the development have been incorporated into the shell design, making it significantly lighter.

RELIEF

The M-D line provides maximum dip and, in combination with the high, classic step shape, the body weight is distributed over the sit bones.

COMFORT

Many small improvements in shape add up to a significantly improved level of comfort.

Perfect fit

The prerequisite for optimum relief is a fit that is perfectly suited to the cyclist, because only in this way can the sit bones rest fully and the perineal area be relieved.
Available widths: 14 / 15 / 16 / 17 cm



Maximized dip

Maximum relief of the sensitive areas. The relief of the perineal area is very high with 82%.

Classic Step

The high classic step shape, in combination with the maximized dip, distributes the body weight to the sit bones. A pressure distribution according to medical criteria.

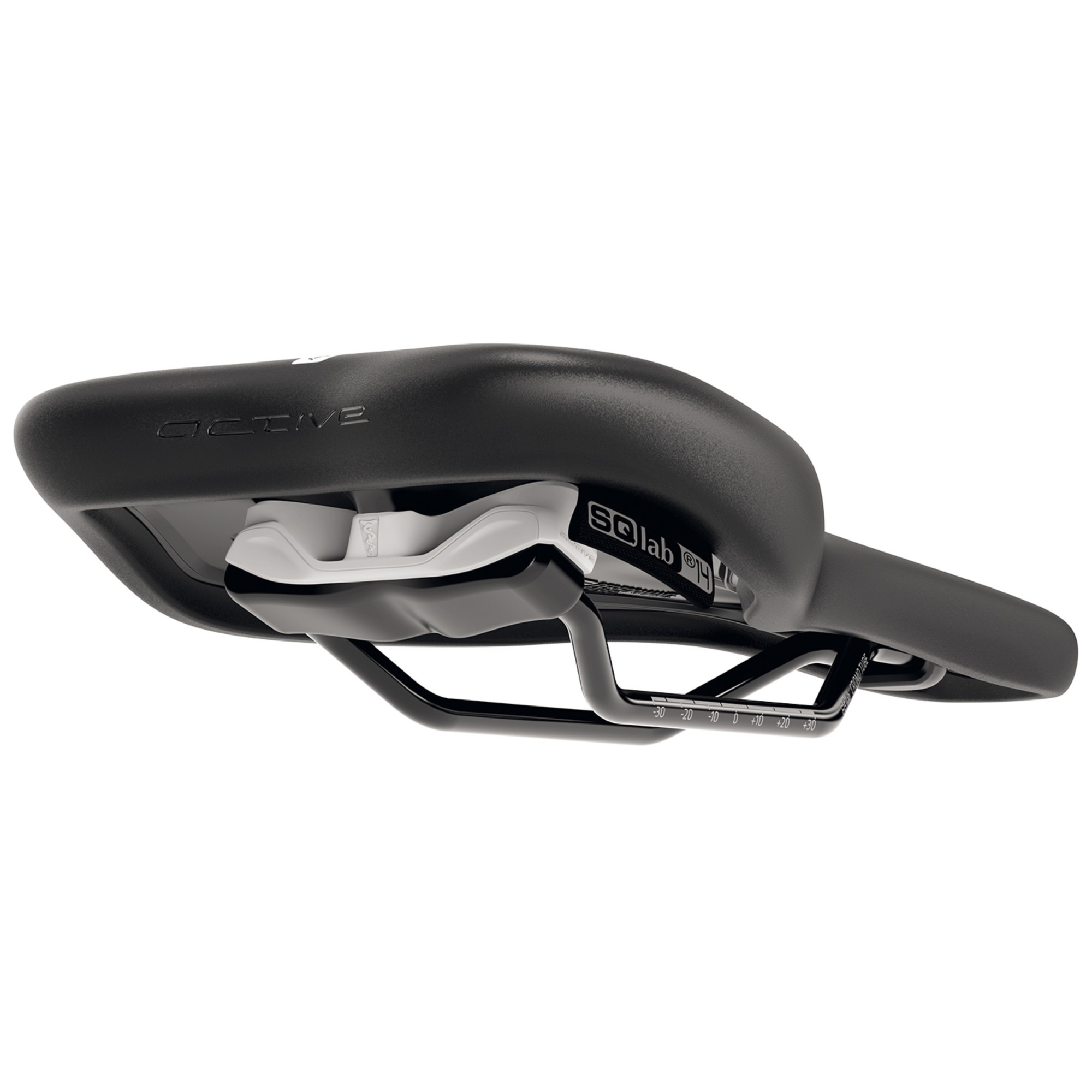

New active-Technology

The new active system has not onlye become lighter, but also much smoother.

The active-movement is even more adjustable in the new models, as the elastomers have become smaller and lighter.



Relief of the intervertebral discs

The SQlab active saddle technology allows the saddle to follow the pedalling movement, which increases comfort, mobilises the intervertebral discs and minimises pressure on the sit bones. Pain in the lumbar region, especially on longer tours, can thus be reduced.

Fine tuning

The SQlab active technology has not only  become lighter but also smoother and is additionally adjustable via elastomers in three degrees of hardness.

Elastomers hard, medium, soft

Elastomers hard, medium, soft


The M-D Line was developed for maximum relief of sensitive areas. A pressure distribution according to medical aspects. M-D Line stands for maximized dip. In combination with the high classic step shape, distributes the body weight to the sit bones.
The 610 M-D has a relief of 82%.

The two-stage ERGOLUX® shape provides balanced pressure distribution between the sit bones and perineal area. The pressure on the sit bones is distributed over a very large area due to the wave shape. The difference in height between the sit bone support and perineal area is less than with the M-D Line, which is consistently designed to relieve pressure.
The 610 ERGOLUX® has a relief of 70%.

Technical specifications

ARTICLE NUMBER(S): 2390 / 2391 / 2392 / 2393

AREA OF USE/BICYCLE TYPE: MTB TOUR & TRAVEL

WEIGHT(S) IN G: APPROX. 365 / 375 / 382 / 400

LENGTH(S) IN MM: APPROX. 285

ACTIVE TECHNOLOGY: YES -SPORT

MOUNTING HEIGHT IN MM: APPROX. 65

SIZE(S) IN CM (EFFECTIVE SADDLE WIDTH): 14 / 15 / 16 / 17

MATERIAL RAILS: CRMO (SOLID)

MATERIAL BASE: GLASS FIBRE REINFORCED POLYAMIDE COMPOUND (PA12 + GF)

MATERIAL PADDING: LIGHT FOAM

MATERIAL COVER: MICROFIBRE

HARDNESS IN SQ-SHORE: 50

RELIEF OF PERINEAL AREA IN %: 82

MAXIMUM LOAD IN KG: 110

MAXIMUM TORQUE IN NM: 18

E-BIKE READY: YES

DIN/ASTM CATEGORIES: 3

GENDER: UNISEX


Description


The M-D Line represents a maximum of relief. The M-D Line was developed for maximum relief of sensitive areas. Pressure distribution according to medical criteria. M-D provides maximum dip and, in combination with the high classic step shape, distributes the body weight to the sit bones.

The 610 M-D active is suitable for the comfort-oriented mountain biker and the sporty trekking rider. The relief of the perineal area is very high at 82%.

The 610 M-D active is equipped with the new active technology with a softer and lighter movement with less weight. The SQlab active saddle technology allows the saddle to follow the pedalling movement, which increases comfort, mobilises the intervertebral discs and minimises pressure on the sit bones. Pain in the lumbar region, especially on longer tours, can thus be reduced. The timeless design adapts perfectly to any bicycle.
