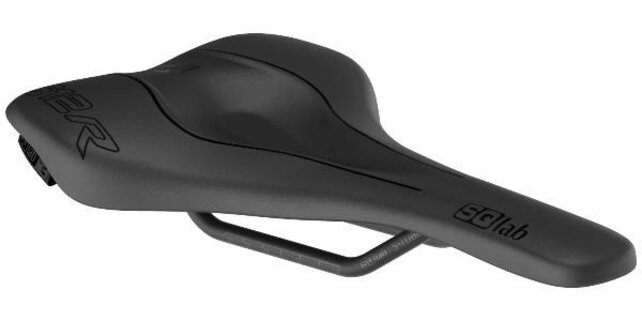

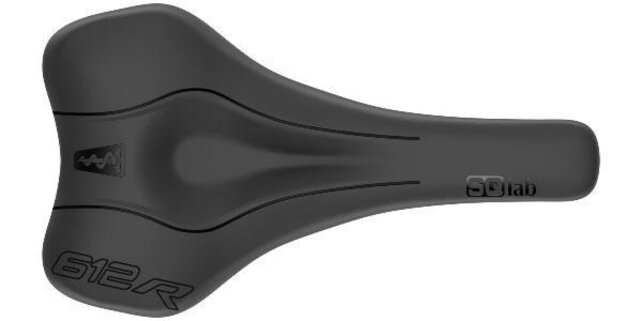

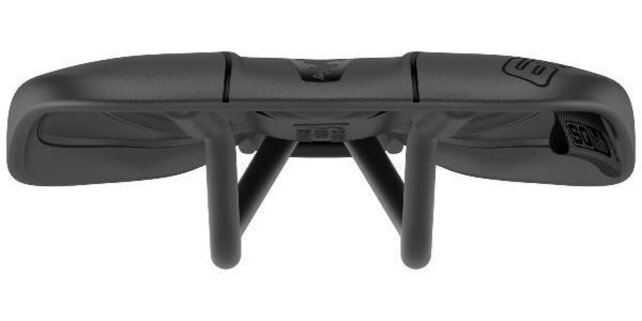

SQLab Saddle, 612R, Road, Ergowave, Non-Active, Ti/S-Tube, 14cm

Shorter - Narrower - Lighter - Faster

More performance based ergonomics from 165 g.

The raised rear gives more grip and better power transmission. A big advantage is on straight roads and especially uphill. The stronger narrower mid-section and the narrow saddle nose gives more legroom.

The proven SQlab ERGOWAVE® form relieves the soft tissue area and prevents energy- consuming bad posture. The saddle shell is weight and flex optimized down to the last detail. More longitudinal stiffness and perfectly coordinated material flex to the side mean more comfort with less weight at the same time.

The cover is extremely light but also abrasion-resistant and non-slip. The padding is closed-cell and strongly minimised. The comfort comes from the shape and the flex behaviour between rail - shell - foam, which is coordinated as an overall system.

Racers combine the saddle with the SQ-Short One12.

TECHNICAL SPECIFICATIONS

ARTICLE NUMBER(S): 2296 / 2297 / 2298 / 2521

AREA OF USE/BICYCLE TYPE: ROAD / MTB RACE

SITTING POSITION(S): TRIATHLON (+0 CM) / STRETCHED (+1 CM)

WIEGHT(S) IN G: APPROX. 165 / 168 / 170 / 175

ACTIVE TECHNOLOGY: NO

MOUNTING HEIGHT IN MM: APPROX. 45

SIZE(S) IN CM (EFFECTIVE SADDLE WIDTH): 12 / 13 / 14 / 15

LENGTH IN MM: APPROX. 252

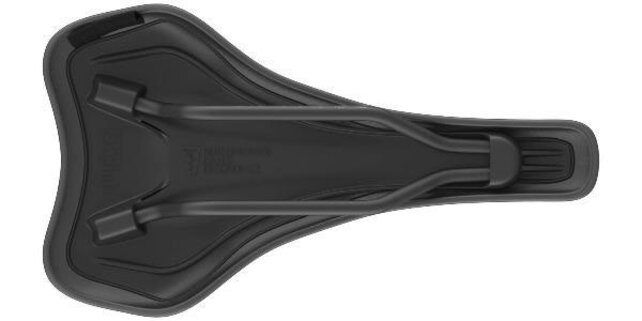

MATERIAL RAILS: S-TUBE (LIGHT METAL ALLOY - HOLLOW)

MATERIAL BASE: CARBON FIBRE REINFORCED POLYAMIDE COMPOUND (PA12 + CF)

MATERIAL PADDING: SUPERLIGHT FOAM

MATERIAL COVER: MICROFIBRE

HARDNESS IN SQ-SHORE: 60

RELIEF OF PERINEAL AREA IN %: 63

MAXIMUM LOAD IN KG: 90

MAXIMUM TORQUE IN NM: 18

E-BIKE READY: NO

DIN / ASTM CATEGORIES: 4, 6 / 4

GENDER: UNISEX
