Description at a glance:

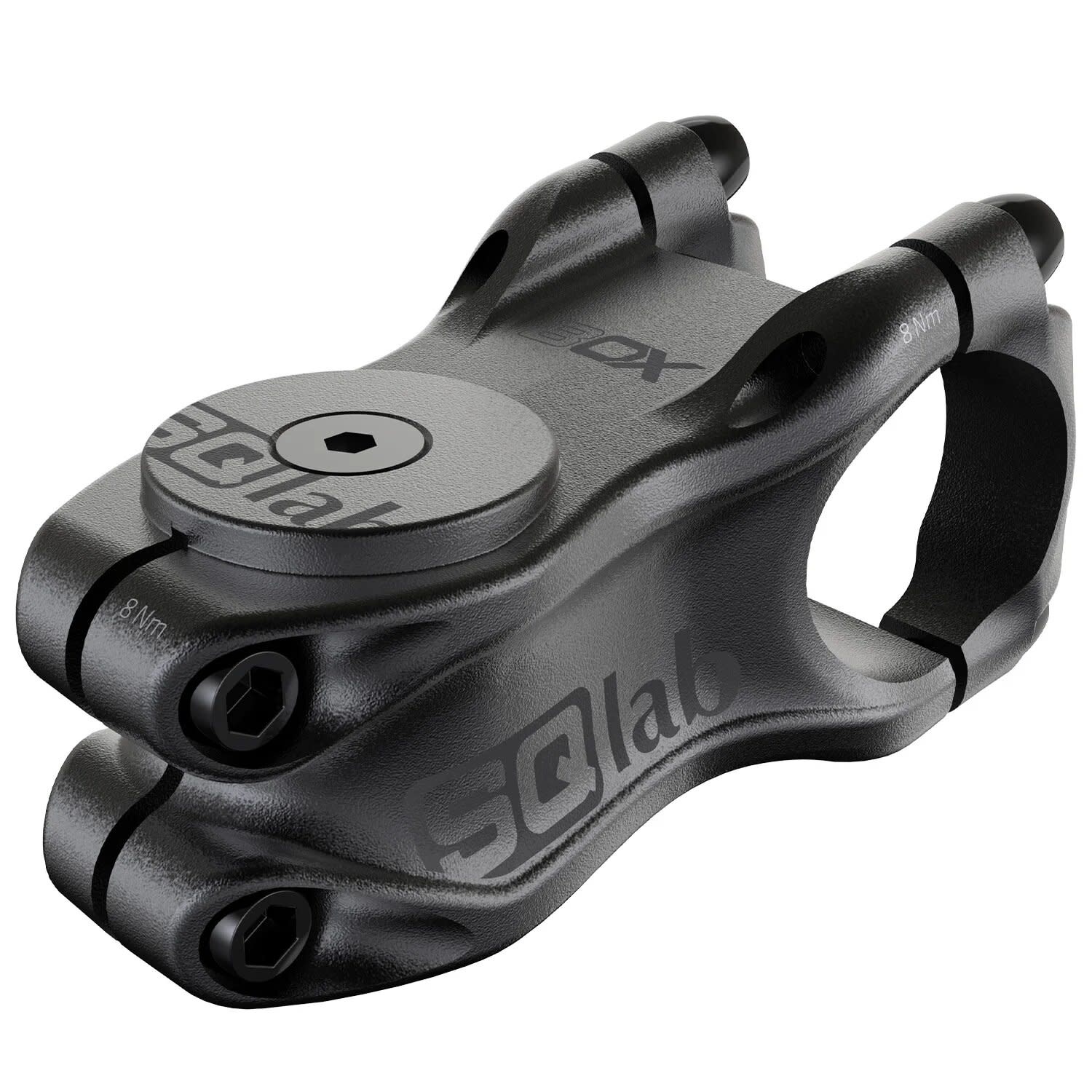

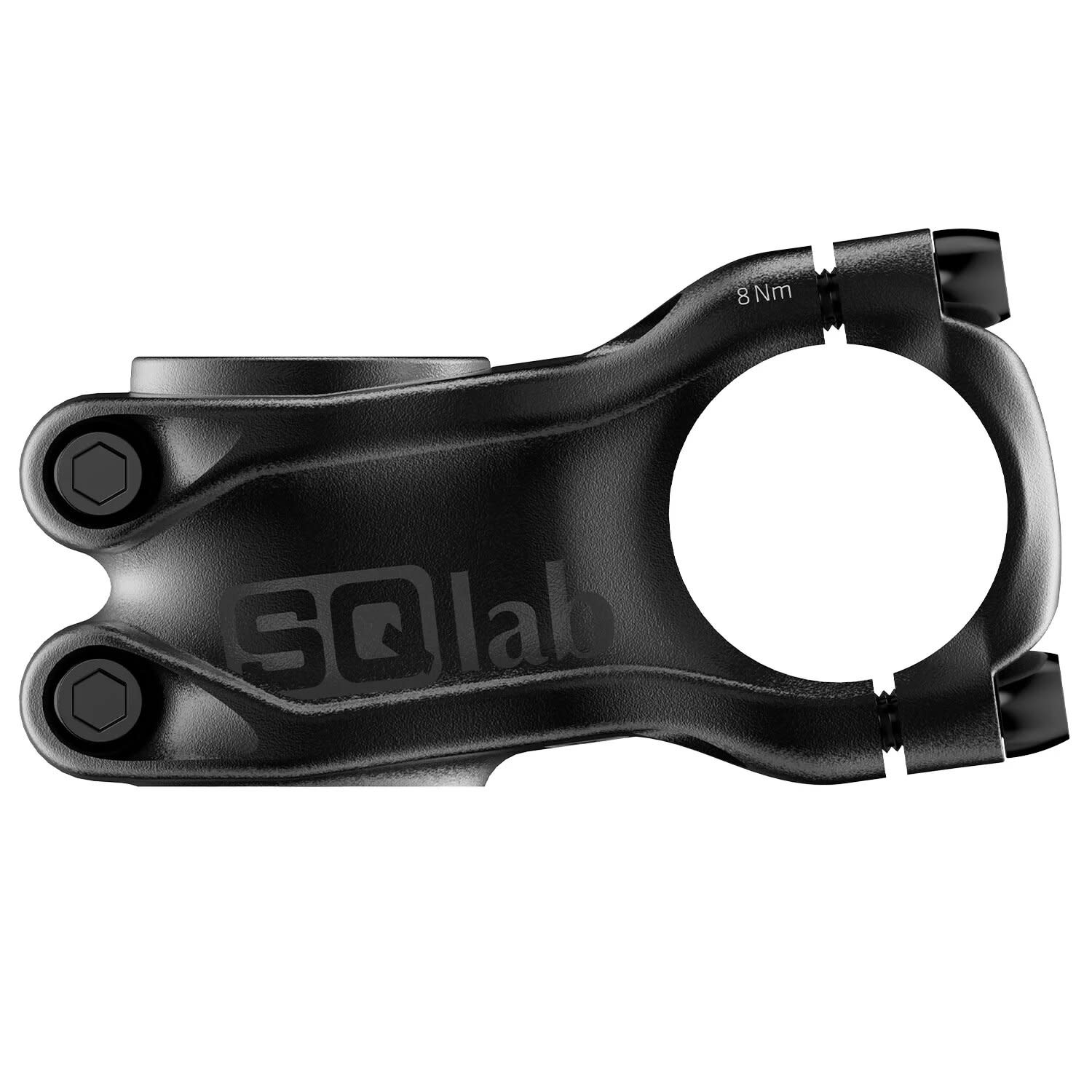

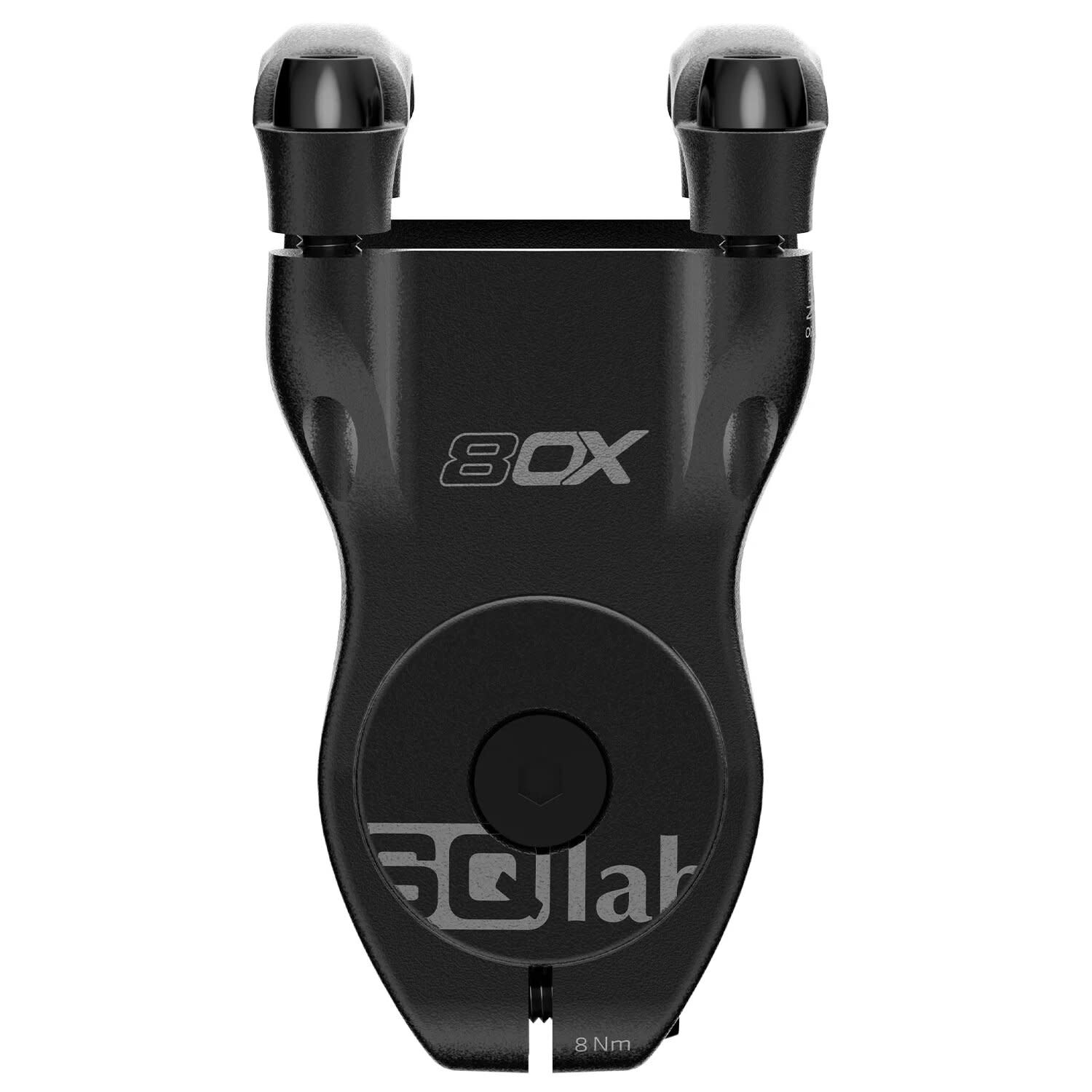

Light, stable and withstands the force of the handlebars. If a handlebar stem were to evolve across many generations like nature’s plants and continuously adapt and perfect itself over a very long period of time, then it would probably look like this.
Technical specifications at a glance:
ARTICLE NUMBER(S): 2313 / 2063 / 2064 / 2065 /2066 / 2067 / 2068 / 2069 / 2070
AREA OF USE/BICYCLE TYPE: MTB GRAVITY & E-PERFORMANCE
WEIGHT(S) IN G: APPROX. 138
MATERIAL: ALUMINIUM 7050
MATERIAL SCREWS: STEEL STEM ANGLE IN °: +6
LENGTH(S) IN MM: 35, 50, 60, 70, 80, 90, 100, 110, 120
CLAMP DIAMETER HANDLEBAR IN MM: 31,8
CLAMP WIDTH HANDLEBAR IN MM: 50
CLAMP DIAMETER HEAD TUBE IN MM: 28,6
CLAMP HEIGHT HEAD TUBE IN MM: 39
RISE IN MM: 3,7 / 5,2 / 6,3 / 7,3 / 8,4 / 9,4 / 10,5 / 11,5 / 12,5
REACH IN MM: 34,8 / 49,7 / 59,7 / 69,6 / 79,6 / 89,5 / 99,5 / 109,4 / 119,3
MINIMUM HEAD TUBE OVERLAP IN MM: 32
MAXIMUM TORQUE IN NM: 8
E-BIKE READY: YES
DIN/ASTM CATEGORIES: 5
| Brand | SQlab |
| Article code | 11809 |
| SKU | 2313 |
