Tui Zele SL Road Bike Crankset ALS - 8-Bolt Direct Mount - 24mm Spindle
- In Stock Items Will ship in 2-3 business days
- Special Order Items will be ordered for you and shipped when available
- More information? Contact us about this product
- Add to comparison list
A lightweight crank option for shorter than average lengths. Available in 140 to 155mm these road and gravel bike cranks use a flip chip to adjust crank length as needed. 8-bolt direct mount and 24mm spindle mean full compatibility with all bikes and components.

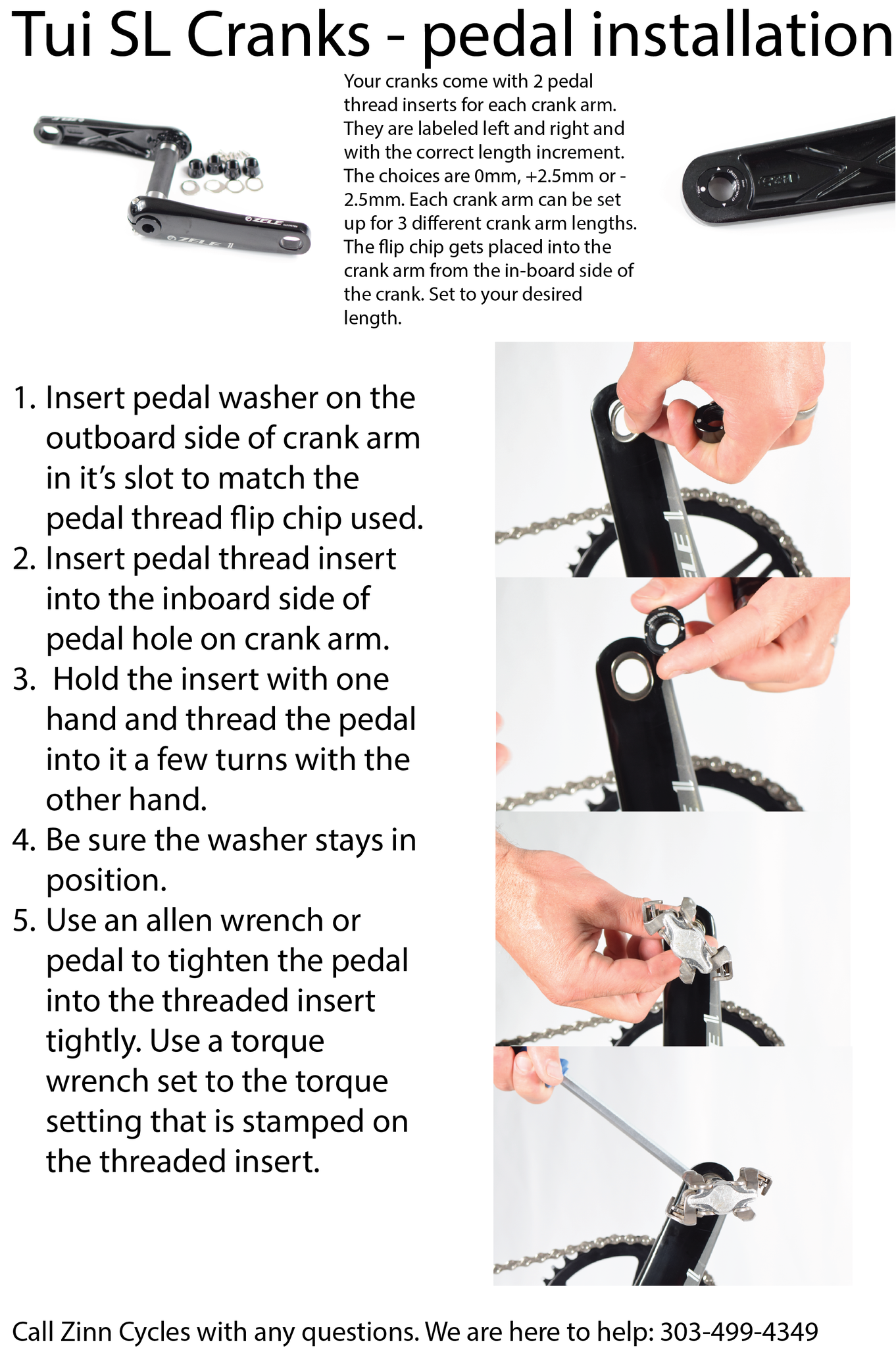

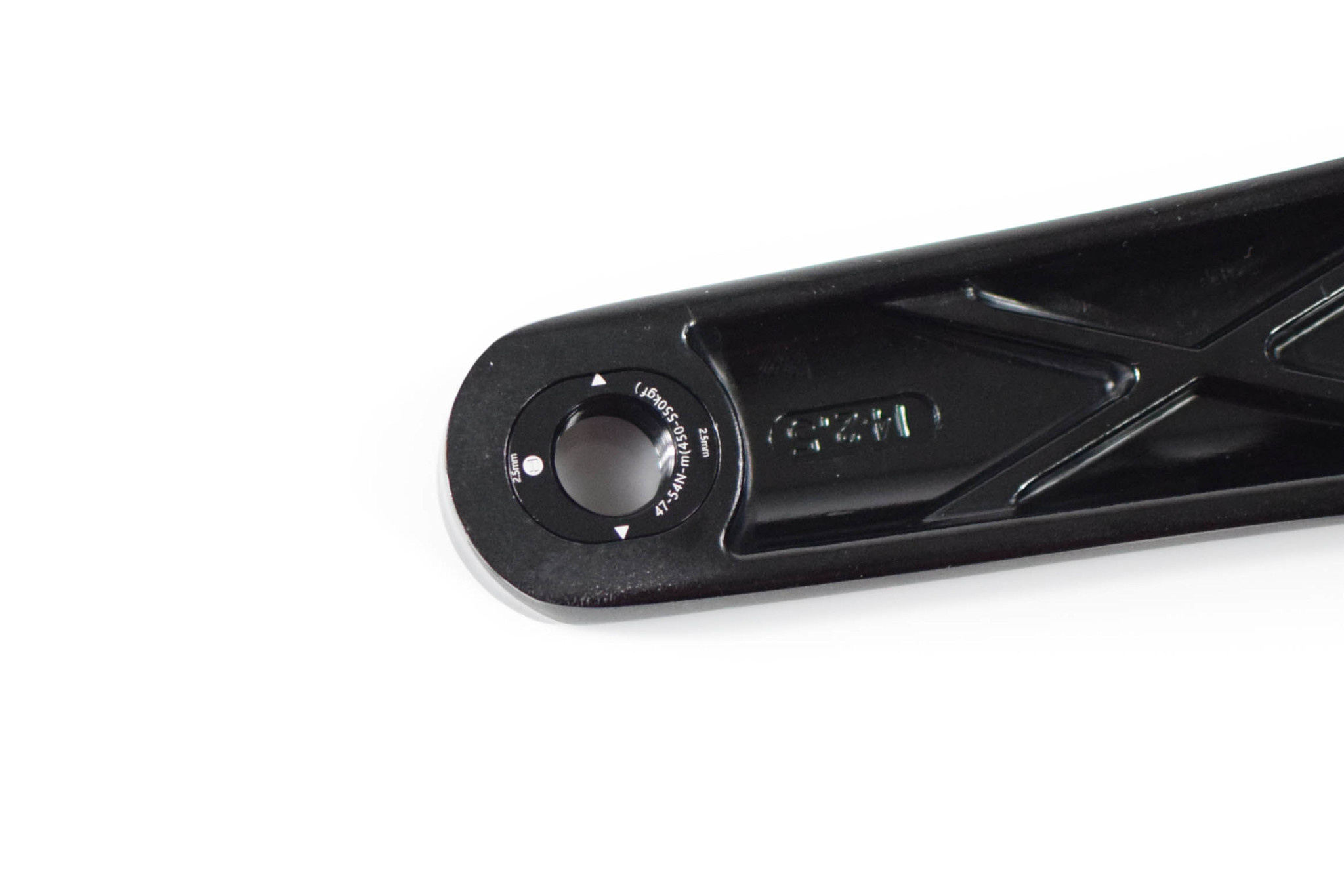

Similar to many gravel bike forks on the market that have adjustable rake, these cranks use a flip chip for adjustable length. Each crank can be adjusted to 3 different lengths. The 140mm option can be set to either 140mm, 142.5mm, or 145mm. The 150mm option can be adjusted to 150mm, 152.5mm or 155mm. The pedal simply threads into the flip chip, and when set to the proper torque, is equally as strong as any other crank.

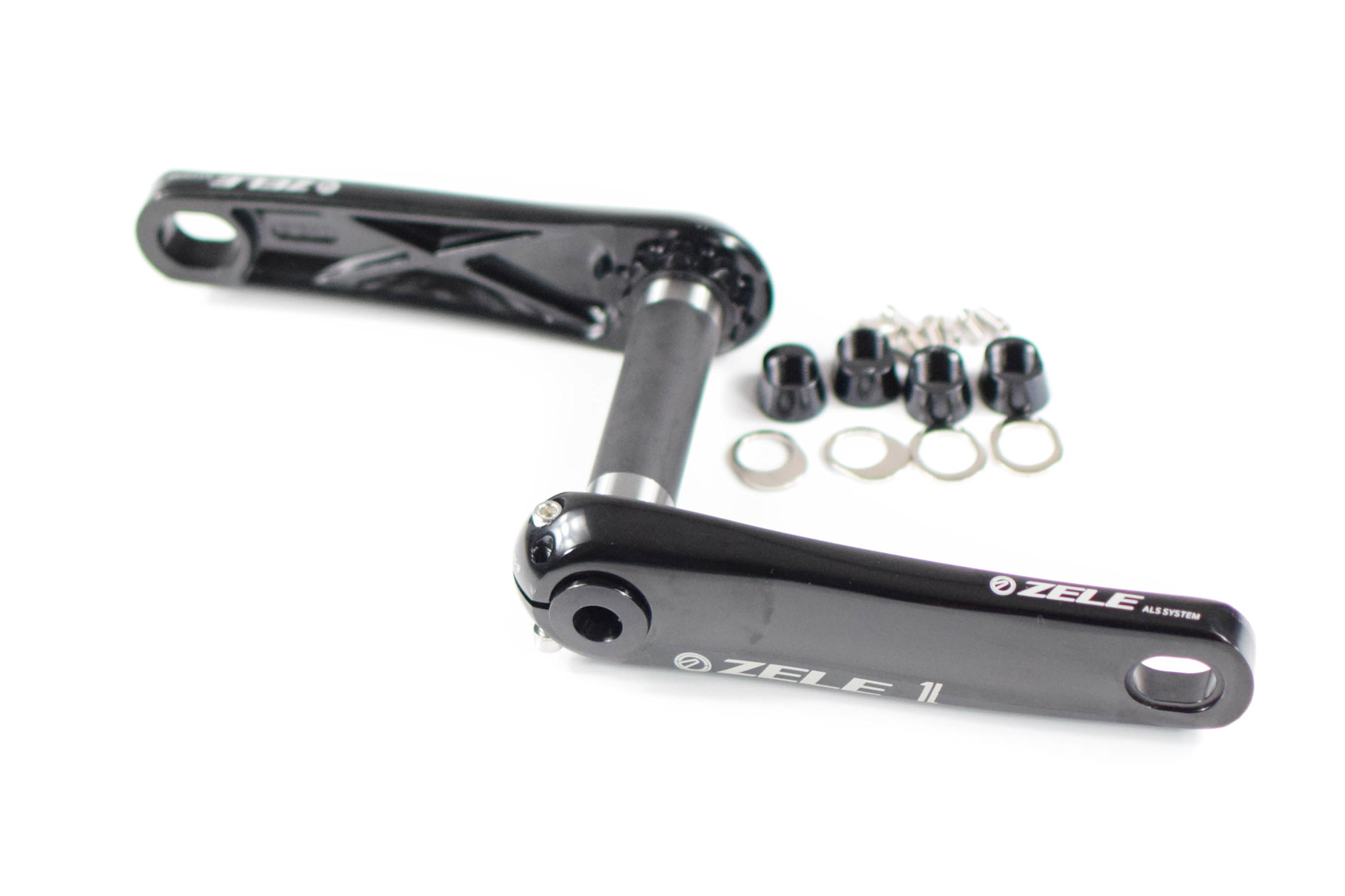

Cranks include:
AL HP Black Anodized Crank (ALS) W/ Ø24‐24mm spindle & BSA BB
W/ 2pcs Pinch Bolt for NDS Crank (Nylok)
W/ 1pcs M19 Clamp Bolt for NDS Crank (Nylok)
W/ 4pcs ALS Insert & 4pcs Pedal Washer W/ Driveline Logo
*Chainline: 43.5mm
*Q‐factor: 146±2mm (outside of the crank arm) *BB cups: BC‐1.37x24/68mm
*BB axle: Cromoly
*Chainring/Spider interface: Sram 8‐bolt Direct Mount
*Weight: Crank arms and spider only: 700grams for 150mm length
| Brand | Tui |
| SKU | Zele-A12X-OS-140 |
