Wheels Mfg Bottom Bracket - 386EVO Angular Contact BB for 30mm Cranks

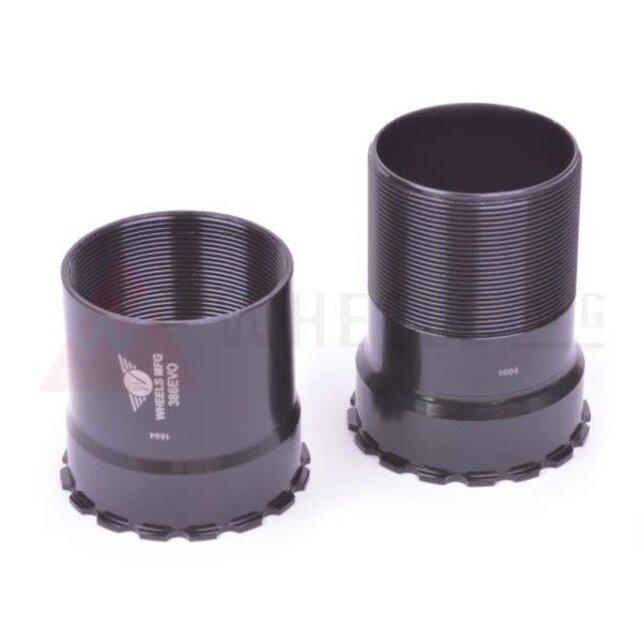

Thread together BB for 386EVO and BBRIGHT frames and 30mm spindle diameter cranks. Machined aluminum cups thread together for stability, increased bearing life, and simple installation and maintenance.
- In Stock Items Will ship in 2-3 business days
- Special Order Items will be ordered for you and shipped when available
- More information? Contact us about this product
- Add to comparison list

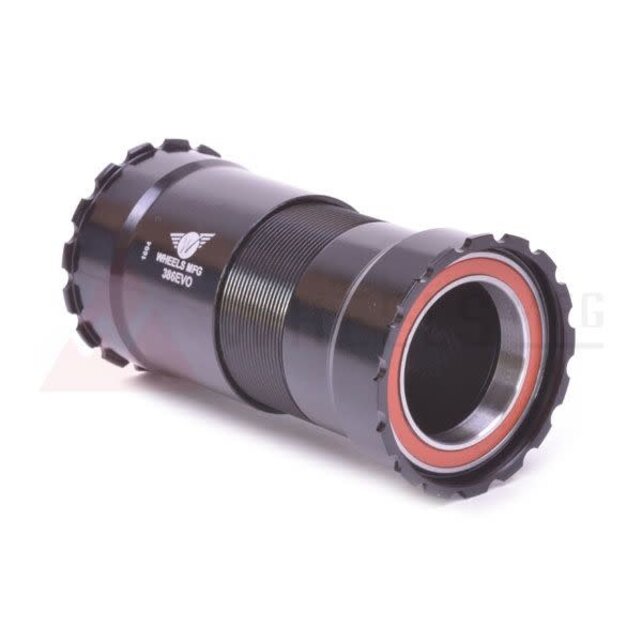

386EVO Angular Contact BB for 30mm Cranks - Black
Thread together BB for 386EVO and BBRIGHT frames and 30mm spindle diameter cranks. Machined aluminum cups thread together for stability, increased bearing life, and simple installation and maintenance.
No more creaking. Smooth operation. Fast bearing replacement.
- Bearings: Enduro Angular Contact
- Color: Black
- Bottom Bracket/Frame Interface: BB386EVO, BBRIGHT, PF30/83
- Bottom Bracket Shell Width (mm): 79mm - 92mm
- Bottom Bracket Shell I.D.: 46mm
- Crank Spindle Diameter: 30mm
- Over Bearing Width: 86.5mm in 86.5mm wide shell
- Weight: 124g
- Will accept 24mm and 24/22mm cranksets using Wheels Mfg. 386EVO BB / Crank Adapters
- Over Bearing Width Dimensions include supplied silicone dust shields.
Compatible with the following Bottom Bracket Standards (46mm BB shell ID, 86mm - 92mm wide BB shell) and 30mm diameter spindle cranks:
- BB386EVO
- BB392EVO
- BBRIGHT
- PF30 with 83mm wide BB shell (downhill)
Note:
- If used with Quarq Powermeter cranks, please see our Compatibility Issues page for known issues.
Installation & Removal
- (PRESS-7 or PRESS-7-PRO) Universal Bottom Bracket Press
- (WRENCH-BB48-44) Wheels Mfg Double End BB Wrench, 16-notch BB tool - 48.5 / 44mm
- (BBTOOL-48-44) Wheels Mfg Bottom Bracket Socket - 48.5 / 44mm
Note: if your BB shell is slightly oversize, two BB wrenches may be required to fully tighten cups in frame.
Bearing Service
- (PRESS-9-PRO) Professional Bottom Bracket Tool Kit
- (BB-EXT) Bottom Bracket Sealed Bearing Extractor Set
| Brand | Wheels Manufacturing |
| Article code | 1863 |
| SKU | 386EVO-BB-AC |
