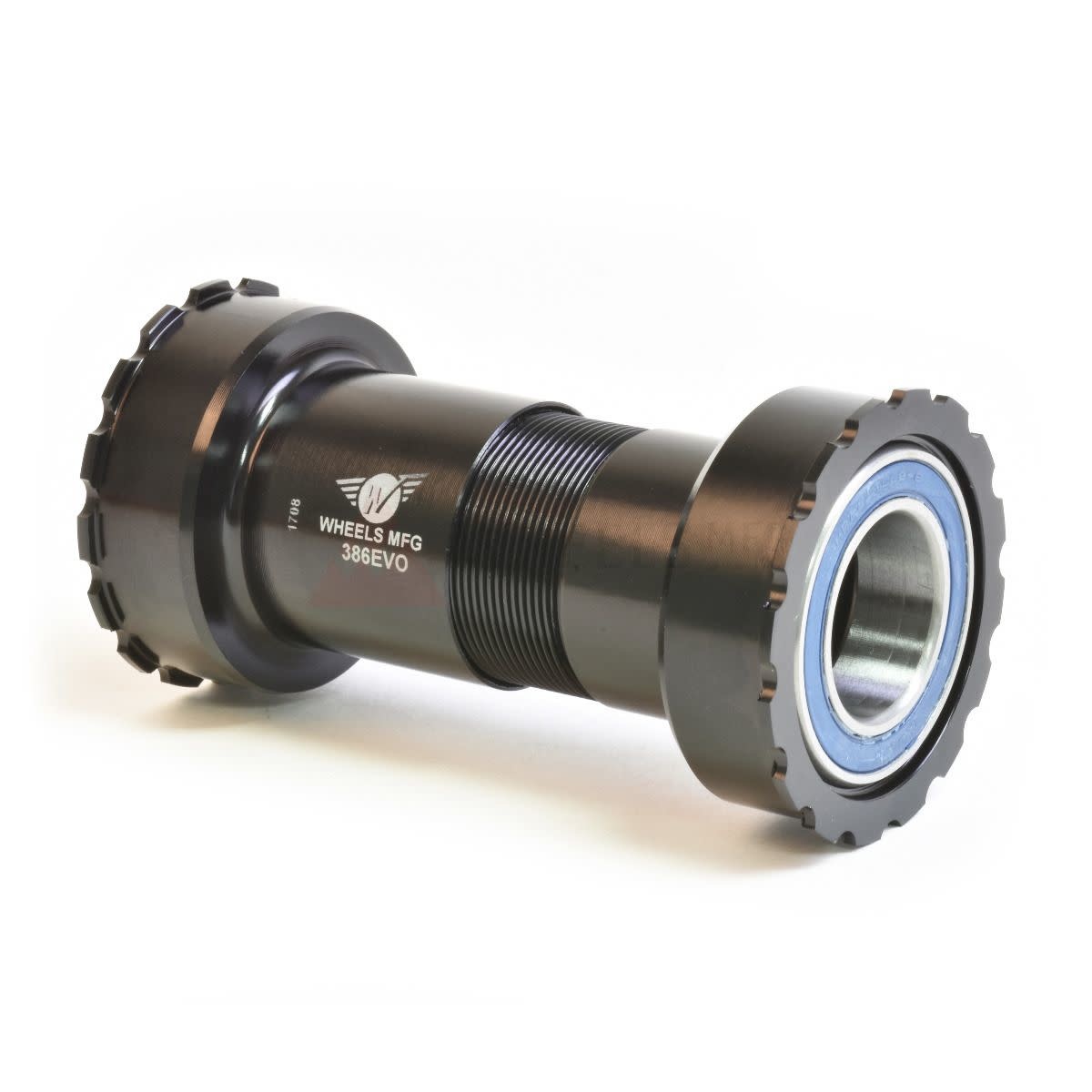

Wheels Mfg Bottom Bracket - 386EVO,24mm, Angular Contact
Thread together BB for 386EVO frames and 22/24mm diameter spindle cranks. Machined aluminum cups thread together for stability, increased bearing life, and simple installation and maintenance.
- In Stock Items Will ship in 2-3 business days
- Special Order Items will be ordered for you and shipped when available
- More information? Contact us about this product
- Add to comparison list
386EVO Angular Contact BB for 24/22mm (SRAM) Cranks - Black
Thread together BB for 386EVO frames and 22/24mm diameter spindle cranks. Machined aluminum cups thread together for stability, increased bearing life, and simple installation and maintenance.
No more creaking. Smooth operation. Fast bearing replacement.
- Drive Side Bearing: Enduro Angular Contact
- Non-Drive Side Bearing: Enduro ABEC-3
- Color: Black
- Bottom Bracket/Frame Interface: BB386EVO, BB392EVO
- Bottom Bracket Shell Width (mm): 86mm - 92mm
- Bottom Bracket Shell I.D.: 46mm
- Crank Spindle Diameter: 22/24mm
- Over Bearing Width: 91.8mm in 86.5mm wide shell
- Weight: 145g
- Over Bearing Width Dimensions include supplied silicone dust shields.
Compatible with the following Bottom Bracket Standards (46mm BB shell ID, 86mm - 92mm wide BB shell) and 24.00mm diameter spindle cranks*:
- BB386EVO
- BB392EVO
Note:
- If used with Quarq powermeters, please see our Compatibility Issues page for known issues.
Installation & Removal
- (PRESS-7 or PRESS-7-PRO) Universal Bottom Bracket Press
- (WRENCH-BB48-44) Wheels Mfg Double End BB Wrench, 16-notch BB tool - 48.5 / 44mm
- (BBTOOL-48-44) Wheels Mfg Bottom Bracket Socket - 48.5 / 44mm
Note: if your BB shell is slightly oversize, two BB wrenches may be required to fully tighten cups in frame.
Bearing Service
- (PRESS-9-PRO) Professional Bottom Bracket Tool Kit
- (BB-EXT) Bottom Bracket Sealed Bearing Extractor Set
| Brand | Wheels Manufacturing |
| Article code | 1961 |
| SKU | 386EVOBB-SRAMAC |
