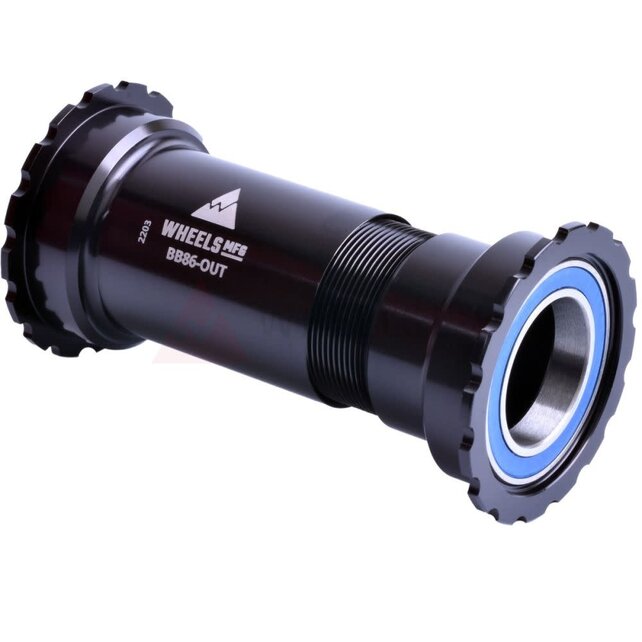

Wheels Mfg Bottom Bracket - BB86/92 Thread Together ABEC-3 BB for 24mm (Shimano) Cranks
Threaded BB for BB86, BB92 and PF90 frames and 24mm diameter spindle cranks. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.
- In Stock Items Will ship in 2-3 business days
- Special Order Items will be ordered for you and shipped when available
- More information? Contact us about this product
- Add to comparison list
BB86/92 Thread Together ABEC-3 BB for 24mm (Shimano) Cranks - Black
Threaded BB for BB86, BB92 and PF90 frames and 24mm diameter spindle cranks. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.
No more creaking. Smooth operation. Fast bearing replacement.

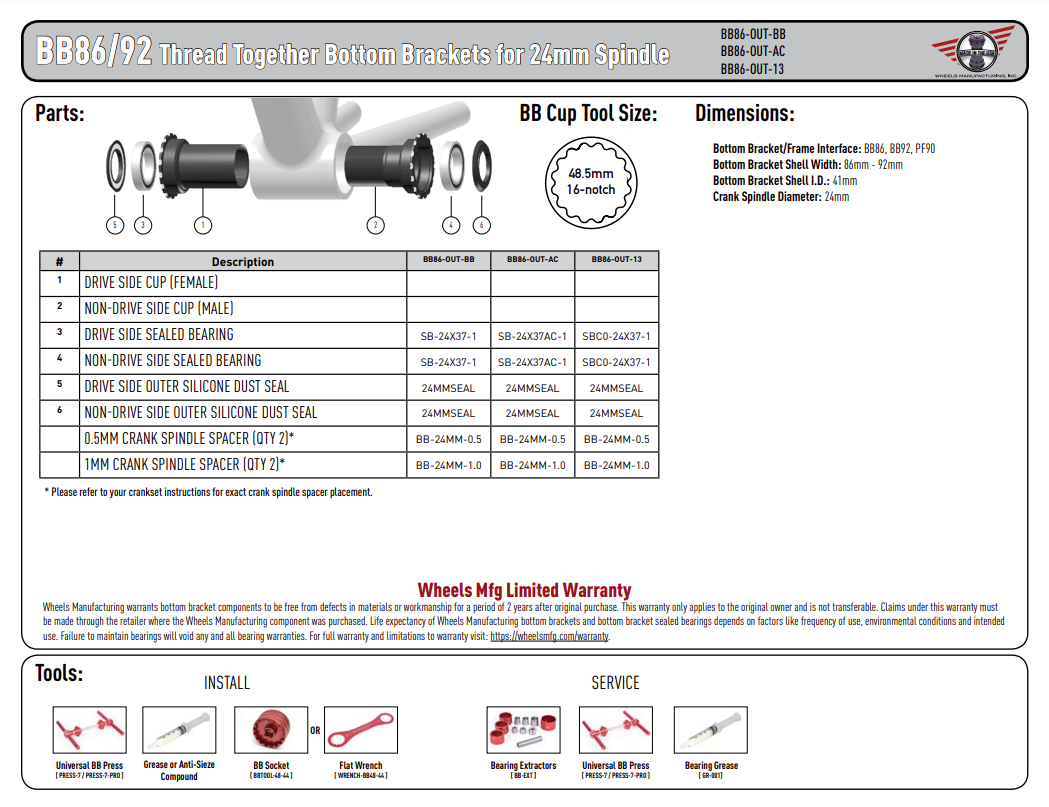

- Bearings: Enduro ABEC-3
- Color: Black
- Bottom Bracket/Frame Interface: BB86, BB92, PF90
- Bottom Bracket Shell Width: 86mm - 92mm
- Bottom Bracket Shell I.D.: 41mm
- Over Bearing Width: 93mm in 86.5mm wide shell*
- Crank Spindle Diameter: 24.00mm
- Tool Pattern: 48.5mm x 16 notch
- Weight: 106g
* Over Bearing Width Dimensions include supplied silicone dust shields.
Compatible with the following Bottom Bracket Standards (41mm BB shell inner diameter, 86mm - 92mm width):
- BB86
- BB92
- PF90 (Trek)
Compatible with 24.00mm spindle diameter cranksets.

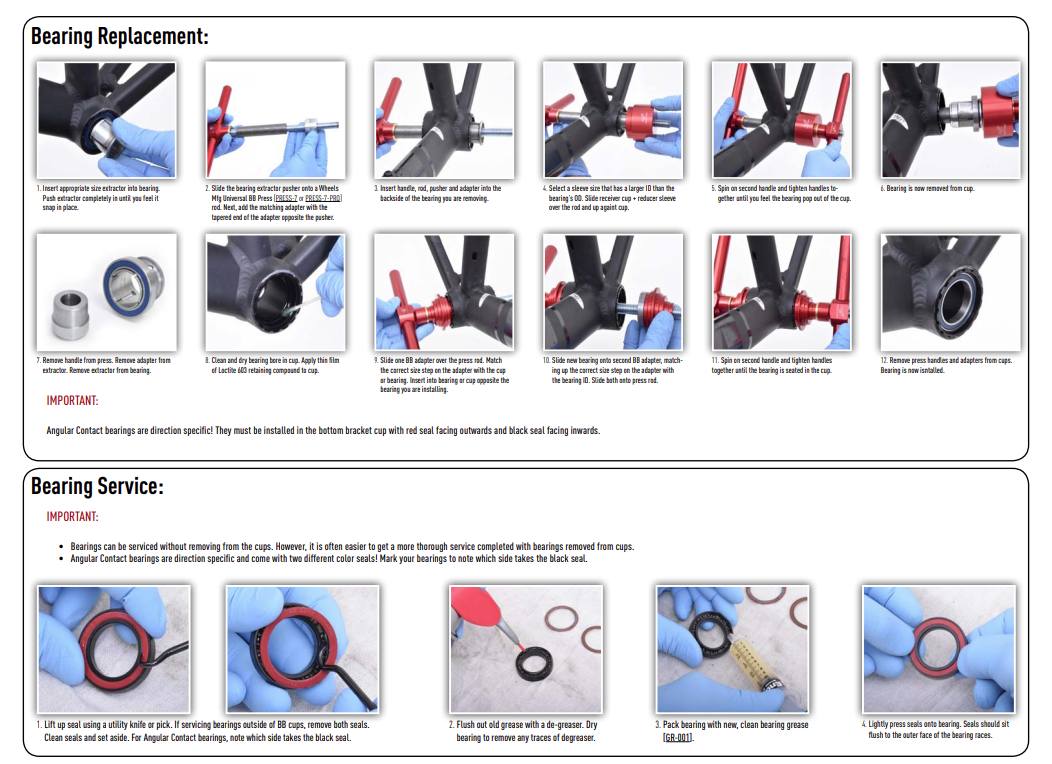

- (PRESS-9-PRO) Bottom Bracket Service Kit
- (PRESS-7 or PRESS-7-PRO) Universal Bottom Bracket Press
- (BB-EXT) Bottom Bracket Sealed Bearing Extractor Set
- (WRENCH-BB48-44) Wheels Mfg Double End BB Wrench, 16-notch BB tool - 48.5 / 44mm
- (BBTOOL-48-44) Wheels Mfg Bottom Bracket Socket - 48.5 / 44mm

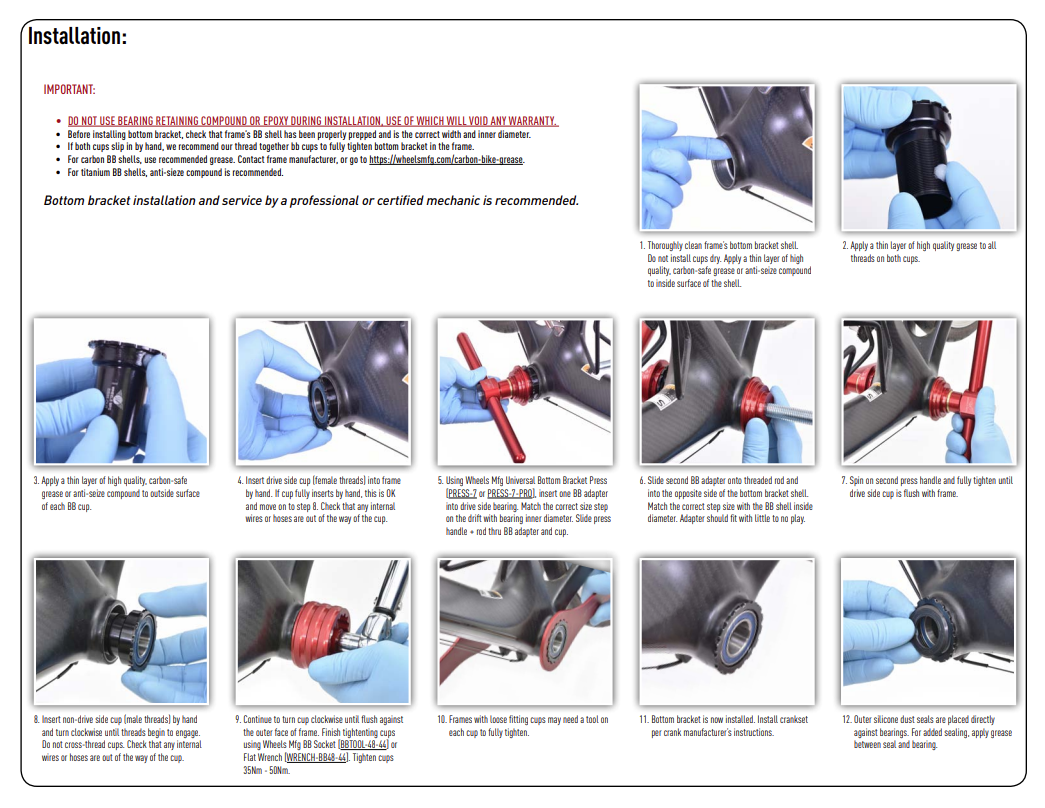

Note: if your BB shell is slightly oversize, two BB wrenches may be required to fully tighten cups in frame.
| Brand | Wheels Manufacturing |
| Article code | 1889 |
| SKU | BB86-OUT-BB |
