Wheels Mfg Bottom Bracket - BB86/92 Thread Together ABEC-3 BB for 24/22mm (SRAM) Cranks
Threaded BB for BB86, BB92 and PF90 frames and 22/24mm diameter spindle (GXP) cranks. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.
- In Stock Items Will ship in 2-3 business days
- Special Order Items will be ordered for you and shipped when available
- More information? Contact us about this product
- Add to comparison list
BB86/92 Thread Together ABEC-3 BB for 24/22mm (SRAM) Cranks - Black
Threaded BB for BB86, BB92 and PF90 frames and 22/24mm diameter spindle (GXP) cranks. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.
No more creaking. Smooth operation. Fast bearing replacement.
- Bearings: Enduro ABEC-3
- Color: Black
- Bottom Bracket/Frame Interface: BB86, BB92, PF90
- Bottom Bracket Shell Width: 86mm - 92mm
- Bottom Bracket Shell I.D.: 41mm
- Over Bearing Width: 93mm in 86.5mm wide shell*
- Crank Spindle Diameter: 22/24mm
- Tool Pattern: 48.5mm x 16 notch
- Weight: 121g
* Over Bearing Width Dimensions include supplied silicone dust shields.
Compatible with the following Bottom Bracket Standards (41mm BB shell inner diameter, 86mm - 92mm width):
- BB86
- BB92
- PF90 (Trek)
Compatible with 22/24mm spindle diameter GXP cranksets.
Notes:
- Wheels Mfg BB86 thread-together BB for use with 24/22mm spindle cranks will not work with the following Quarq / SRAM powermeters: Elsa, Riken, S975, S2275, CinQo Saturn, Saturn2 and Eagle.
- (PRESS-9-PRO) Bottom Bracket Service Kit
- (PRESS-7 or PRESS-7-PRO) Universal Bottom Bracket Press

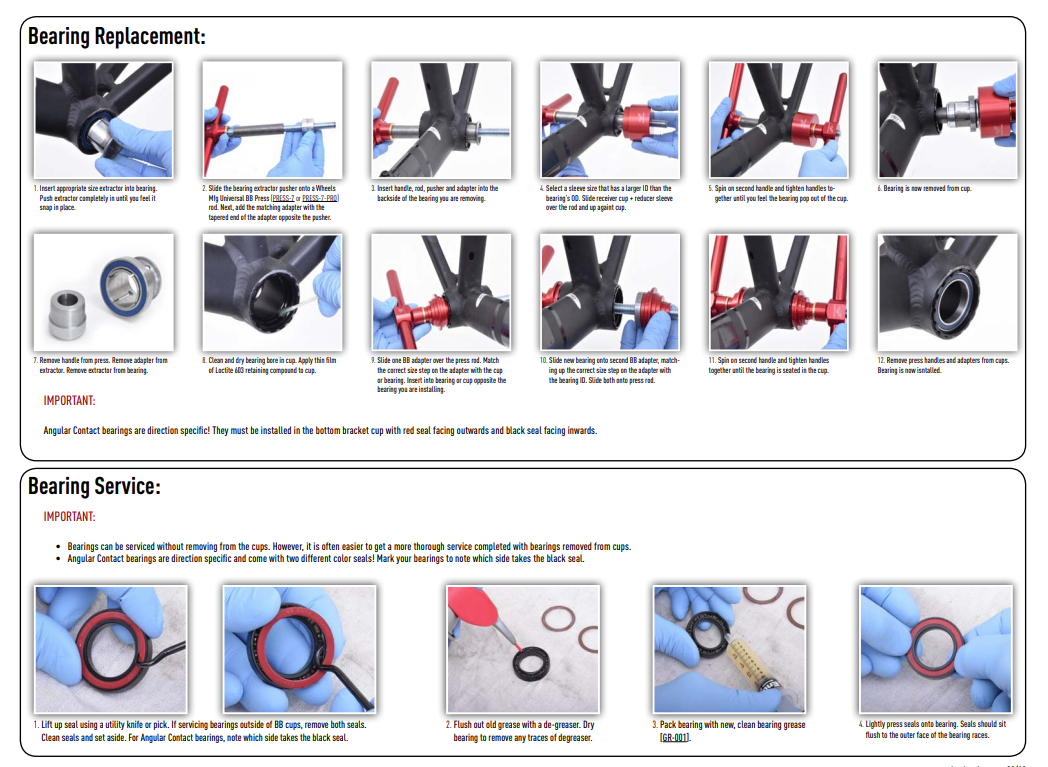

- (BB-EXT) Bottom Bracket Sealed Bearing Extractor Set
- (WRENCH-BB48-44) Wheels Mfg Double End BB Wrench, 16-notch BB tool - 48.5 / 44mm
- (BBTOOL-48-44) Wheels Mfg Bottom Bracket Socket - 48.5 / 44mm

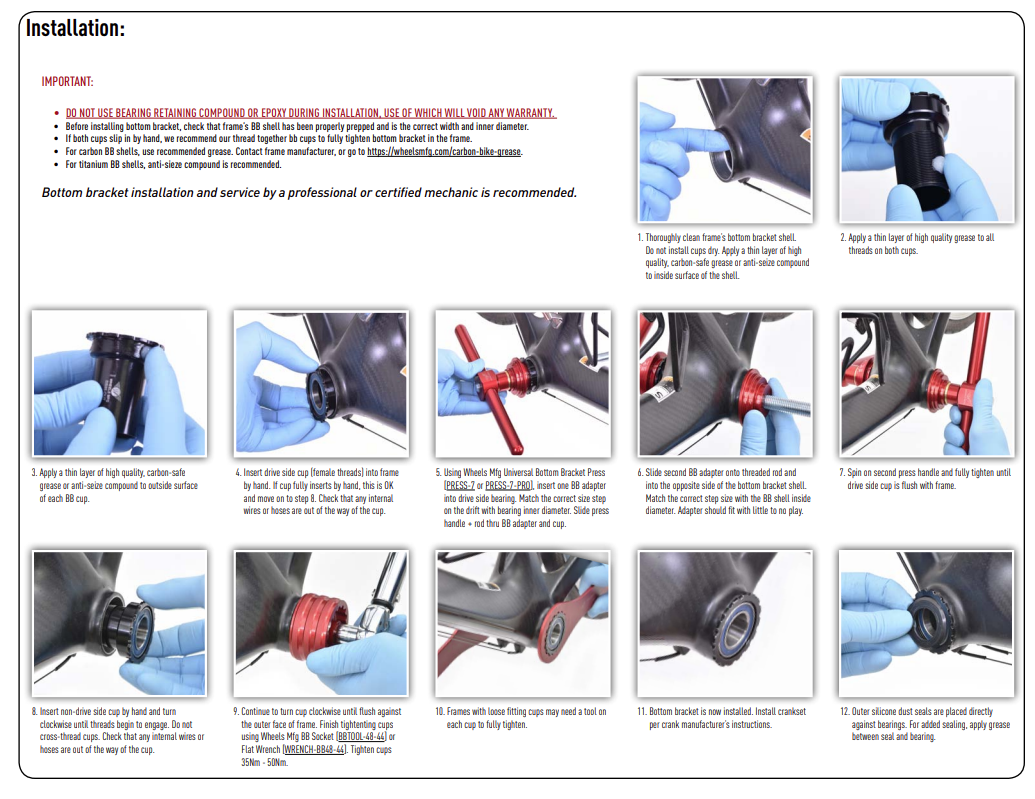

Note: if your BB shell is slightly oversize, two BB wrenches may be required to fully tighten cups in frame.
| Brand | Wheels Manufacturing |
| Article code | 1891 |
| SKU | BB86-OUT-SRAM7 |
