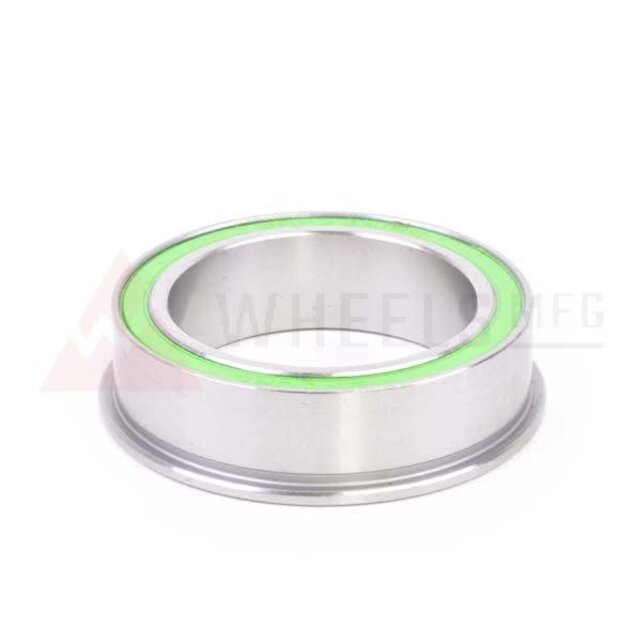

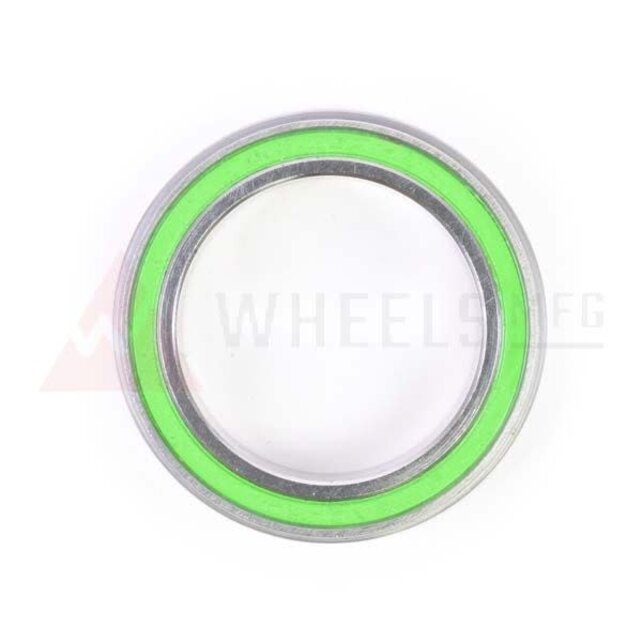

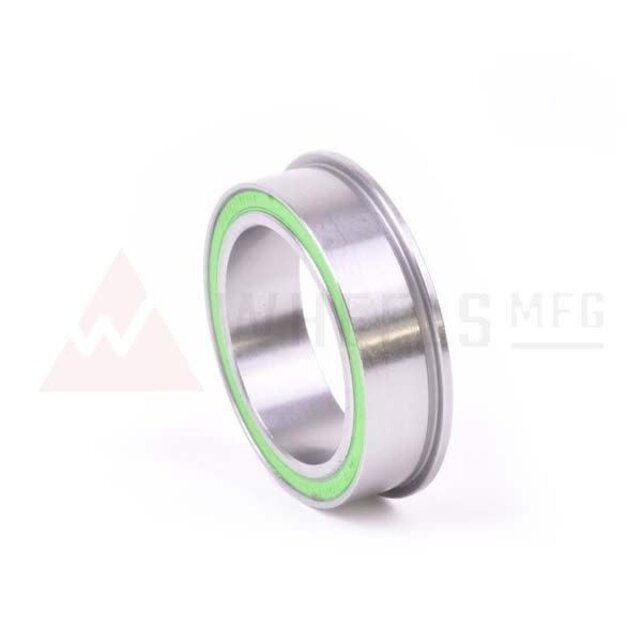

Wheels Mfg Bottom Bracket - BB86 To 30MM ABEC-3 Sealed Bearing
Expand your choice of cranks for use in frames with 41mm ID shells. Replace your bottom bracket with these dual-row flanged bearings and run 30mm spindle cranks in your frame. These bearings fit directly in frames with 41mm ID bottom bracket shells.
- In Stock Items Will ship in 2-3 business days
- Special Order Items will be ordered for you and shipped when available
- More information? Contact us about this product
- Add to comparison list
BB86 To 30MM ABEC-3 Sealed Bearing
Expand your choice of cranks for use in frames with 41mm ID shells. Replace your bottom bracket with these dual-row flanged bearings and run 30mm spindle cranks in your frame. These bearings fit directly in frames with 41mm ID bottom bracket shells. Crankset spindle length must be longer than 104mm when used in a 86.5mm wide BB shell.
- Sold individually (You'll need to purchase two per frame)

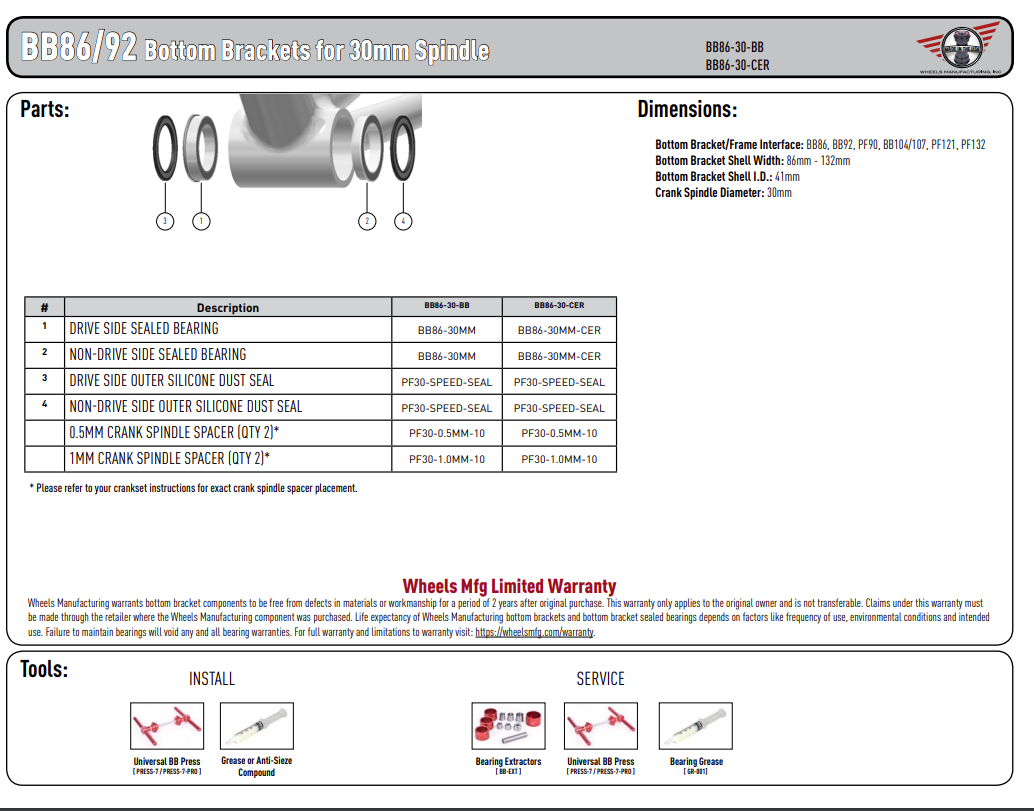

Available as a complete BB kit which includes dust seals and crank spindle spacers.
- BB86-30-BB (ABEC-3 bearings)
- BB86-30-CER (Ceramic hybrid bearings)
- Bearings: Enduro Dual-Row ABEC-3
- Color: Silver
- Bottom Bracket/Frame Interface: BB86, BB92, PF90, BB104/107, PF121, PF132
- Bottom Bracket Shell Width: 86.5mm - 132mm
- Bottom Bracket Shell I.D.: 41mm
- Flange OD: 42mm
- Crank Spindle Diameter: 30mm
- Over Bearing Width: 92mm in 86.5mm wide shell*
- Weight: 36g
* Over Bearing Width Dimensions include supplied silicone dust shields.
Compatible with 30mm diameter spindles and frames with the following Bottom Bracket Standards (41mm ID BB shell):
- BB86
- BB92
- PF24
- PF90
- BB104/107
- PF121
- BPF132
Crankset spindle length must be longer than 104mm when used in a 86.5mm wide BB shell.

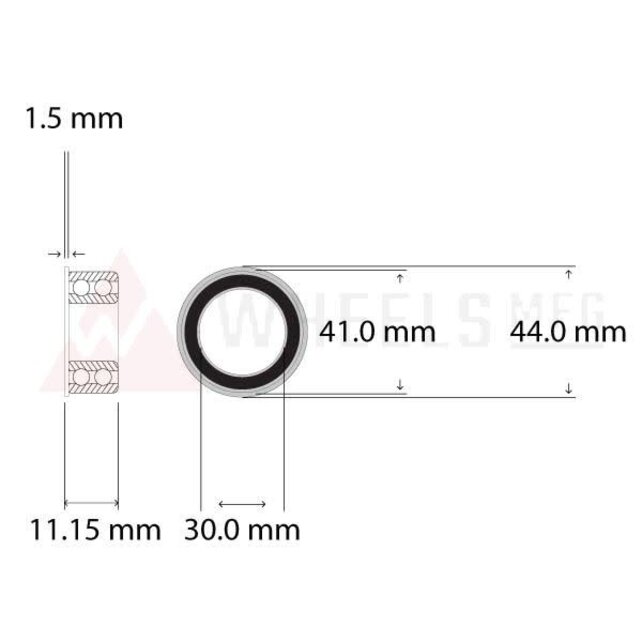

- Dimensions: 41mm x 30mm (44mm flange OD)
- 52100 High Carbon Chromium Alloy Races
- Grade 10 Chromium Steel Balls
- Dual row radial bearings with Kluber grease
- Step type axial face seal both sides
- Imported
- (PRESS-7) Universal Bottom Bracket Press
- (PRESS-7-PRO) Professional Universal Bottom Bracket Press
- (PRESS-9-PRO) Professional Bottom Bracket Tool Kit
