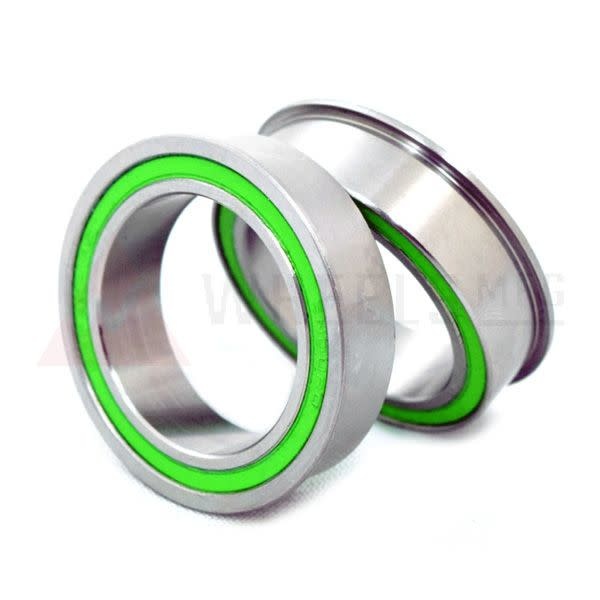

Wheels Mfg Bottom Bracket - BB86 to 30MM Flanged, Dual Row PressFit 86/92 ABEC-3 Bottom Bracket
Expand your choice of cranks for use in frames with 41mm ID shells. Replace your bottom bracket with these dual-row flanged bearings and run 30mm spindle cranks in your frame. These bearings fit directly in frames with 41mm ID bottom bracket shells.
- In Stock Items Will ship in 2-3 business days
- Special Order Items will be ordered for you and shipped when available
- More information? Contact us about this product
- Add to comparison list
BB86 to 30MM Flanged, Dual Row PressFit 86/92 ABEC-3 Bottom Bracket
Expand your choice of cranks for use in frames with 41mm ID shells. Replace your bottom bracket with these dual-row flanged bearings and run 30mm spindle cranks in your frame. These bearings fit directly in frames with 41mm ID bottom bracket shells. Crankset spindle length must be longer than 104mm when used in a 86.5mm wide BB shell.

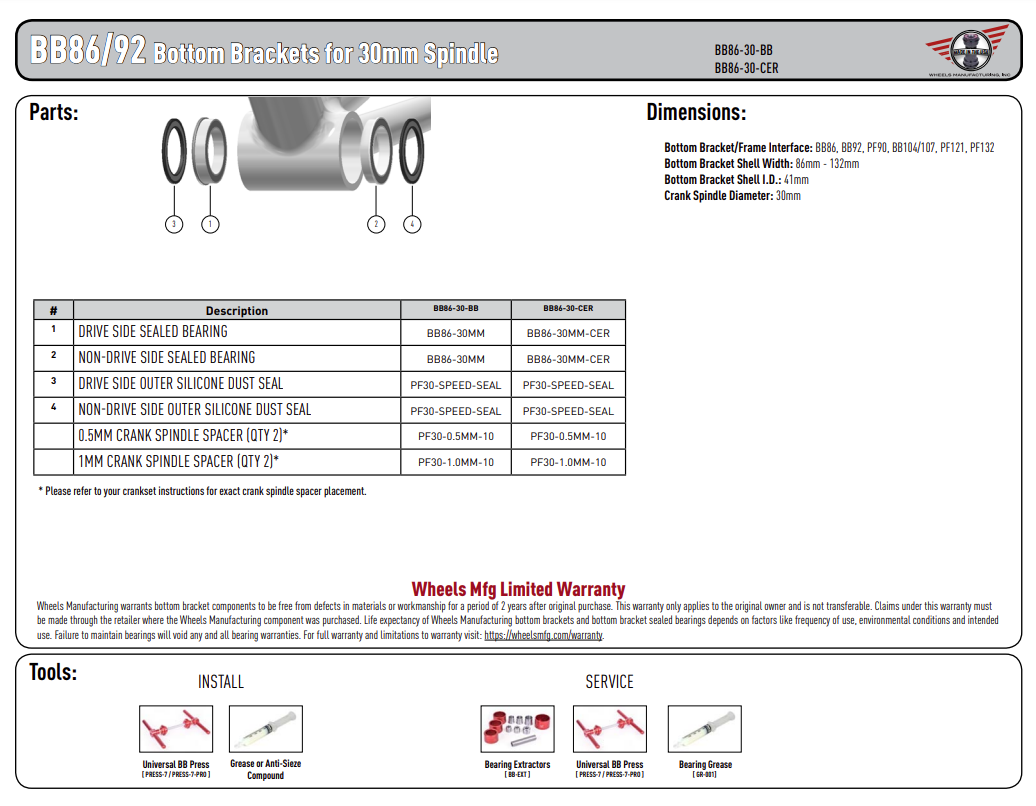

- Complete kit for one frame
- Includes:
- (2) - Enduro BB86 to 30MM Dual-Row ABEC-3 Bearing
- (2) - 0.5mm crank spacer
- (2) - 1.0mm crank spacer
- (2) - 5.0mm crank spacer
- (2) - Dust seals
- Bearings: Enduro Dual-Row ABEC-3
- Material: 440C stainless steel balls and races
- Color: Silver
- Bottom Bracket/Frame Interface: BB86, BB92, PF90, BB104/107, PF121, PF132
- Bottom Bracket Shell Width: 86.5mm - 132mm
- Bottom Bracket Shell I.D.: 41mm
- Flange OD: 42mm
- Crank Spindle Diameter: 30mm
- Over Bearing Width: 92mm in 86.5mm wide shell*
- Weight: 90g
* Over Bearing Width Dimensions include supplied silicone dust shields.
Compatible with 30mm diameter spindles and frames with the following Bottom Bracket Standards (41mm ID BB shell):
- BB86
- BB92
- PF24
- PF90
- BB104/107
- PF121
- BPF132
Crankset spindle length must be longer than 104mm when used in a 86.5mm wide BB shell.

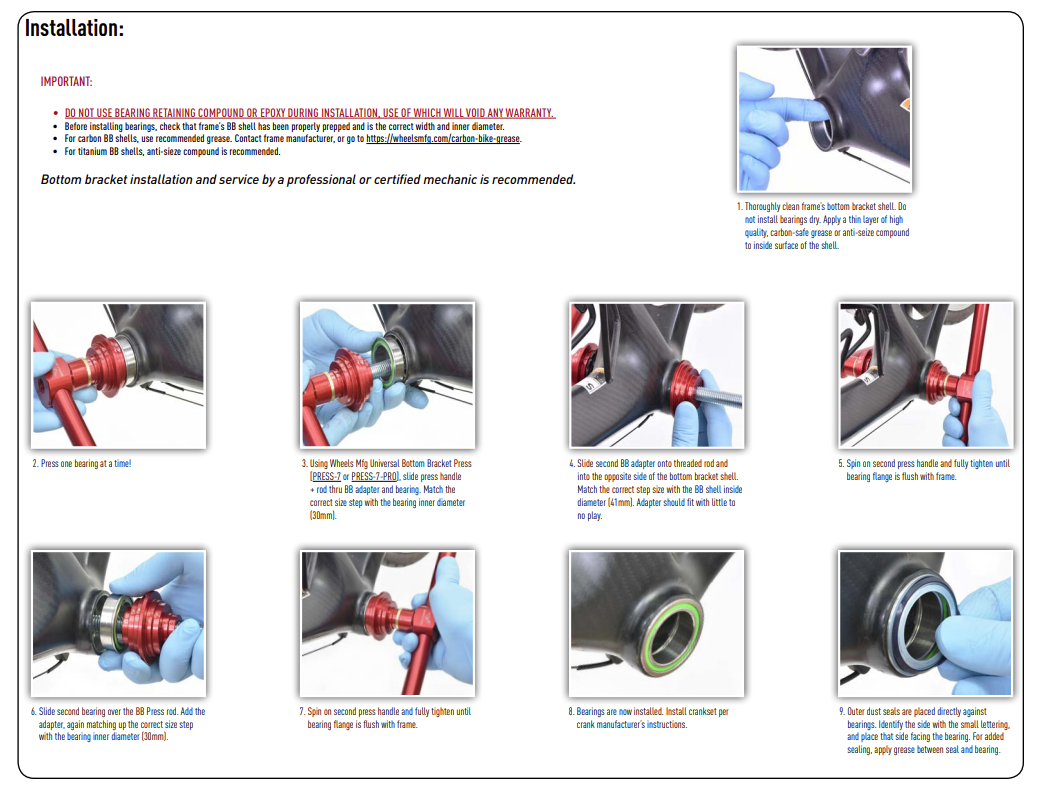

- (BP0007) Bottom Bracket Press Pro Install Kit
- (BP0006)Bottom Bracket Press Essential Kit

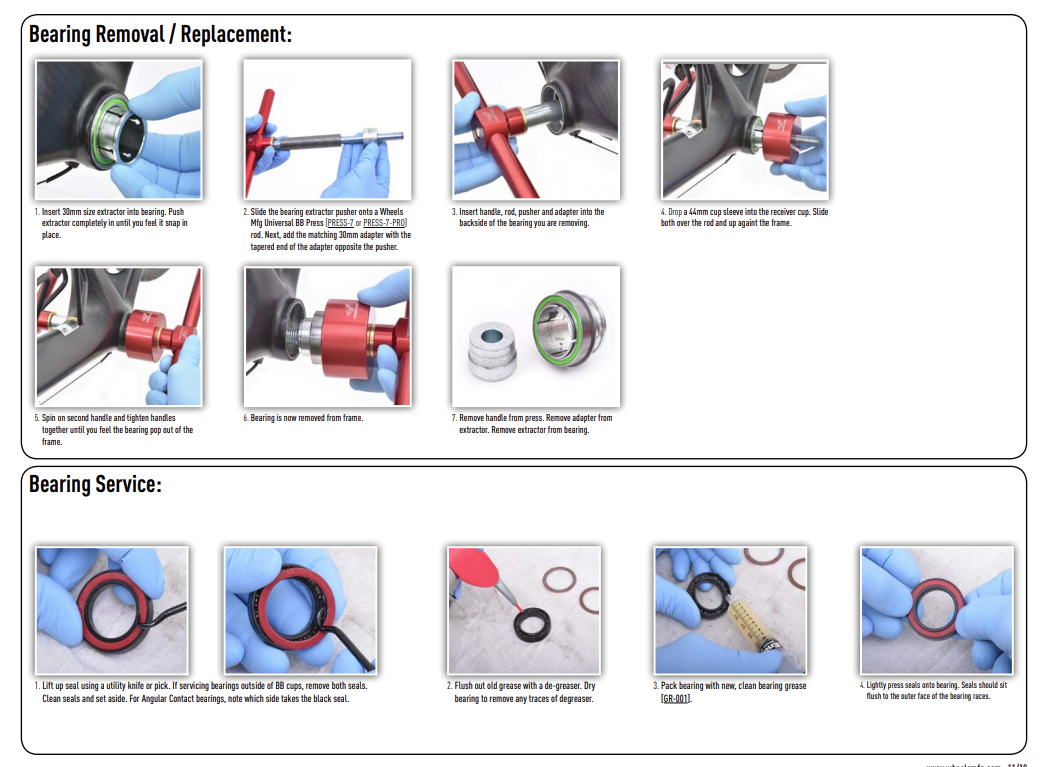

- (EX0004) Bottom Bracket Sealed Bearing Extractor Set
Note: if your BB shell is slightly oversize, two BB wrenches may be required to fully tighten cups in frame.
| Brand | Wheels Manufacturing |
| Article code | 1880 |
| SKU | BB86-30-BB |
