Wheels Mfg Bottom Bracket - PF30 OUT, GXP, ABEC3
Thread together bottom bracket for frames using the PF30 bottom bracket standard. Two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance.
- In Stock Items Will ship in 2-3 business days
- Special Order Items will be ordered for you and shipped when available
- More information? Contact us about this product
- Add to comparison list
PF30 Outboard ABEC-3 BB for 24/22mm Cranks (SRAM) - Black

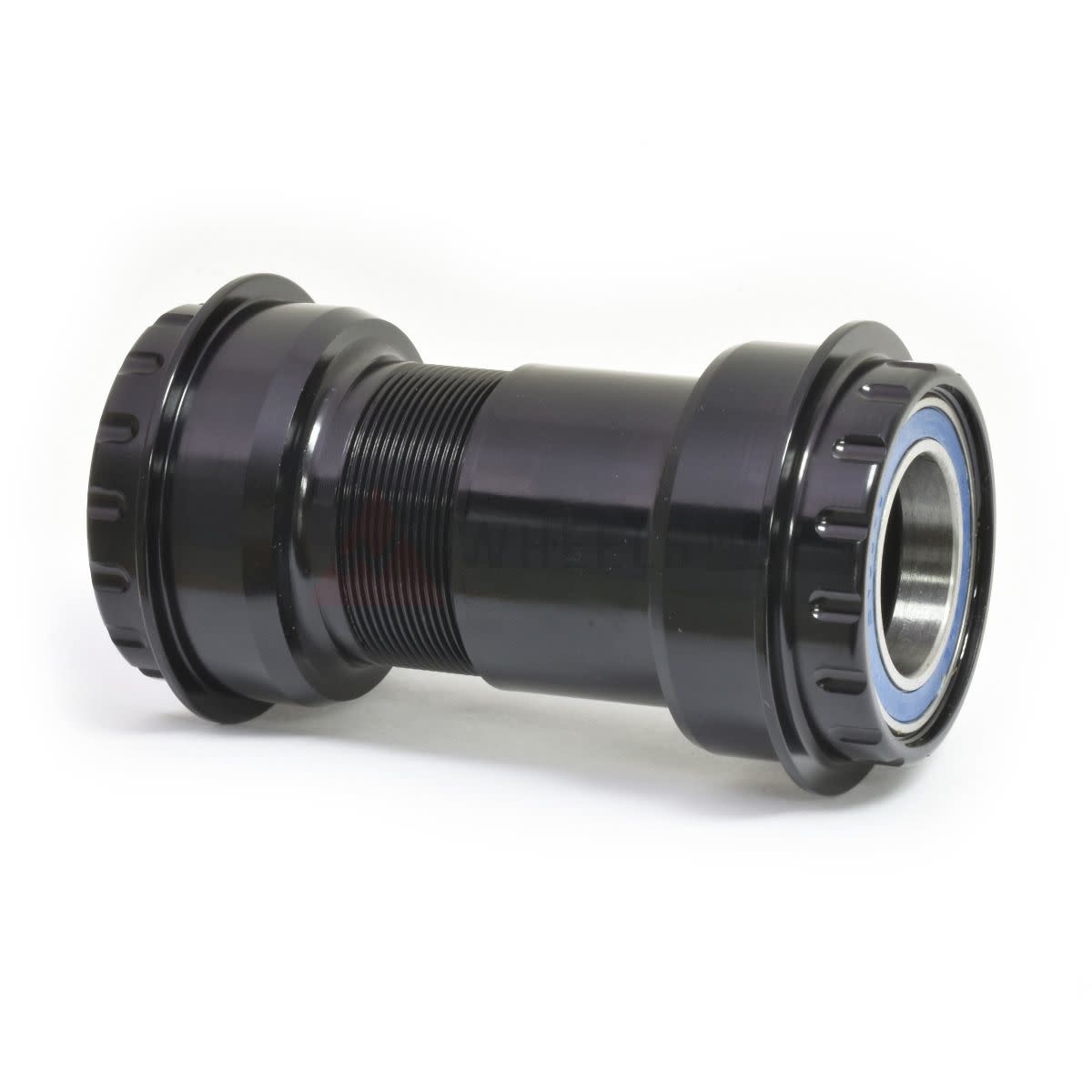

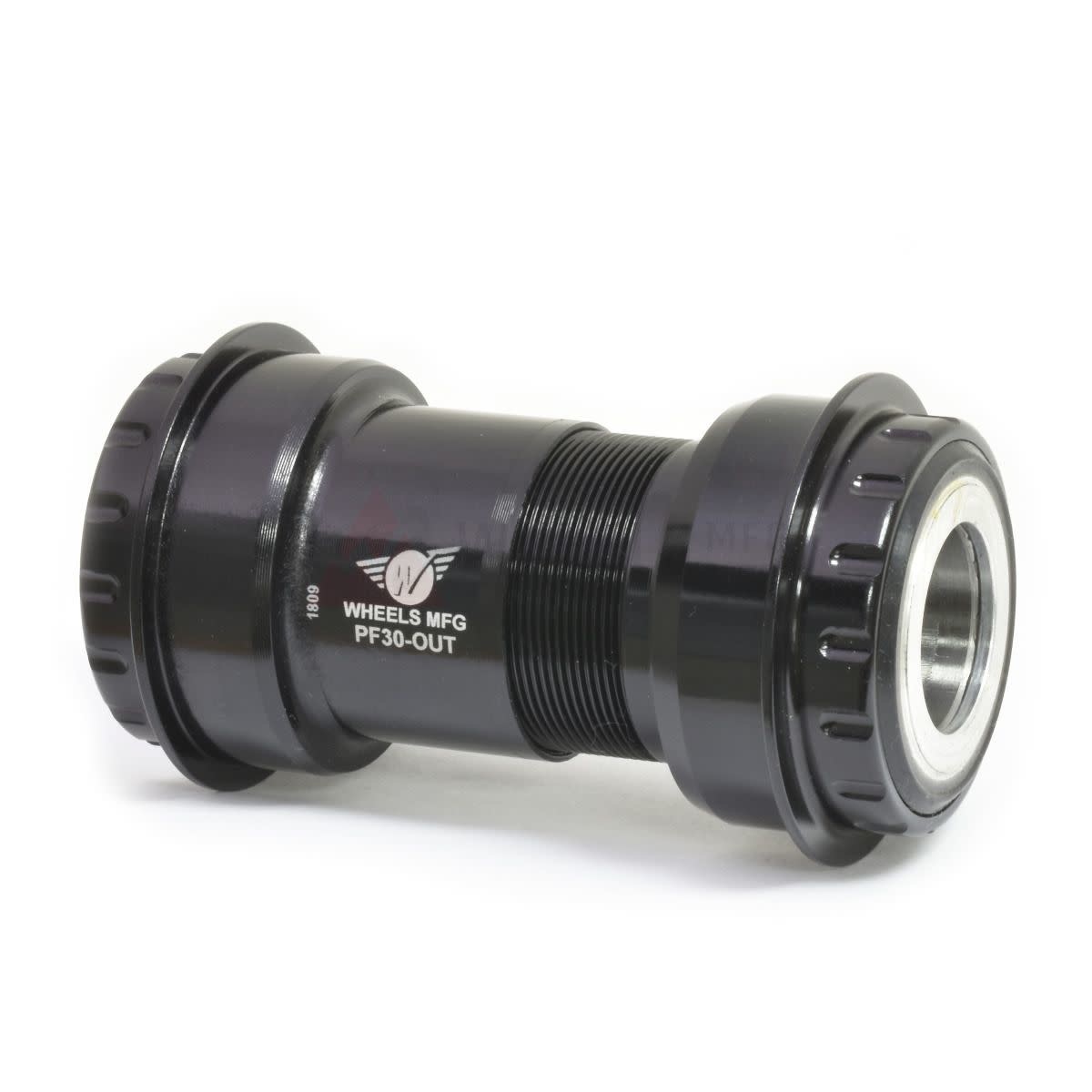

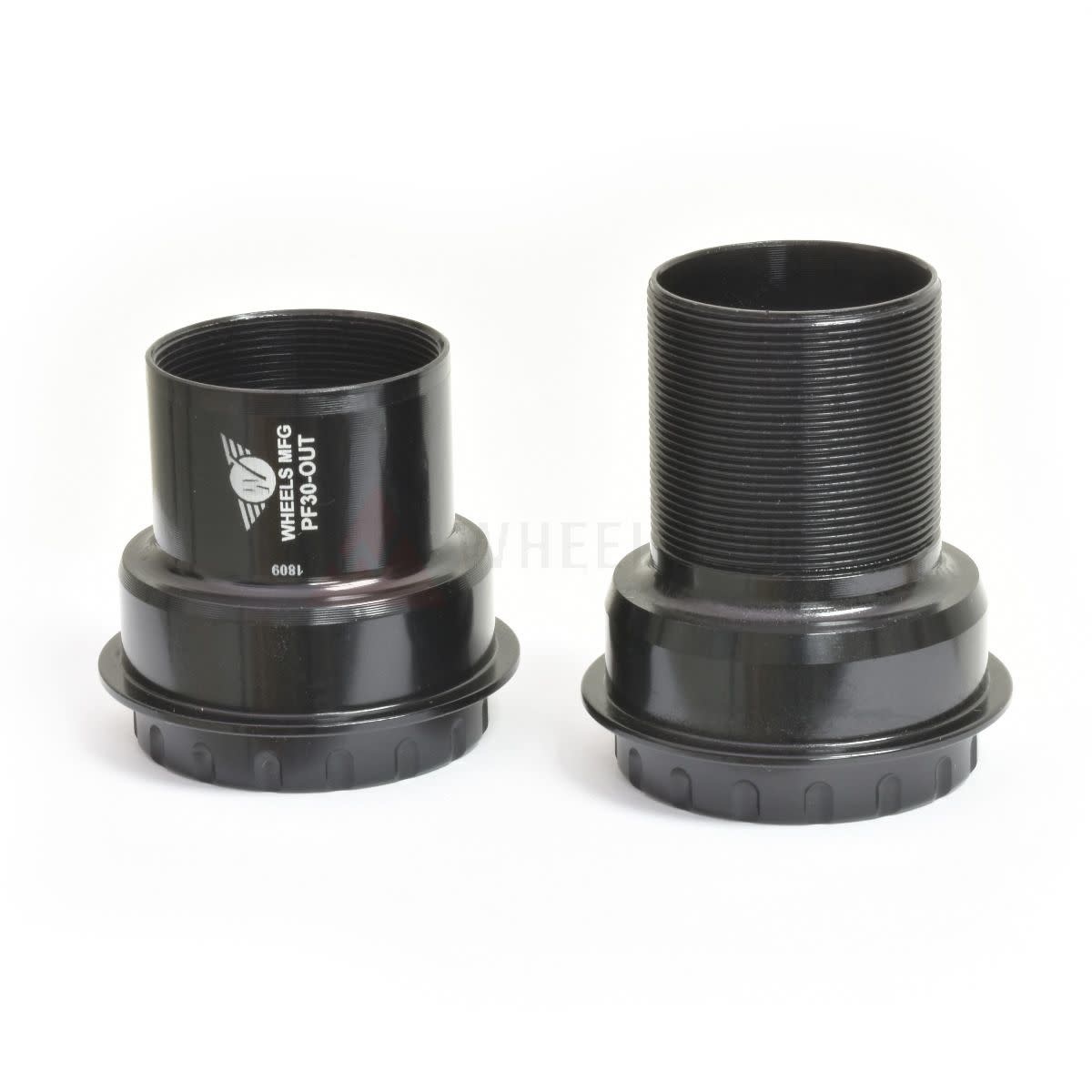

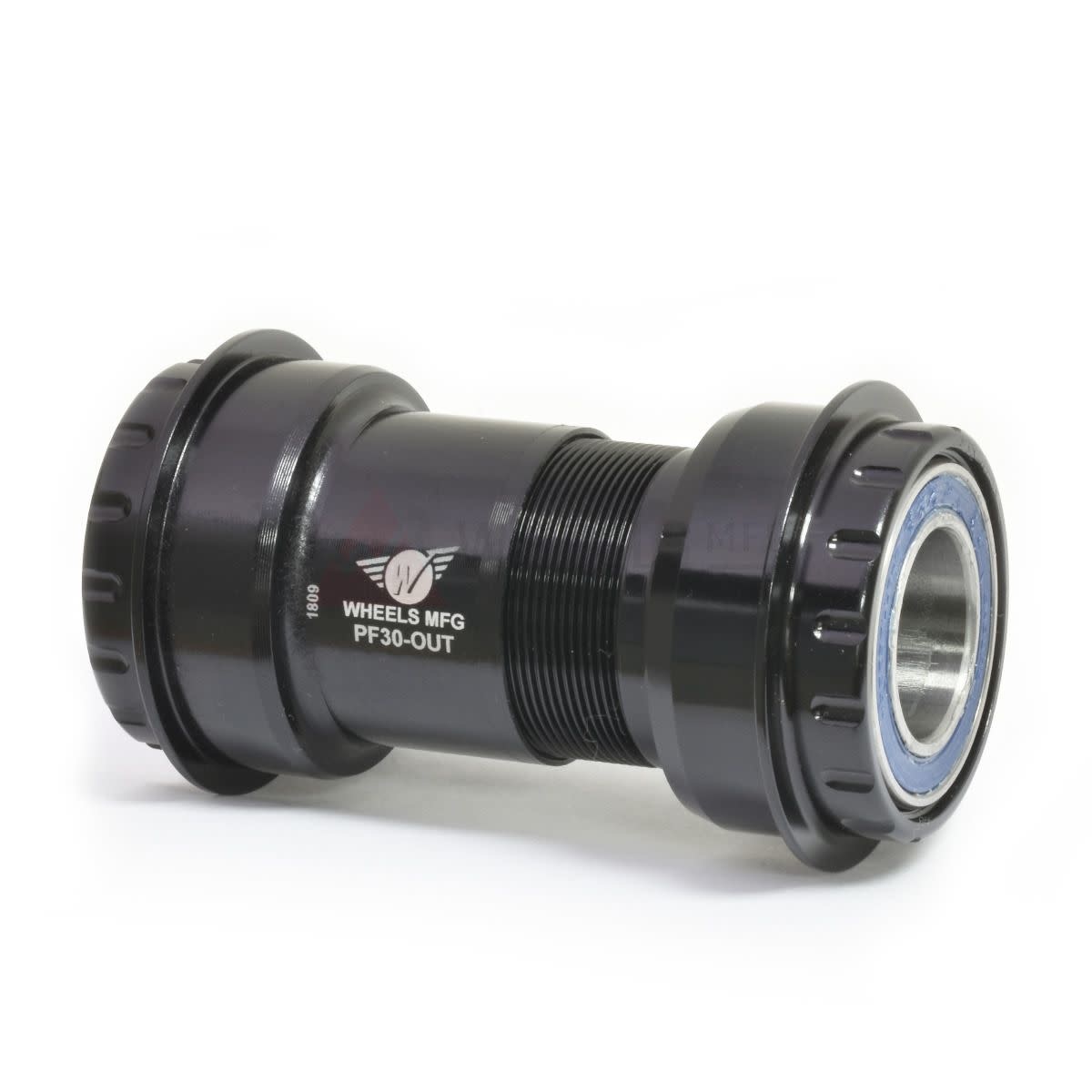

Thread together bottom bracket for frames using the PF30 bottom bracket standard. Two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Specifically designed for installing 22mm / 24mm spindle diameter cranks (SRAM / Truvativ GXP) in PF30 (46mm ID BB shell) frames without the need for any adapters.

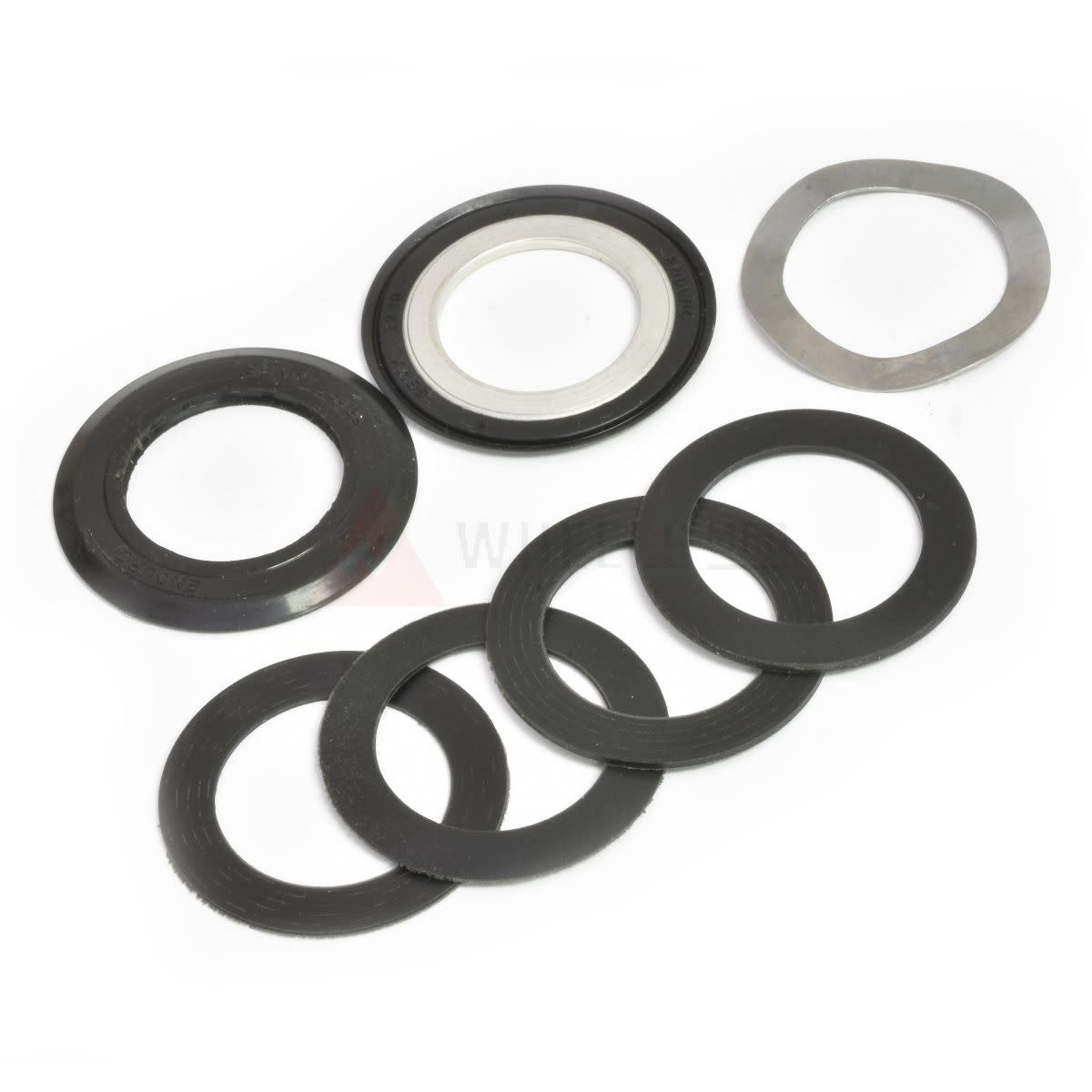

Bottom Bracket Includes:
- BB Cups with bearings

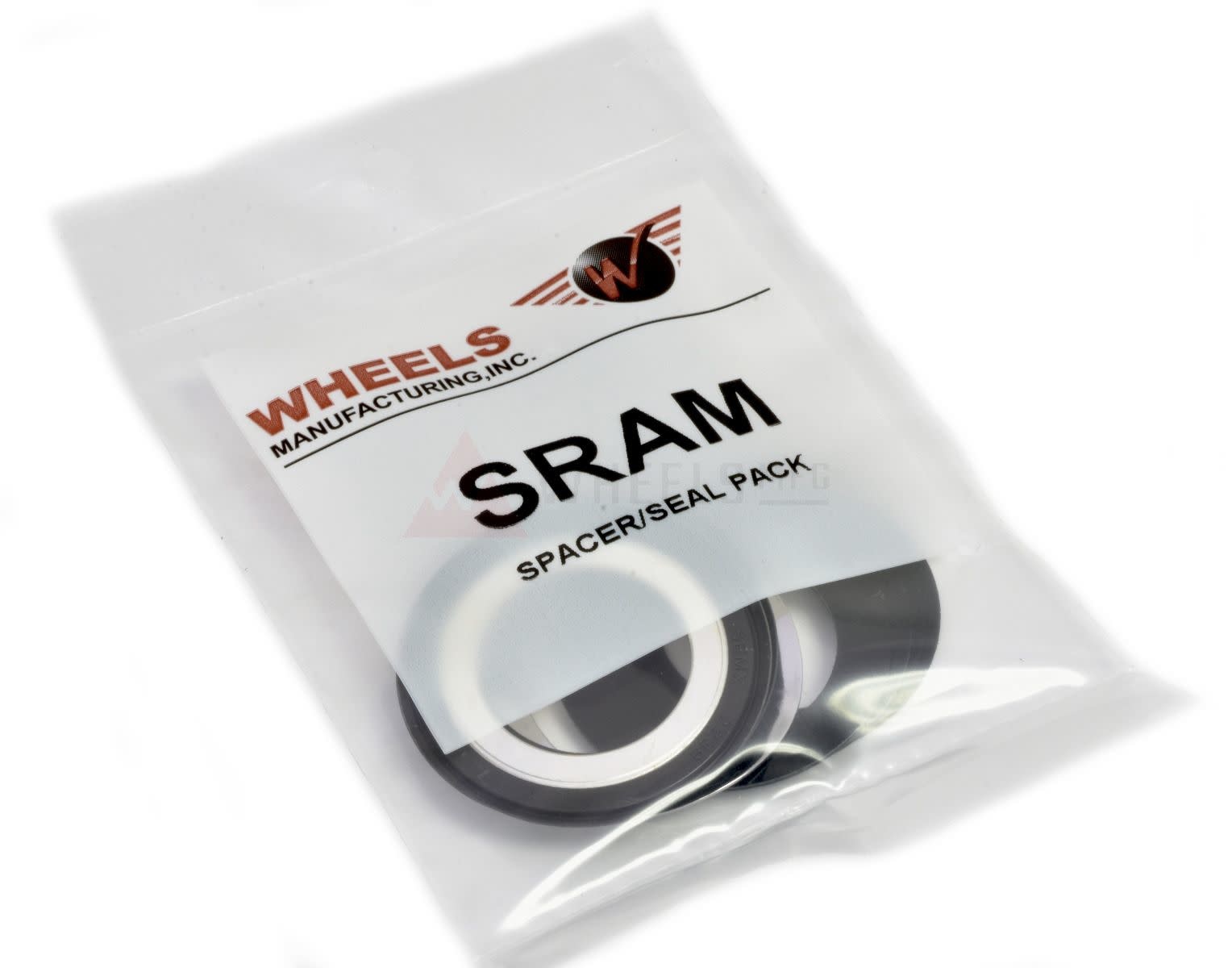

- 2 - Silicone dust seals
- 2 - 0.5mm crank spindle spacers
- 2 - 1.0mm crank spindle spacers

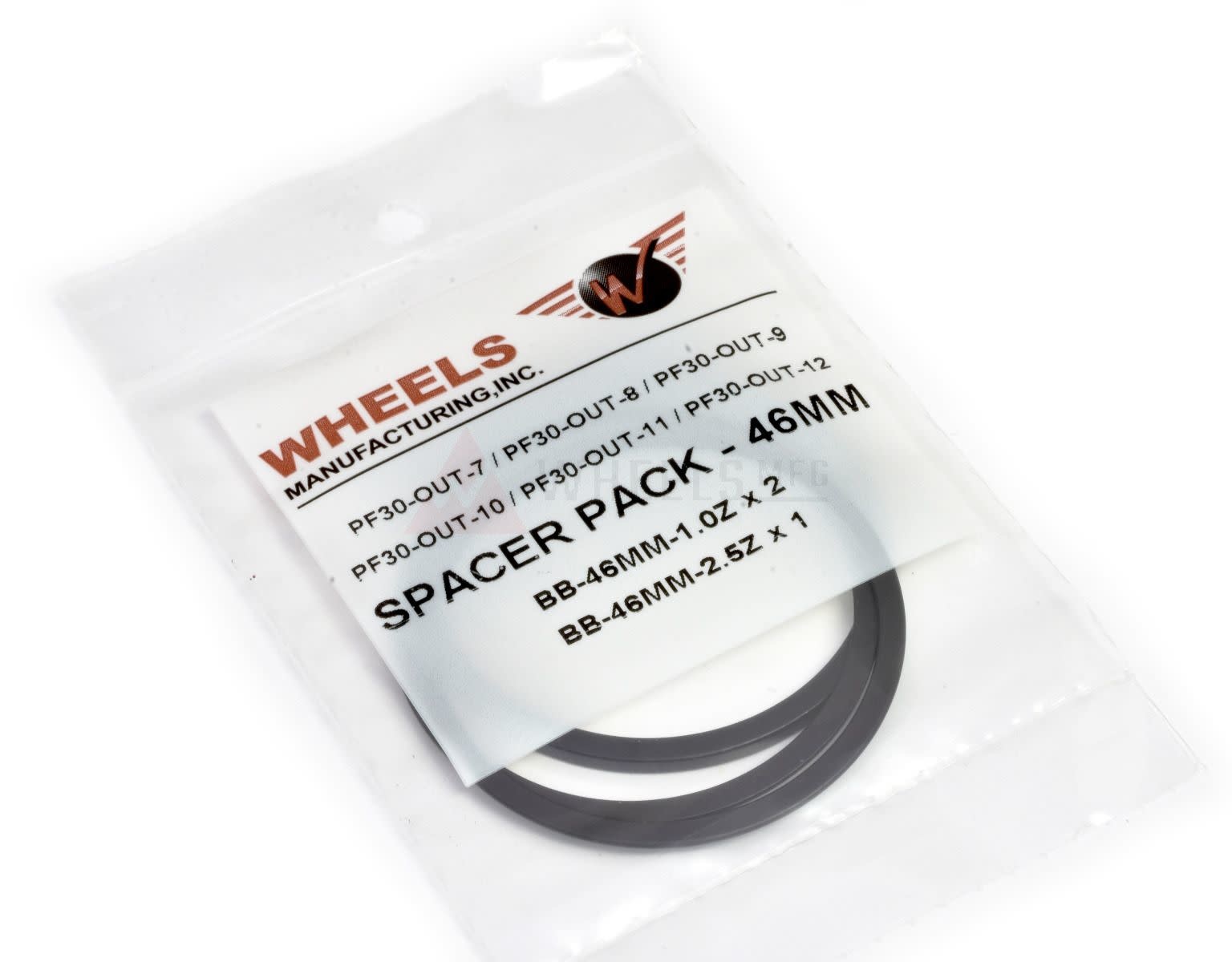

- 2 - 46mm x 1.0mm cup spacers
- 1 - 46mm x 2.5mm cup spacer
- 1 - wave washer
Specifications:
- Bearings: Enduro ABEC-3
- Color: Black
- Bottom Bracket/Frame Interface: PF30, Specialized Carbon OSBB*
- Bottom Bracket Shell Width: 61mm* - 73mm
- Bottom Bracket Shell I.D.: 46mm
- Over Bearing Width: 91.0mm in 68mm wide shell
- Crank Spindle Diameter: 22mm / 24mm
- Tool Pattern: 44mm, 16-notch
- Weight: 180g
*Notes:
- Specialized Carbon OSBB frames with a 61mm shell width need additional cup spacers.
- BB cups produced after July 2018 do not use o-rings.
- Over Bearing Width Dimensions include supplied silicone dust shields.
Compatible with the following Bottom Bracket Standards (46mm BB shell inner diameter):
- PF30
- Specialized Carbon OSBB. May need additional cup spacers if BB shell width is 61mm.
Compatible with stepped 22/24mm spindle diameter cranksets (GXP).
Tools:
- (PRESS-9-PRO) Bottom Bracket Service Kit
- (PRESS-7 or PRESS-7-PRO) Universal Bottom Bracket Press
- (WRENCH-BB48-44) Wheels Mfg Double End BB Wrench, 16-notch BB tool - 48.5 / 44mm
- (BBTOOL-48-44) Wheels Mfg BB Socket tool - 48.5 / 44mm
- (BB-EXT) Bottom Bracket Sealed Bearing Extractor Set
Note: If your BB shell is slightly oversize, two BB wrenches may be required to fully tighten cups in frame.
| Brand | Wheels Manufacturing |
| Article code | 1963 |
| SKU | PF30-OUT-7 |
| EAN | 811079020314 |
