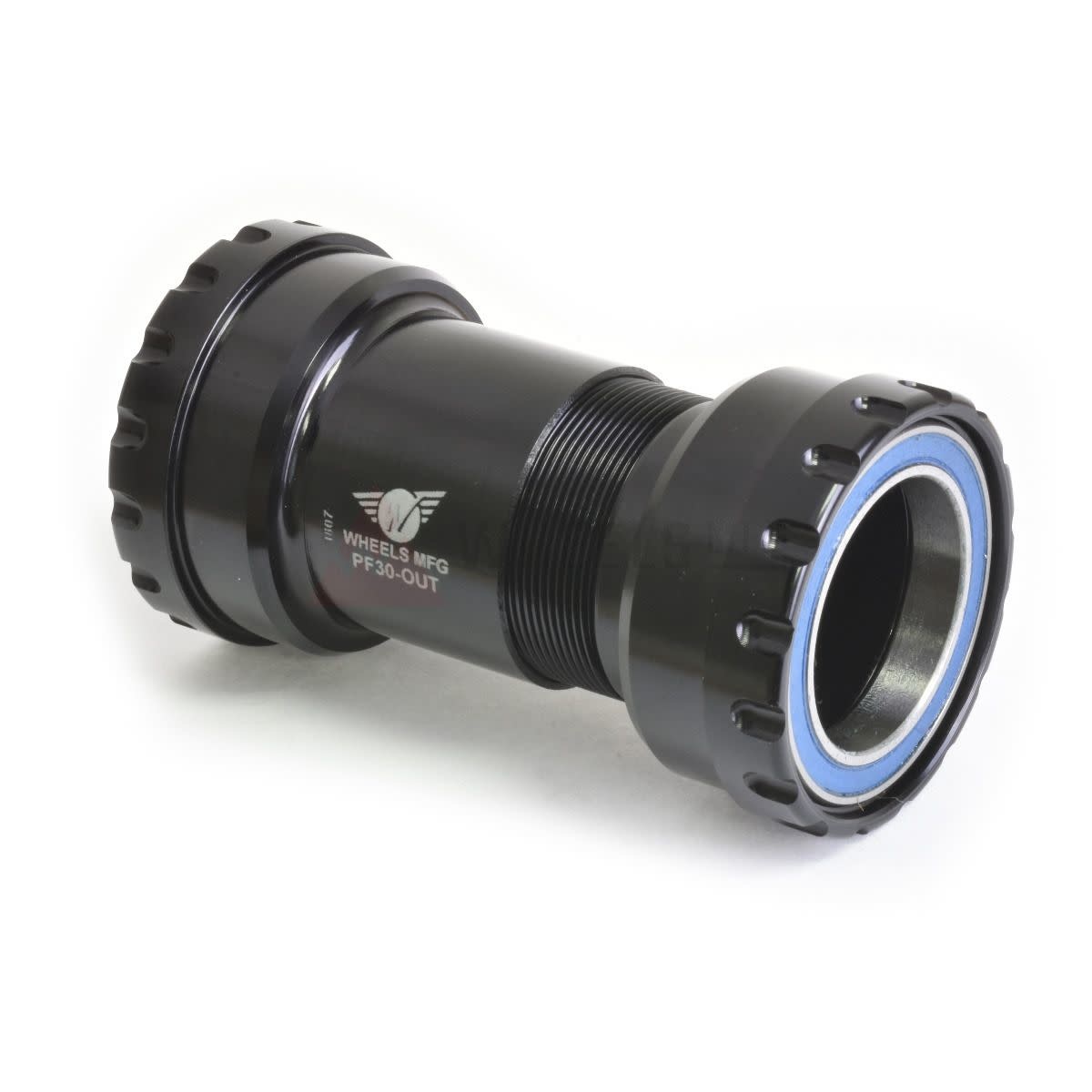

Wheels Mfg Bottom Bracket - PF30 Outboard ABEC-3 BB for 30mm Cranks
PF30 bottom bracket with outboard bearings for use with 30mm spindle cranksets. A great choice for use with RaceFace Cinch cranks. The two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life...
- In Stock Items Will ship in 2-3 business days
- Special Order Items will be ordered for you and shipped when available
- More information? Contact us about this product
- Add to comparison list
PF30 Outboard ABEC-3 BB for 30mm Cranks - Black
PF30 bottom bracket with outboard bearings for use with 30mm spindle cranksets. A great choice for use with RaceFace Cinch cranks. The two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Note: Spindle length must be 103mm or longer when used in a 68mm wide shell, 108mm or longer when used in a 73mm wide shell.

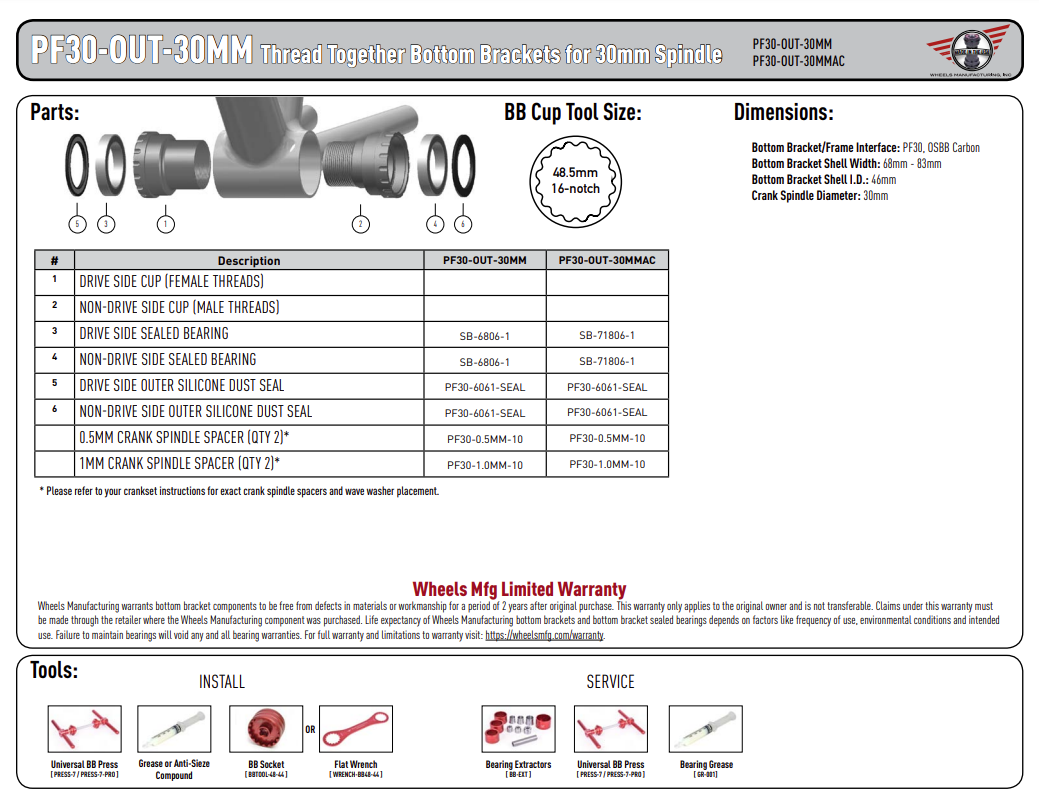

Specifications:
- Bearings: Enduro ABEC-3
- Color: Black
- Bottom Bracket/Frame Interface: PF30, Specialized Carbon OSBB*
- Bottom Bracket Shell Width: 61mm* to 83mm
- Bottom Bracket Shell I.D.: 46mm
- Over Bearing Width: 89mm in 68mm wide shell
- Crank Spindle Diameter: 30mm
- Tool Pattern: 48.5mm x 16 notch
- Weight: 151g
* Specialized Carbon OSBB with 61mm shell width will need additional cup spacers.
- Over Bearing Width Dimensions include supplied silicone dust shields.
Compatibility:
Compatible with the following Bottom Bracket Standards (46mm BB shell inner diameter):
- PF30
- Specialized Carbon OSBB. May need additional cup spacers if BB shell width is 61mm.
Compatible with 30mm spindle diameter cranksets. Overall spindle length must be 103mm or longer when used in a 68mm wide shell, or 109mm or longer when used in a 73mm wide shell.

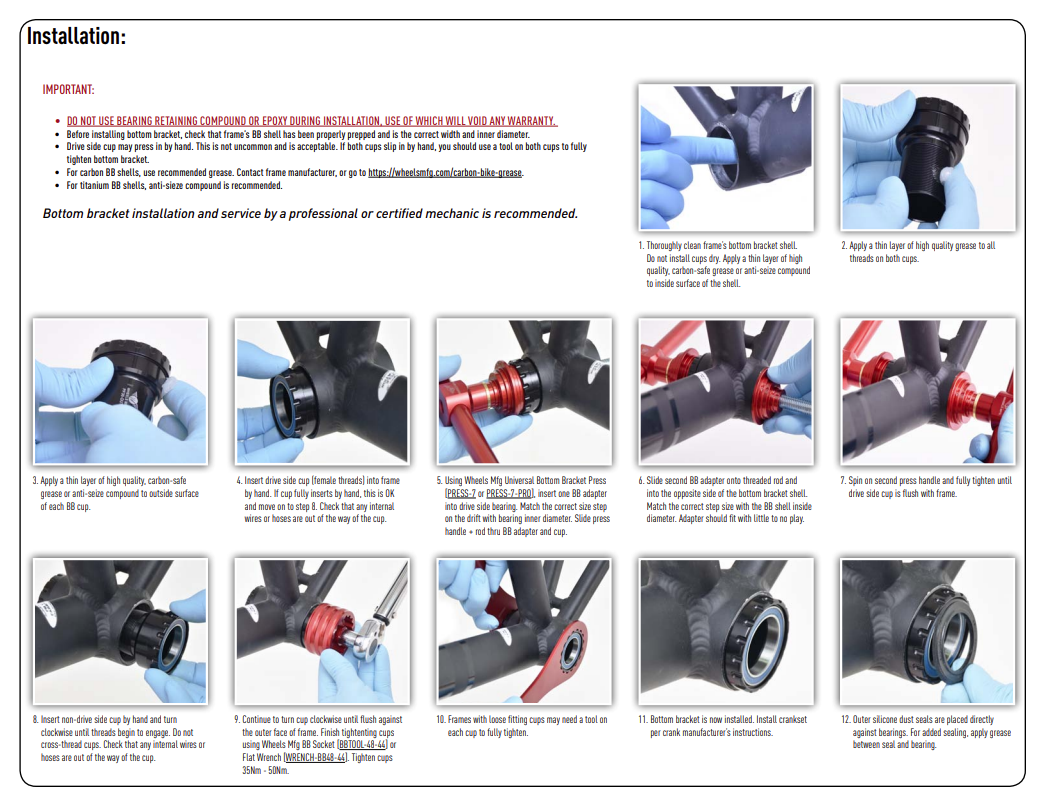

Tools:
- (PRESS-9-PRO) Bottom Bracket Service Kit
- (PRESS-7 or PRESS-7-PRO) Universal Bottom Bracket Press
- (WRENCH-BB48-44) Wheels Mfg Double End BB Wrench, 16-notch BB tool - 48.5 / 44mm
- (BBTOOL-48-44) Wheels Mfg BB Socket tool - 48.5 / 44mm
- (BB-EXT) Bottom Bracket Sealed Bearing Extractor Set
Note: if your BB shell is slightly oversize, two BB wrenches may be required to fully tighten cups in frame.
| Brand | Wheels Manufacturing |
| Article code | 1922 |
| SKU | PF30-OUT-30MM |
