Wheels Mfg Bottom Bracket - PF30A, 30mm, ABEC-3
The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing...
- In Stock Items Will ship in 2-3 business days
- Special Order Items will be ordered for you and shipped when available
- More information? Contact us about this product
- Add to comparison list

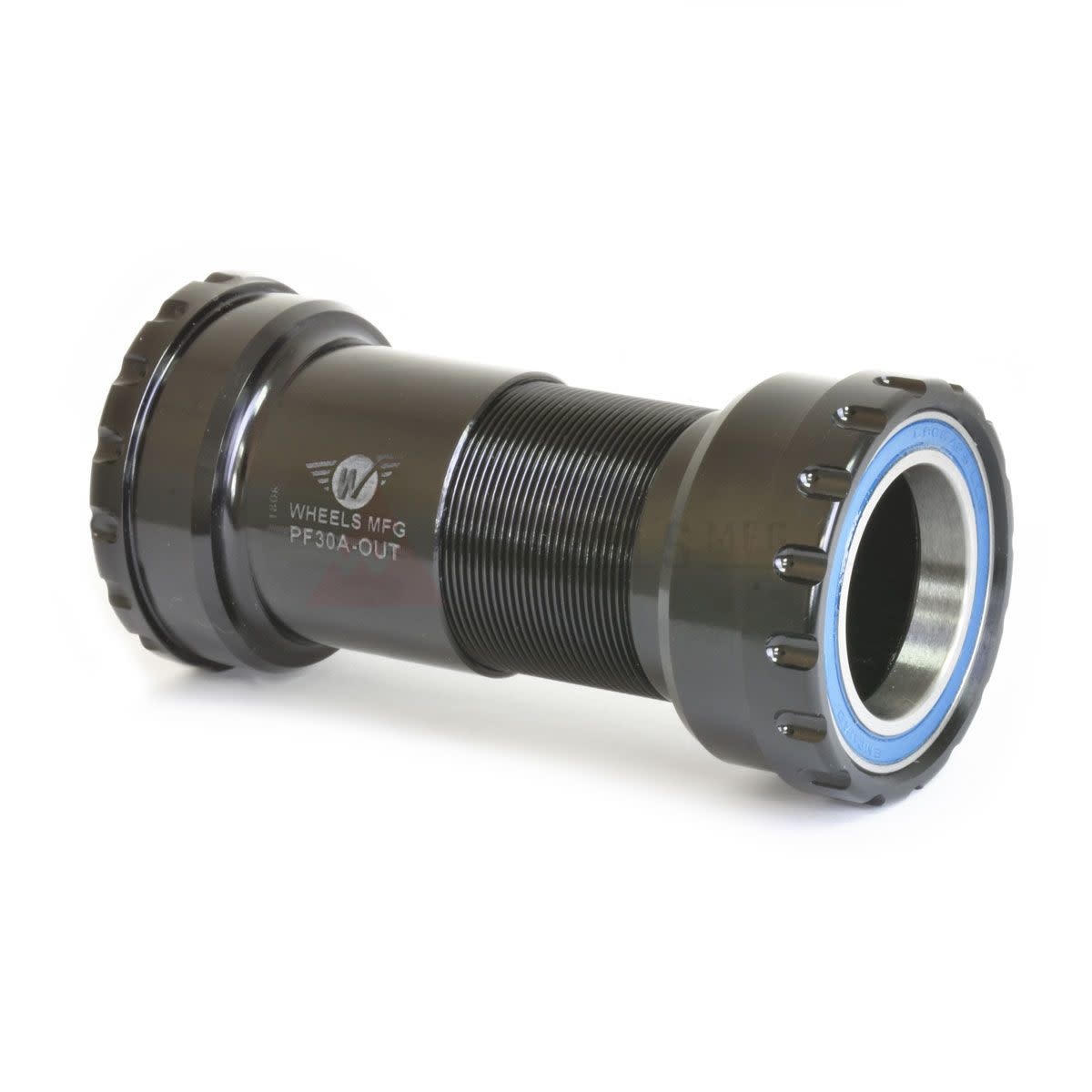

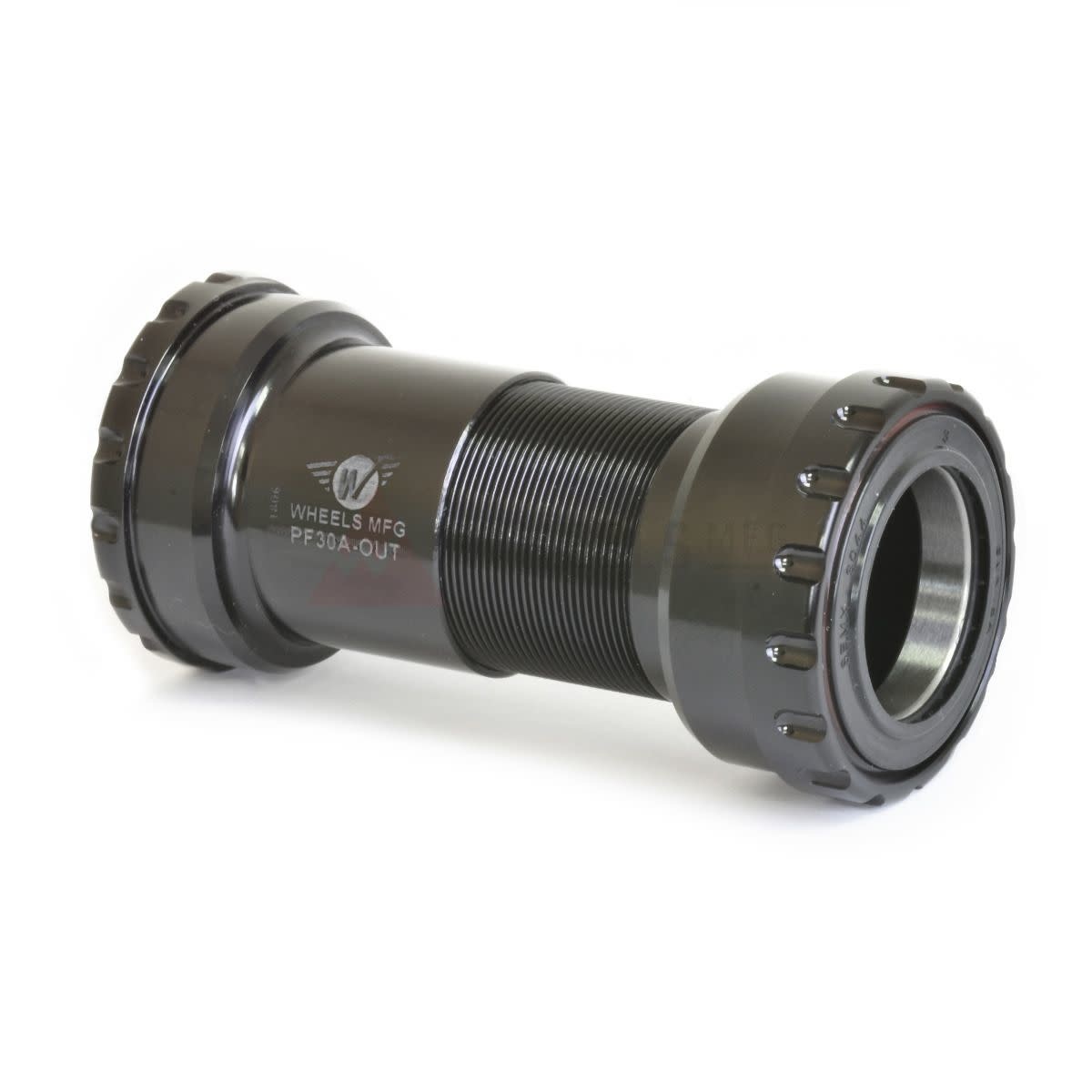

PF30A Outboard ABEC-3 BB for 30mm Cranks - Black
The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Specifically designed for installing 30mm spindle cranks in Cannondale PF30A (46mm ID, 73mm wide asymmetrical BB shell) frames.

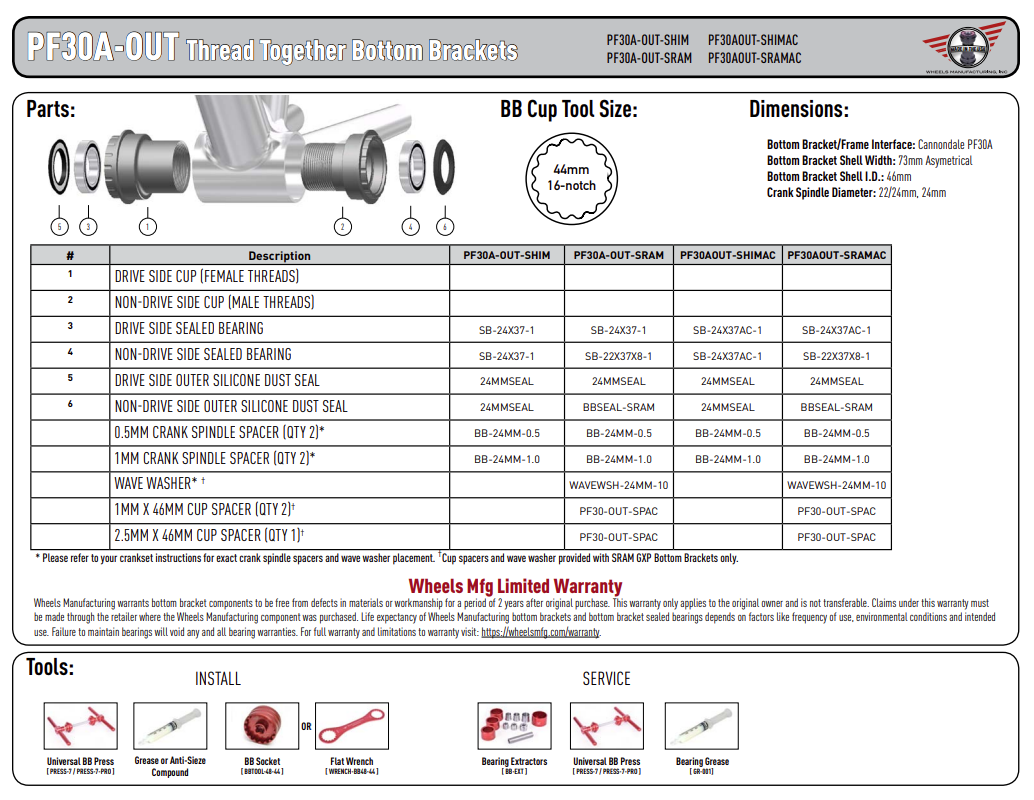

Bottom Bracket Includes:
- BB Cups with bearings
- 2 - Silicone dust seals
- 2 - 0.5mm crank spindle spacers
- 2 - 1.0mm crank spindle spacers
- Bearings: Enduro ABEC-3
- Color: Black
- Bottom Bracket/Frame Interface: Cannondale PF30A
- Bottom Bracket Shell Width: 73mm Asymmetrical
- Bottom Bracket Shell I.D.: 46mm
- Over Bearing Width: 91mm in 73mm wide shell*
- Crank Spindle Diameter: 30mm
- Tool Pattern: 48.5mm x 16 notch
- Weight: 158g
* Over Bearing Width Dimensions include supplied silicone dust shields.
Compatible with the following Bottom Bracket Standards (46mm BB shell inner diameter, 73mm shell width) with 30mm spindle cranks:
- Cannondale PF30A
Note: Spindle length must be equivalent to a BB386 length.

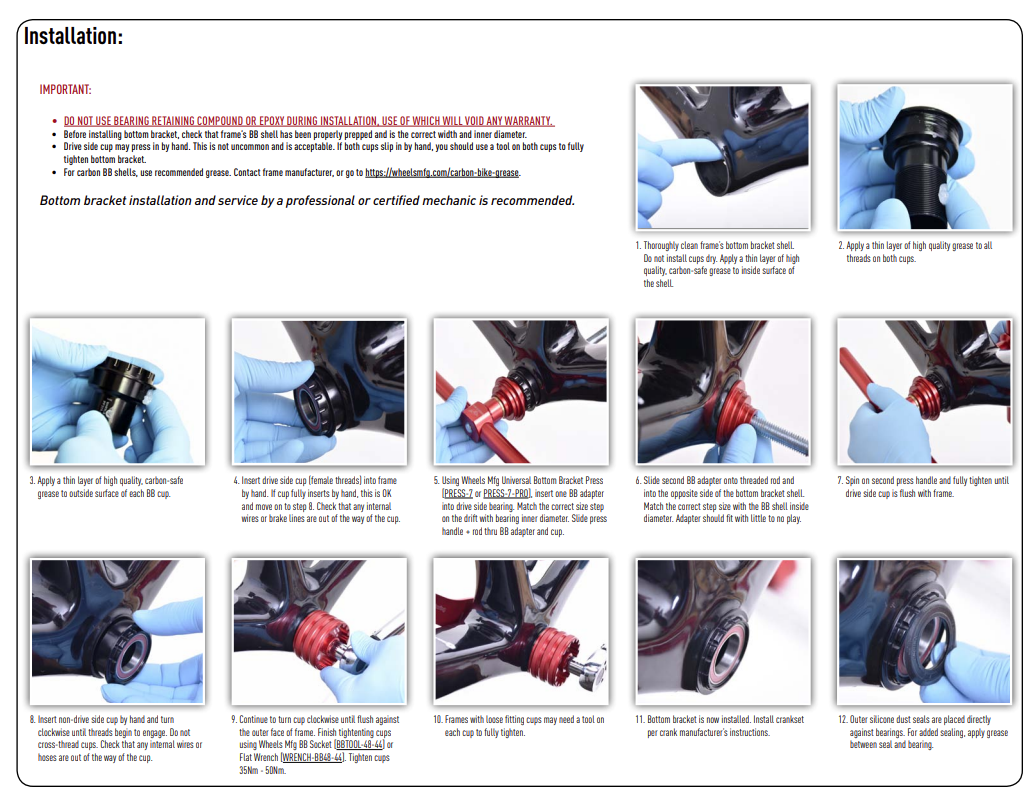

Installation & Removal
- (PRESS-7 or PRESS-7-PRO) Universal Bottom Bracket Press
- (WRENCH-BB48-44) Wheels Mfg Double End BB Wrench, 16-notch BB tool - 48.5 / 44mm
- (BBTOOL-48-44) Wheels Mfg Bottom Bracket Socket - 48.5 / 44mm
Note: if your BB shell is slightly oversize, two BB wrenches may be required to fully tighten cups in frame.

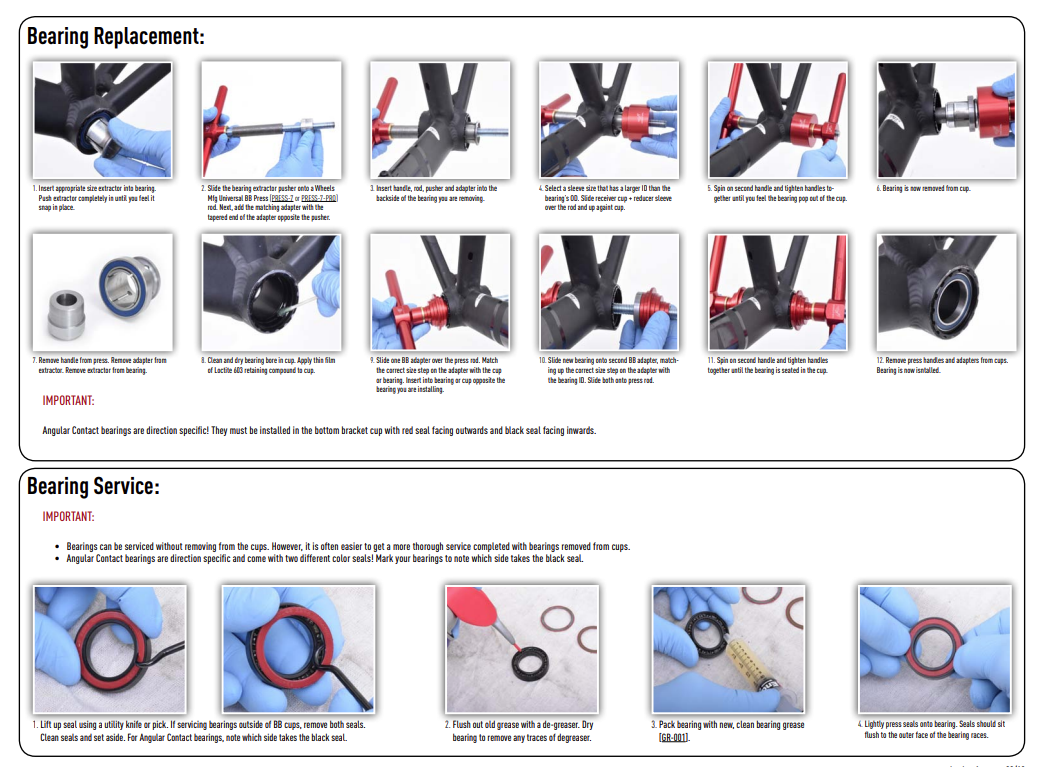

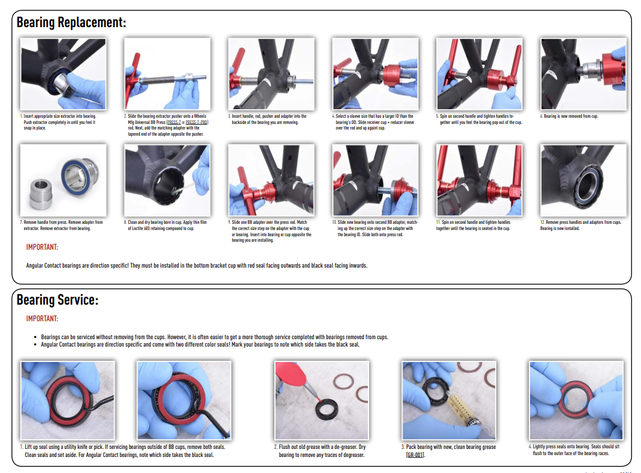

Bearing Service
- (PRESS-9-PRO) Professional Bottom Bracket Tool Kit
- (BB-EXT) Bottom Bracket Sealed Bearing Extractor Set
| Brand | Wheels Manufacturing |
| Article code | 1911 |
| SKU | PF30A-OUT-30MM |
