Wheels Mfg Bottom Bracket - T47 Angular Contact BB for 24/22mm (SRAM) Cranks
T47 threaded BB cups for T47 frames and 22/24mm spindle diameter SRAM GXP cranks. Cups have internal bearings, and are typically used in BB shells with widths wider than 73mm. Machined aluminum cups thread together directly into a T47 BB shell.
- In Stock Items Will ship in 2-3 business days
- Special Order Items will be ordered for you and shipped when available
- More information? Contact us about this product
- Add to comparison list

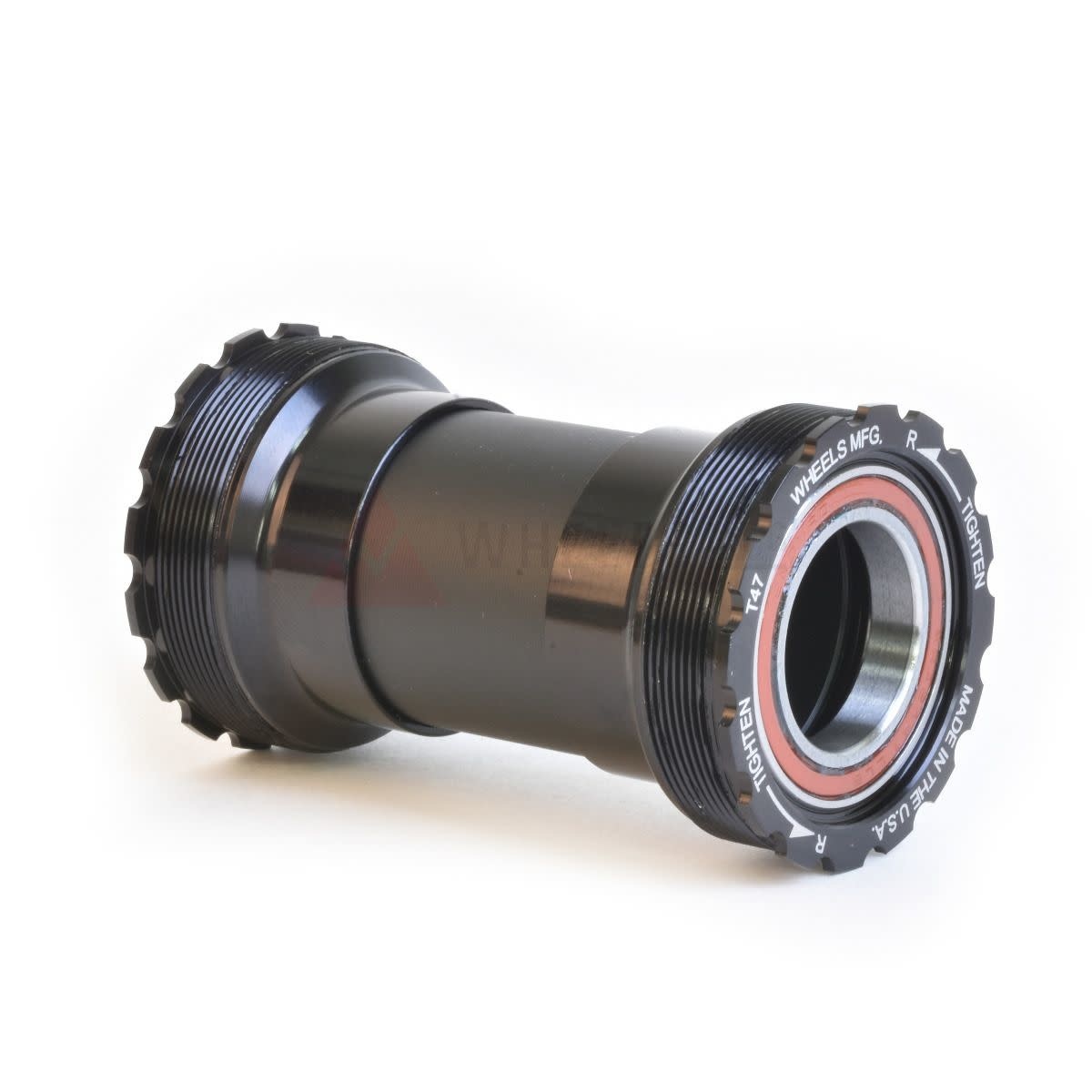

T47 Angular Contact BB for 24/22mm (SRAM) Cranks - Black
T47 threaded BB cups for T47 frames and 22/24mm spindle diameter SRAM GXP cranks. Cups have internal bearings, and are typically used in BB shells with widths wider than 73mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.

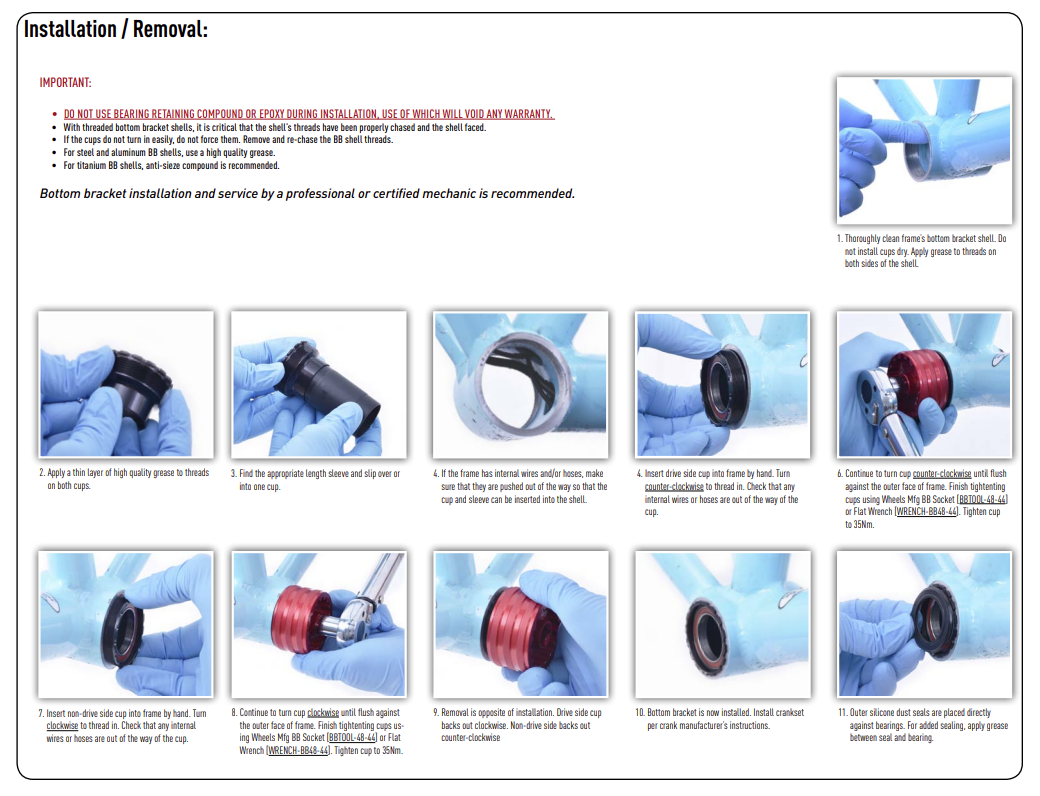

T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.

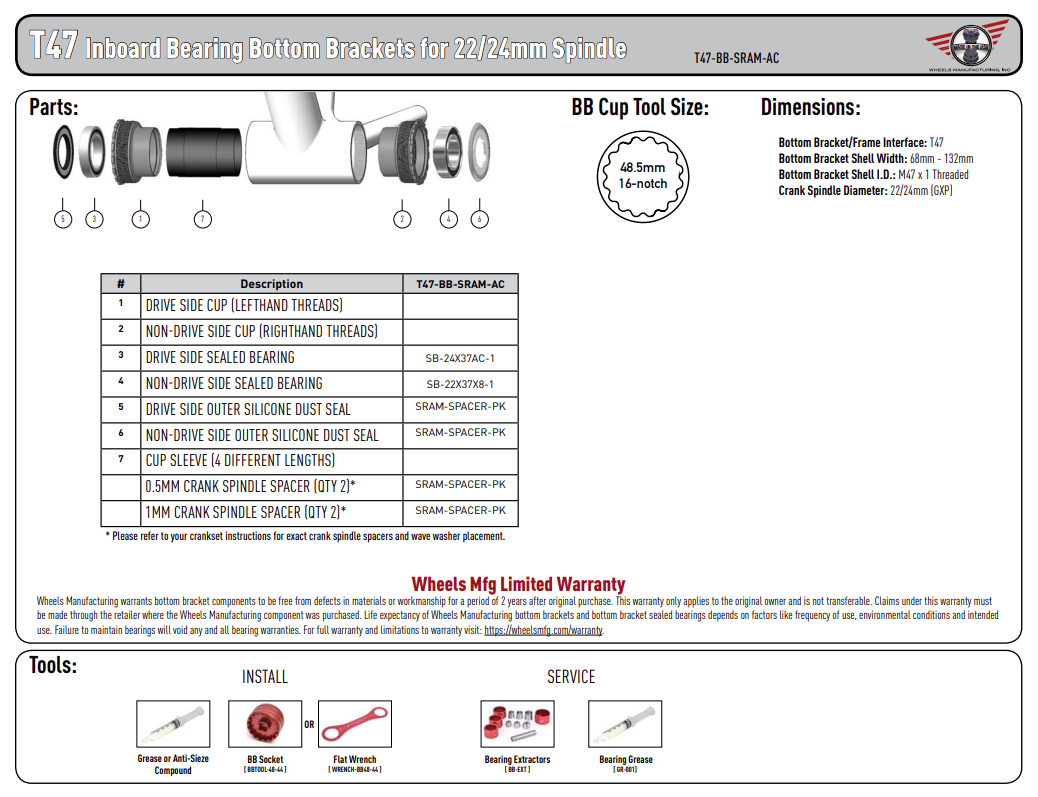

Bottom Bracket Includes:
- BB Cups with bearings
- 2 - Silicone dust seals
- 2 - 0.5mm crank spindle spacers
- 2 - 1.0mm crank spindle spacers
- 1 - 24mm ID wave washer
- Drive Side Bearing: Enduro Angular Contact
- Non Drive Side Bearing: Enduro ABEC-3
- Color: Black
- Bottom Bracket/Frame Interface: T47
- Bottom Bracket Shell Width (mm): 68mm - 132mm
- Bottom Bracket Shell I.D.: 47x1.0mm Threaded
- Crank Spindle Diameter: 22/24mm
- Over Bearing Width: 91.7mm in 86.5mm wide shell*
- Tool Pattern: 48.5mm x 16-notch
- Weight: 129g
* Over Bearing Width Dimensions include supplied silicone dust shields.
Compatible with the following Bottom Bracket Standards (47x1.0mm Threaded BB shell):
- T47
Compatible with 22/24mm stepped spindle diameter cranksets, like SRAM & Truvativ GXP.
*Note:
- If used with Quarq powermeters, please see our Compatibility Issues page for known issues.
- (BBTOOL-48-44) Wheels Mfg BB Socket
- (WRENCH-BB48-44) Wheels Mfg Double End BB Wrench, 16-notch BB tool - 48.5 / 44mm
| Brand | Wheels Manufacturing |
| Article code | 1948 |
| SKU | T47-BB-SRAM-AC |
